SONOFF Orb-ZBW1 Zigbee Smart Wall Switch | ZBMINIR2-E
Tax included. Shipping calculated at checkout
【Smart Automation & High Load Control】Supports up to 10A load and enables remote control, scheduling, and advanced automation via app. Works with motion and door/window sensors to create intelligent scenes
Technical details, troubleshooting or setup tips? Access the Orb-ZBW1 knowledge center for all the info you need.
SONOFF Orb-ZBW1 Zigbee Smart Wall Switch | ZBMINIR2-E
Sale price$18.90

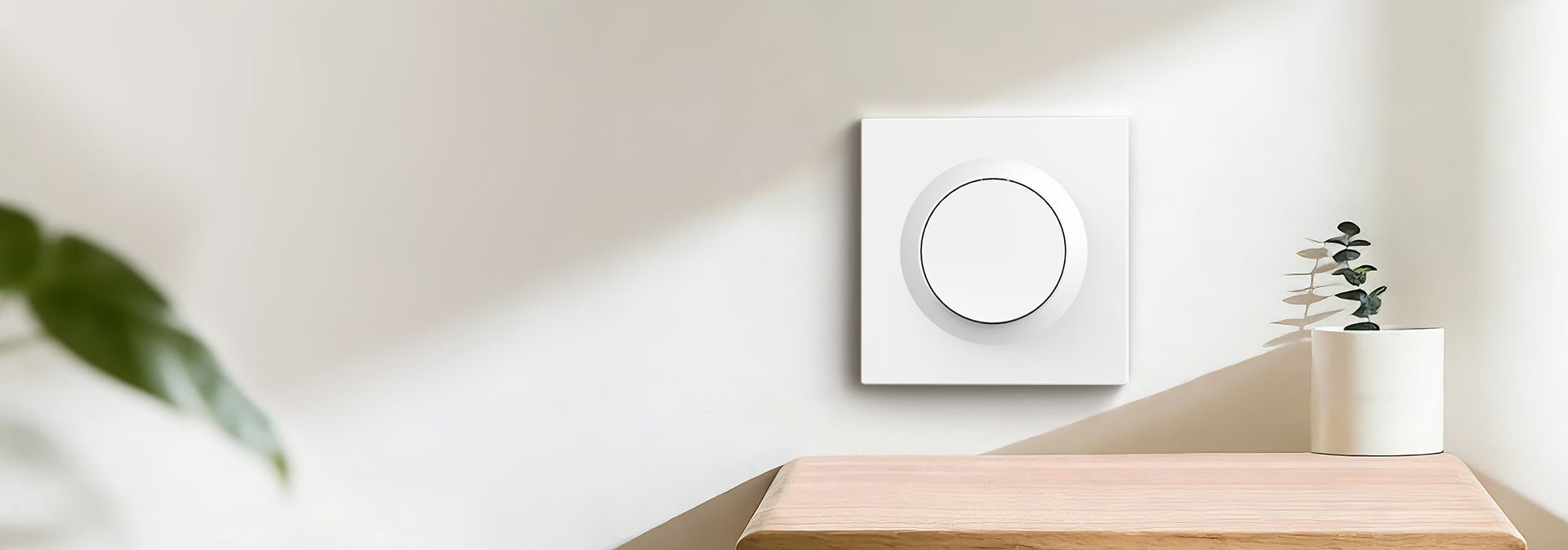

1-Gang Wall Switch — Orb-ZBW1
Compact Design,
Fits More Installation Spaces!
Matter or Zigbee? Choose to Fit Your Needs!
*Use with SONOFF Fusion Series Switch Frame (sold separately).

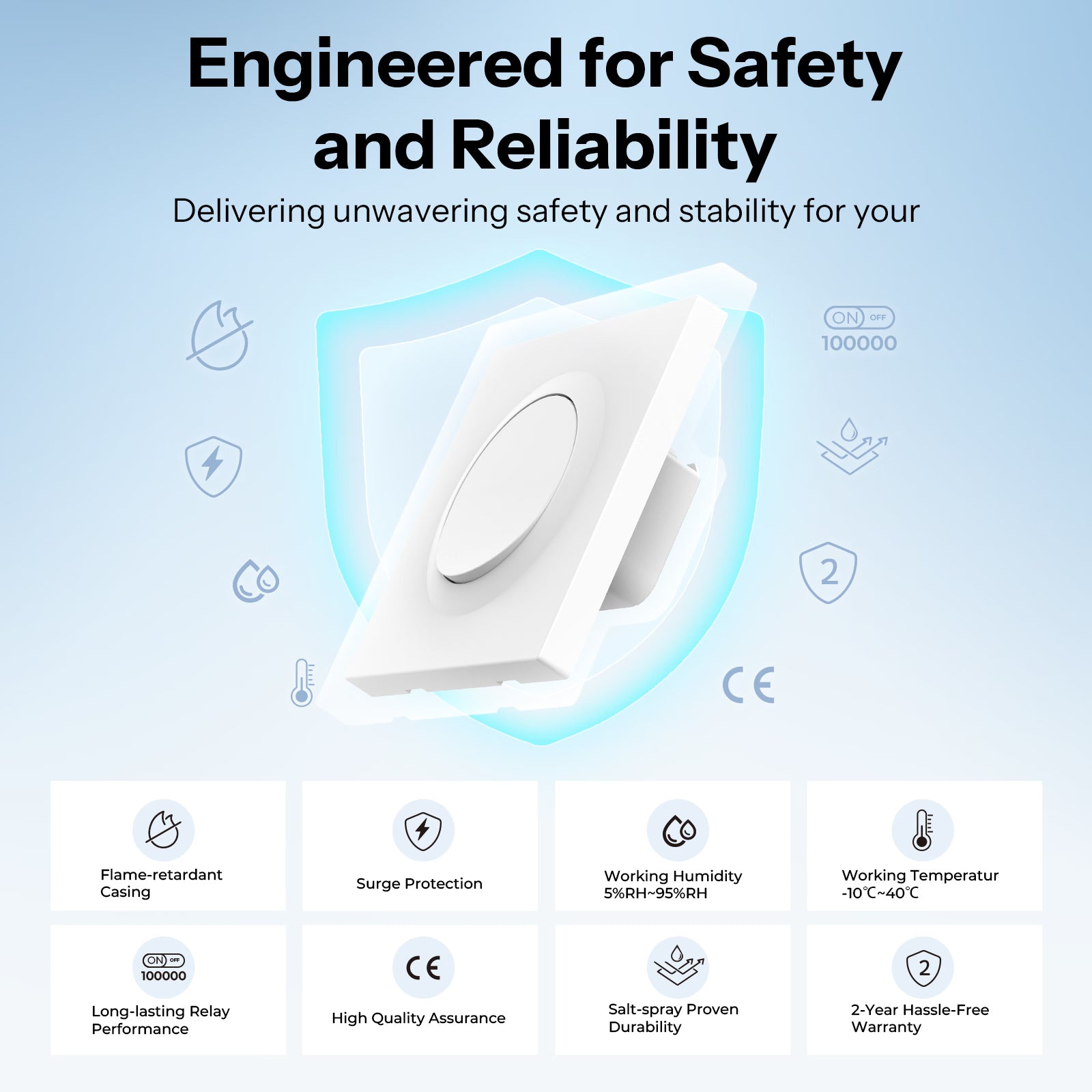

Engineered for Safety and Reliability
Delivering unwavering safety and stability for your smart home.

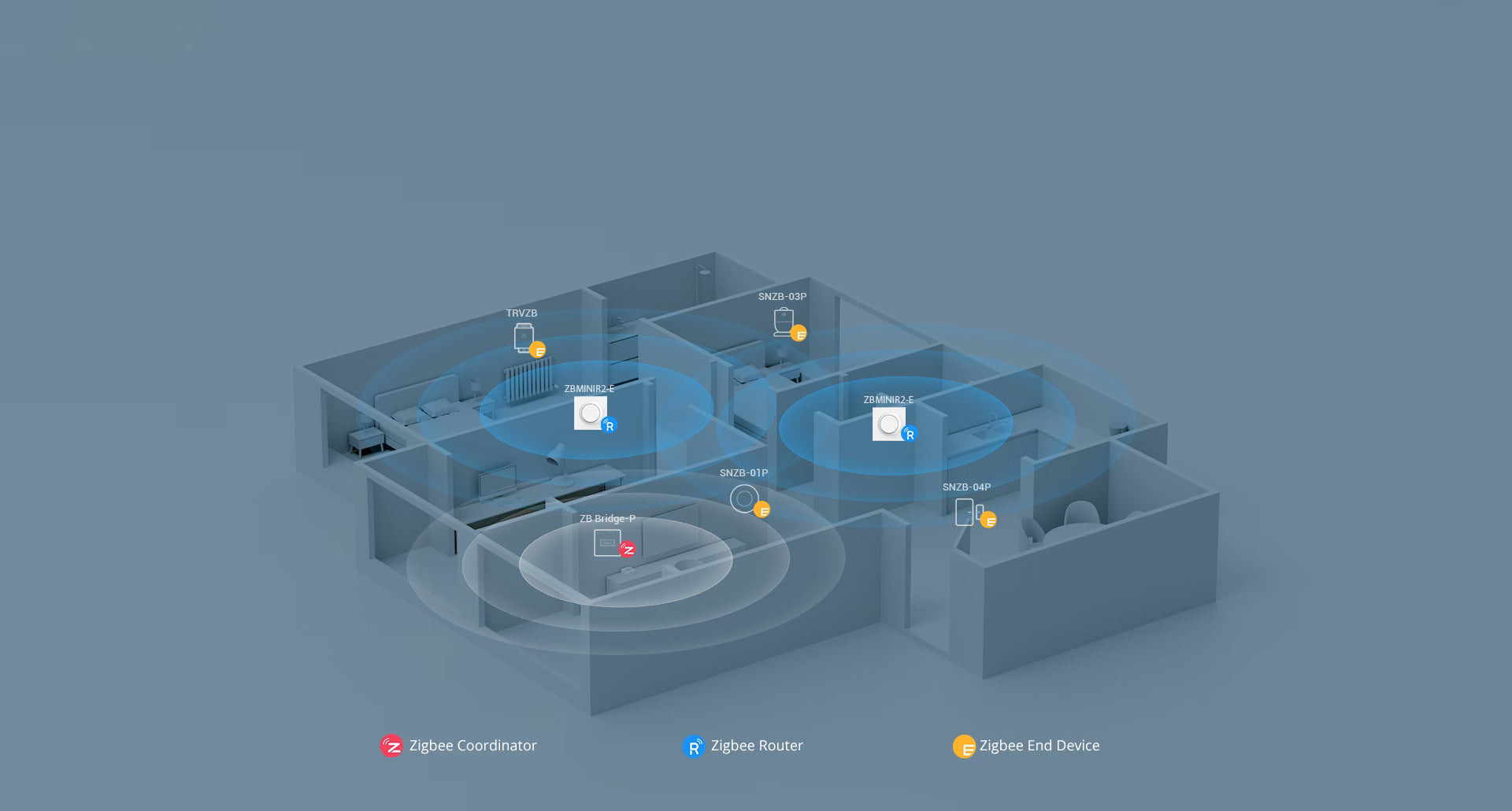

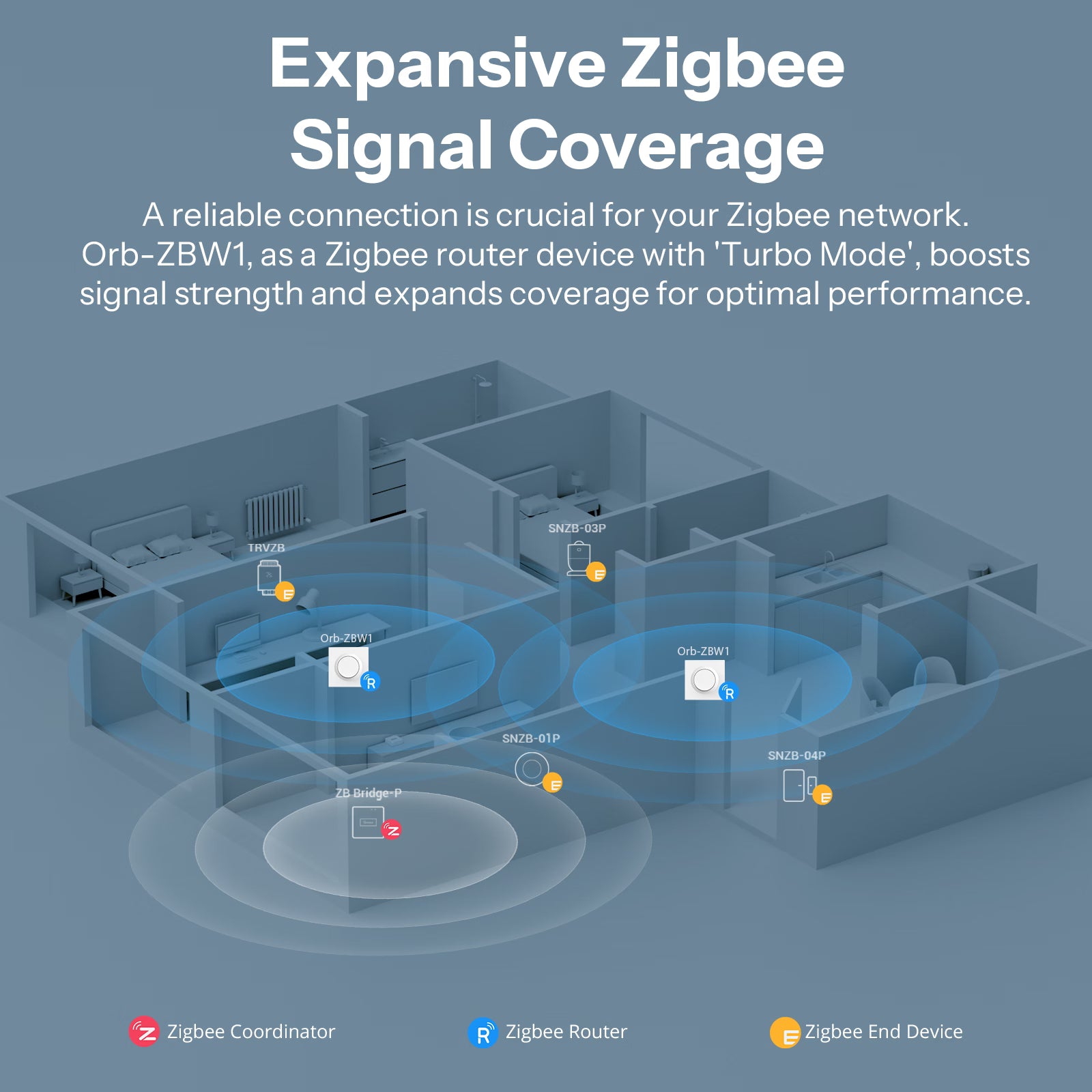

Expansive Zigbee Signal Coverage
A reliable connection is crucial for your Zigbee network. Orb-ZBW1, as a Zigbee router device with 'Turbo Mode', boosts signal strength and expands coverage for optimal performance.

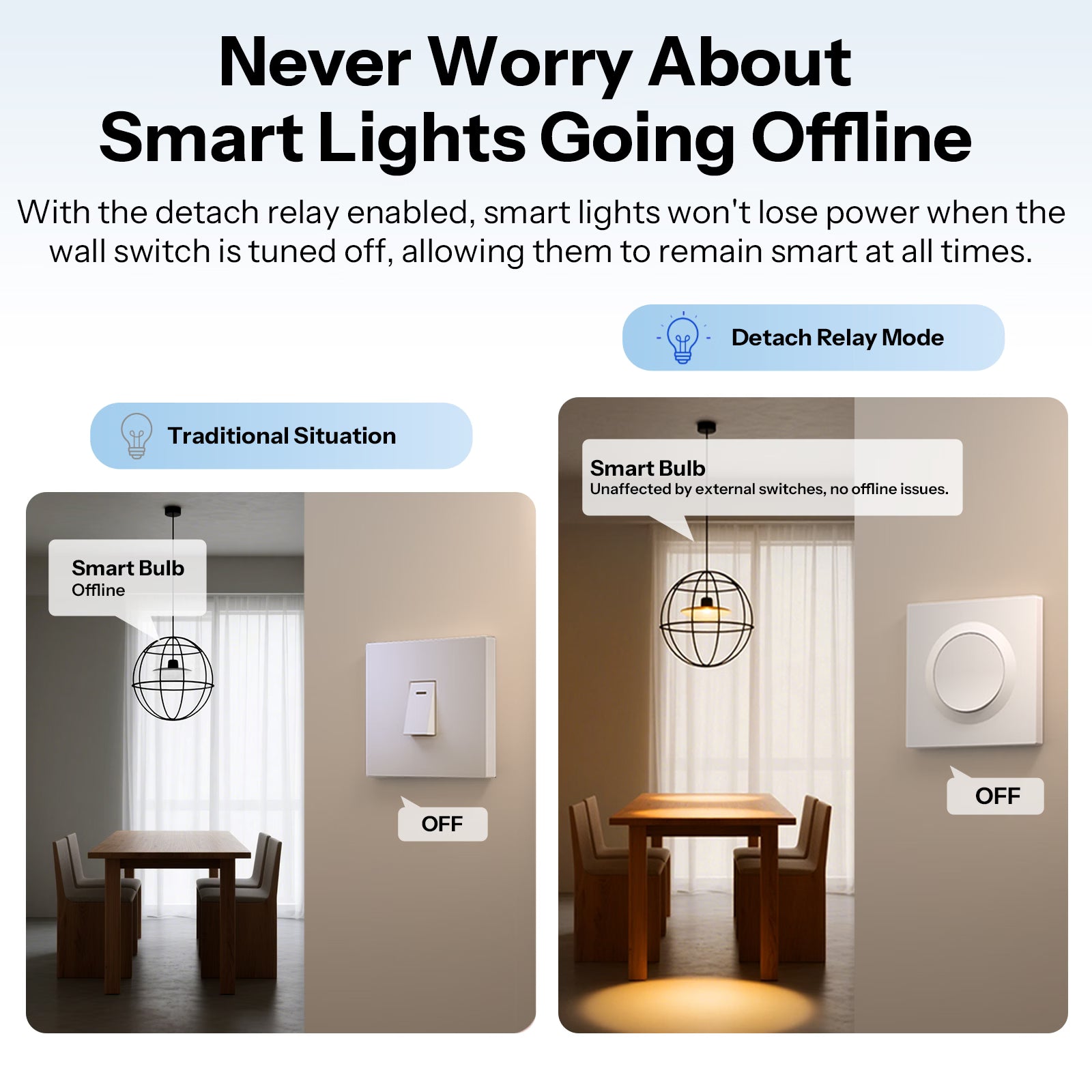

Never Worry About Smart Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times.
Multiple Possibilities
Turn on/off your appliances automatically.
Free your hands and control devices with one command.
Make your life smarter and simpler
with smart scenes.
Turn on/off your appliances automatically.
Free your hands and control devices with one command.
Make your life smarter and simpler
with smart scenes.

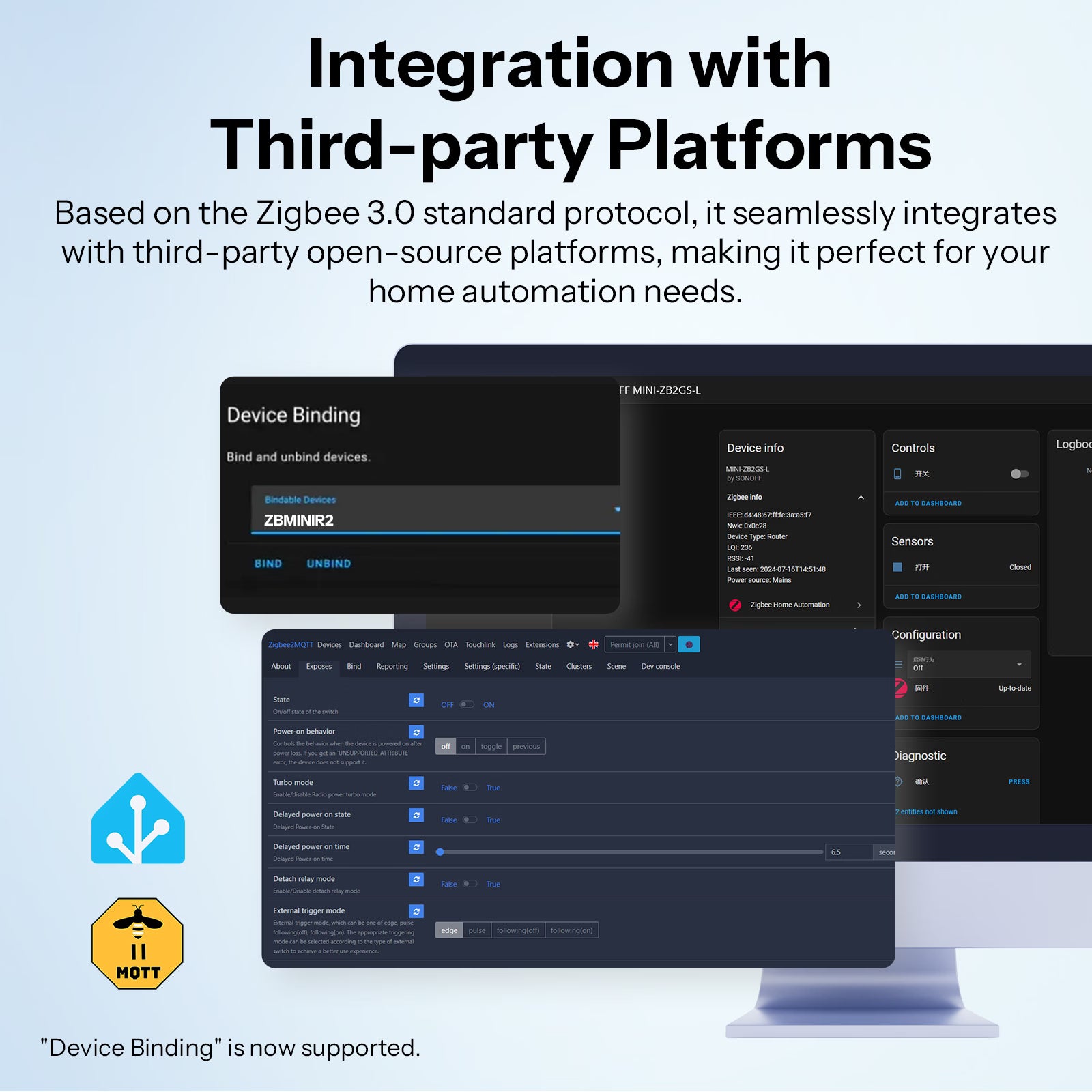

Integration with
Third-party Platforms
Based on the Zigbee 3.0 standard protocol, it seamlessly integrates with third-party open-source platforms, making it perfect for your home automation needs.
"Device Binding" is now supported.

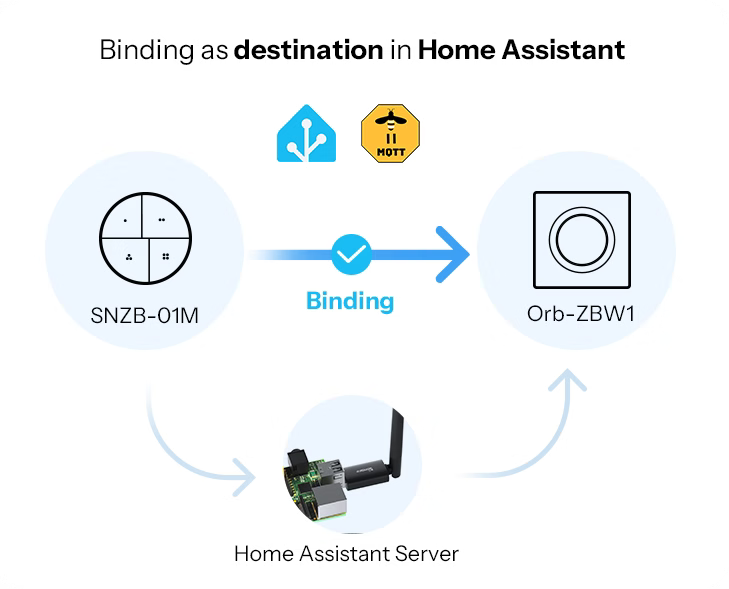

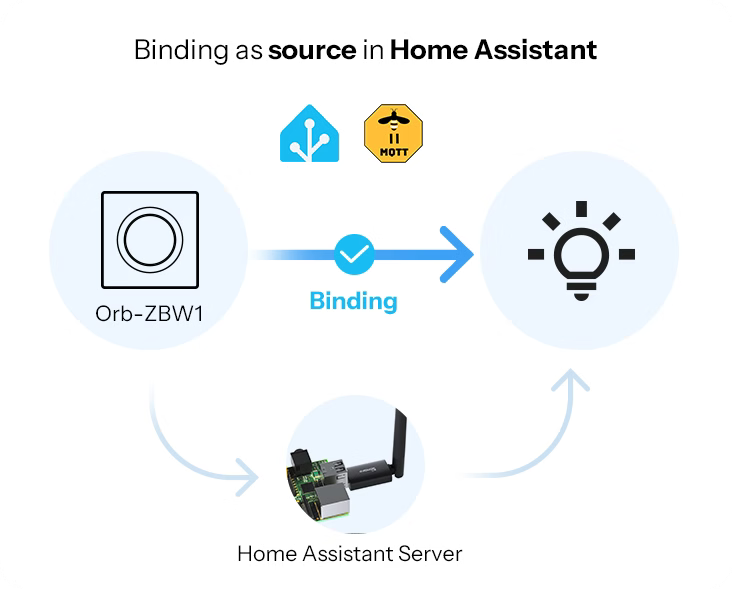

Zigbee Binding Enables Direct, Reliable Control
Set once, control directly. After a one-time setup in Home Assistant, your Orb-ZBW1 will communicate directly with other Zigbee devices, with no gateway required.
Zigbee Hub Compatibility
Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
Learn More about ZBBridge-U | Learn More about eWeLink CUBE
Fusion Series Product Comparison
Applicable Mounting Box

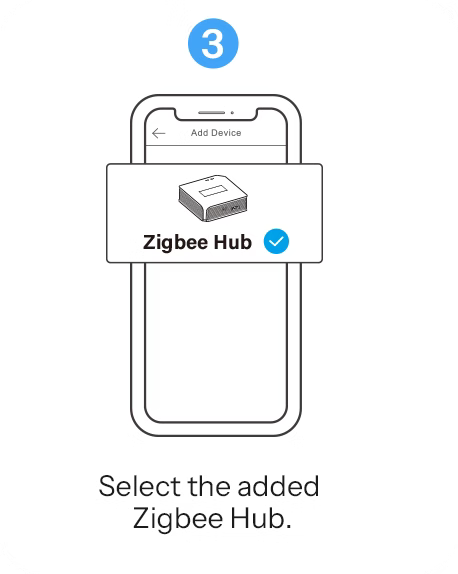

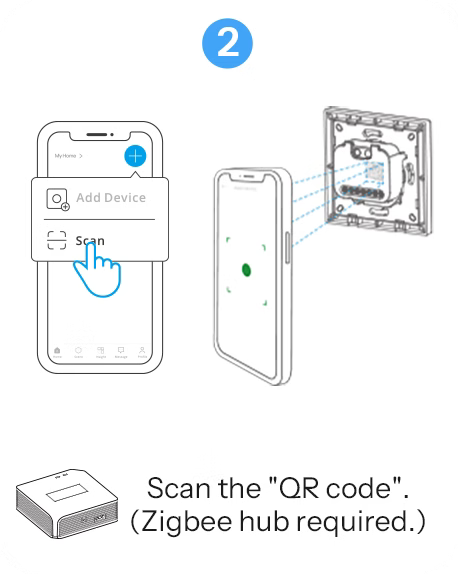

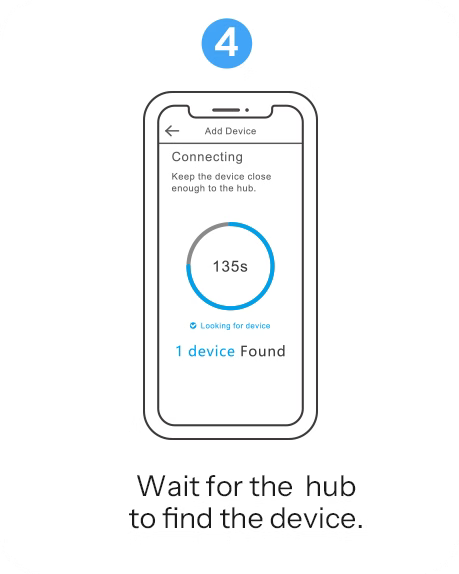

4 Steps to Use

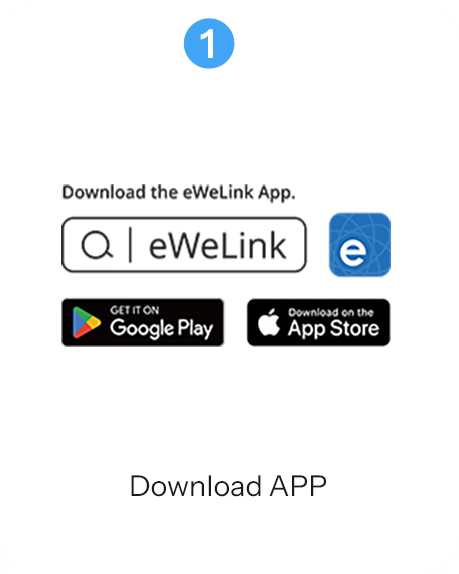

Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!
*Requires the compatible SONOFF Zigbee hub.
Wiring Instructions
Specification
Specs & User Manual
Orb-ZBW1 is a smart switch built on Zigbee 3.0, compatible with major gateway like Alexa, SmartThings, and Home Assistant for seamless cross-brand integration. With Zigbee Binding, it enables direct device control even when the gateway is offline. It can also act as an optional Zigbee router to extend network coverage and eliminate dead zones. Featuring a compact 21mm in-wall design and EU standard box compatibility, it supports 10A load with flexible app control, scheduling, and smart automation for everyday convenience.
User Manual (PDF)Product name
Orb-ZBW1
Product series
Fusion series
Model
ZBMINIR2-E
MCU
EFR32MG21
Rated specifications
100-240V~ 50/60Hz 10A MAX Resistive load
Product dimension
86x86x34mm
Working temperature
-10~40℃
Working humidity
5%~95% RH, non-condensing
Casing material
PC
Certification
CE/RoHS
FAQ
1. Does Orb-ZBW1 require a neutral wire?
Yes. Orb-ZBW1 requires a neutral wire for proper installation and operation.
If your home uses a no-neutral-wire setup, you may want to take a look at our Zigbee smart wall switches designed for non-neutral wiring environments.
2. What type of junction box is the Orb-ZBW1 compatible with?
Compatible with standard 86-type mounting boxes and European round mounting boxes (Ø 60 mm).
3. Can it work as a Zigbee repeater?
Yes. Orb-ZBW1 has built-in Zigbee router functionality, which strengthens and extends Zigbee network coverage.
4. What is the maximum load capacity of Orb-ZBW1?
The device supports a maximum load of 10A or approximately 2400W (at 240V). For safety, avoid exceeding this limit.
5. What is Binding?
"Binding" is a technology that enables two or more Zigbee devices to establish direct communication, allowing interaction without requiring a gateway as an intermediary. The Binding feature must be configured within Home Assistant.
6. Can I use it without the internet?
Yes. As long as the Orb-ZBW1 is connected to your Zigbee gateway, you can control it locally without internet access. However, cloud services and remote access require the internet.
