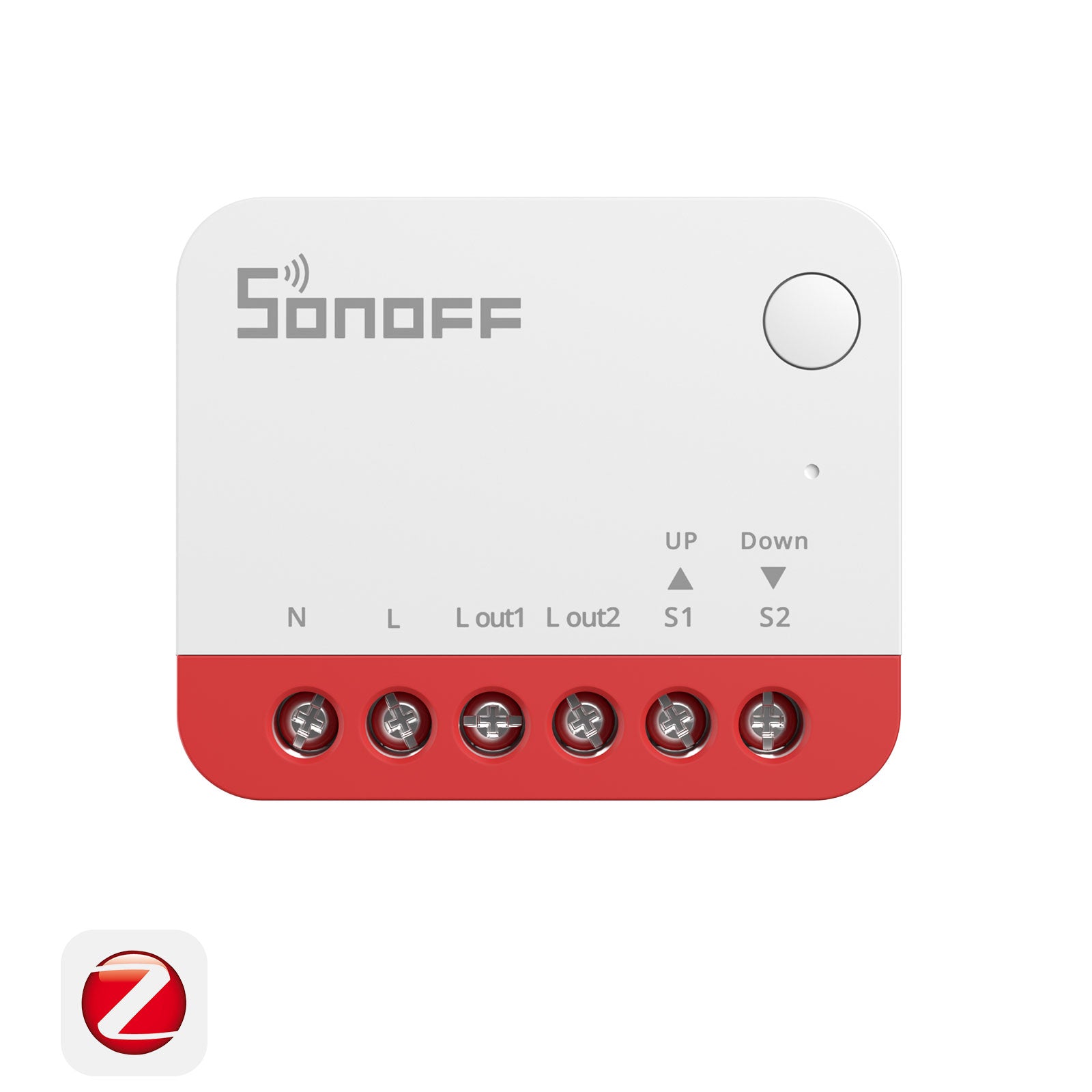

SONOFF Zigbee Smart Roller Shutter Switch | MINI-ZBRBS
Tax excluded. Shipping calculated at checkout
【Mini Size】This product is compact and perfectly compatible with various small-sized wall-mounted junction boxes, including the European standard 60/80 junction box.
【Precise Percentage Adjustment】Control indoor lighting according to your needs, enhancing comfort and energy efficiency while adapting flexibly to different scenarios.
【Zigbee Signal Booster】MINI-ZBRBS acts as a Zigbee router device, which helps extend your Zigbee network. Enjoy a stronger signal and improved reliability across your entire smart home.
【Zigbee Local Scene】Once configured via your Zigbee hub, scenes are executed locally within your home network, ensuring immediate response even when your internet is offline.
【Calibration of Curtain Operation】Reduce hardware inaccuracies and extend the lifespan of your smart curtains.
Technical details, troubleshooting or setup tips? Access the MINI-ZBRBS knowledge center for all the info you need.
Smart Curtain Upgrade Starts Here
SONOFF Zigbee Smart Roller Shutter Switch
Motorized Control for Various Shade Types
Size That Matters, Fits in Virtually Any Mounting Box
MINI-ZBRBS boasts an ultra-slim and compact design that allows it to fit into almost any standard mounting or wall box, yet it is powerful enough to upgrade your curtain system to smart control without adding clutter.
Precise Percentage Control, Open Exactly How You Like
With support for percentage-based positioning, you can customize the exact opening level to match your mood, schedule, or environment.
Motor Travel Calibration, Precise Curtain Positioning
Let your curtains stop exactly where you want — no more over-pulling or stopping halfway. With smart travel calibration, the system learns your curtain's full range, so every open or close is smooth, accurate, and just right. Set it once, and enjoy hands-free perfection every day.
Instant & Local Automation
Unlock reliable automation with Zigbee local scenes. Once configured via your Zigbee hub, scenes are executed locally within your home network, ensuring immediate response even when your internet is offline.

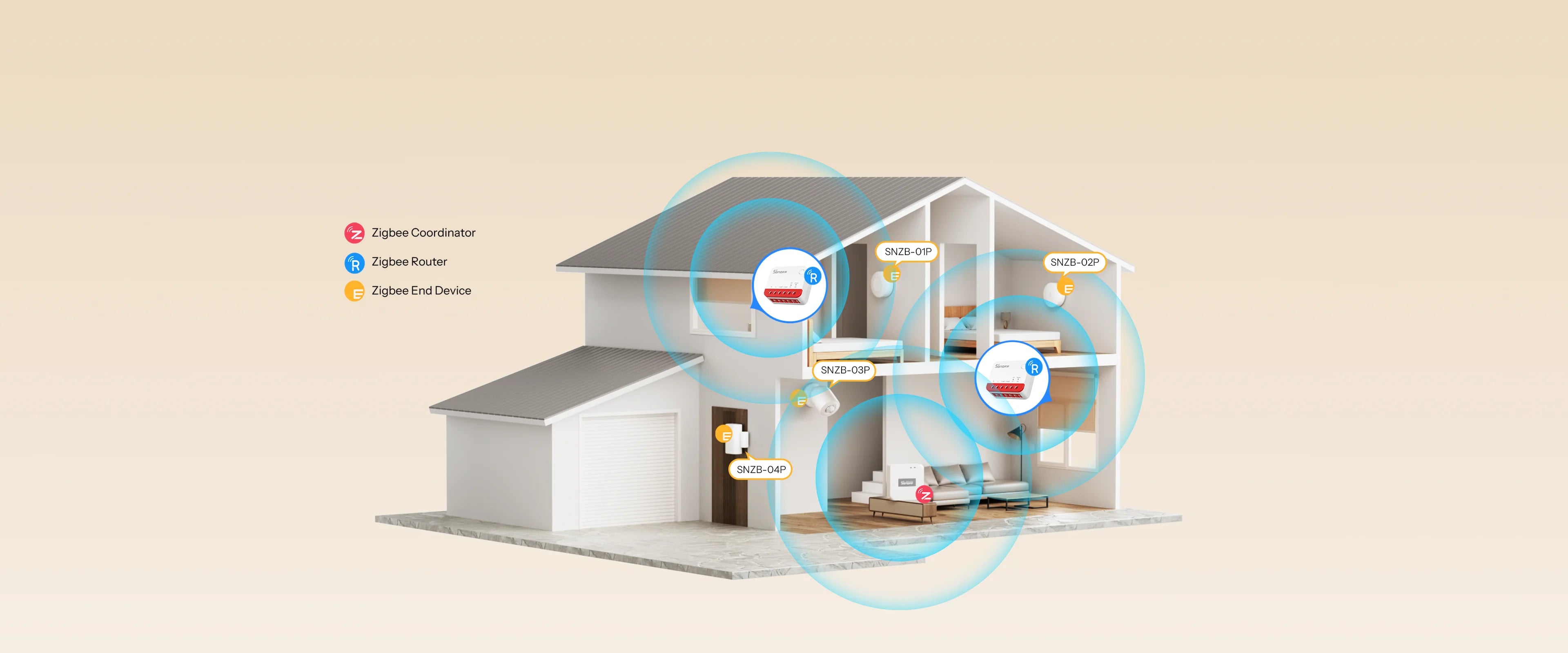

Strengthen Your Zigbee Mesh Network
More than just a curtain controller, MINI-ZBRBS also acts as a Zigbee Router, helping to relay and extend Zigbee signals across your smart home.

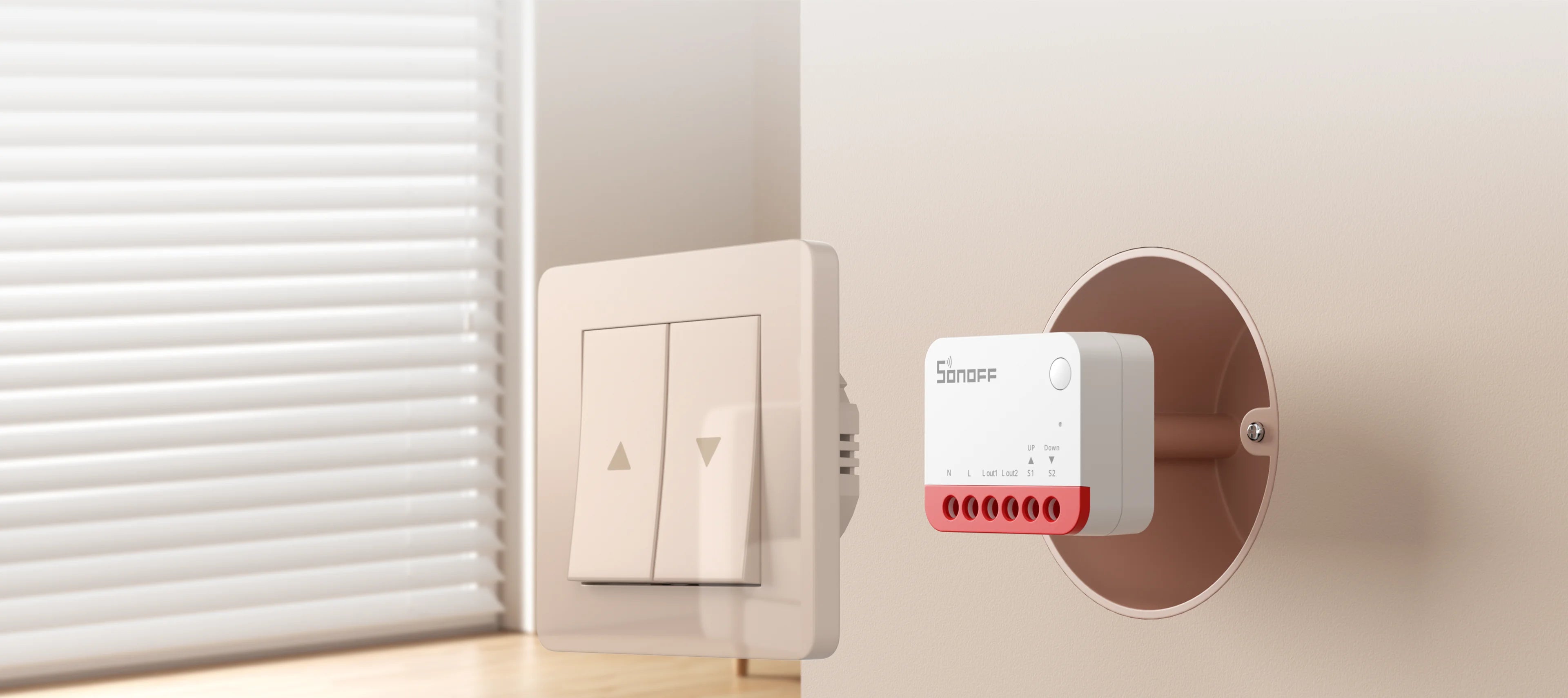

Manual Switch Support, Always in Control
Enjoy the best of both worlds: smart automation and physical control. It supports connection to traditional wall switches, so you can still manually open or close your curtains with the press of a button.
Integration with Third-party Platforms
Enjoy a truly connected smart home experience. It can seamlessly integrate with popular third-party platforms like Home Assistant, allowing you to centralize control and build a flexible, scalable ecosystem tailored to your needs.

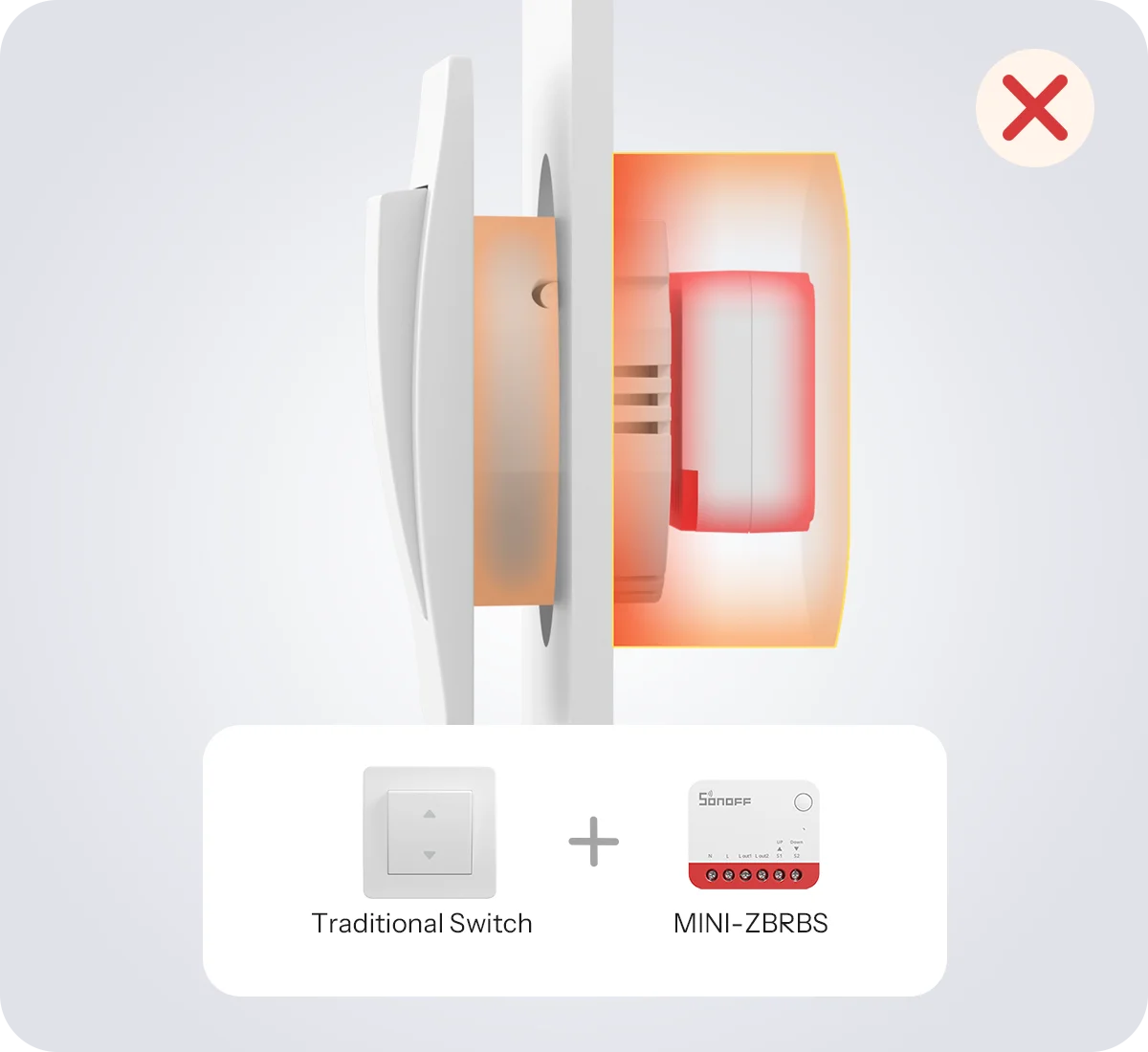

Still Struggling to Find the Right Switch?
*Note: When used with the ERBS, the depth of the wall mounting box must be greater than 30mm.

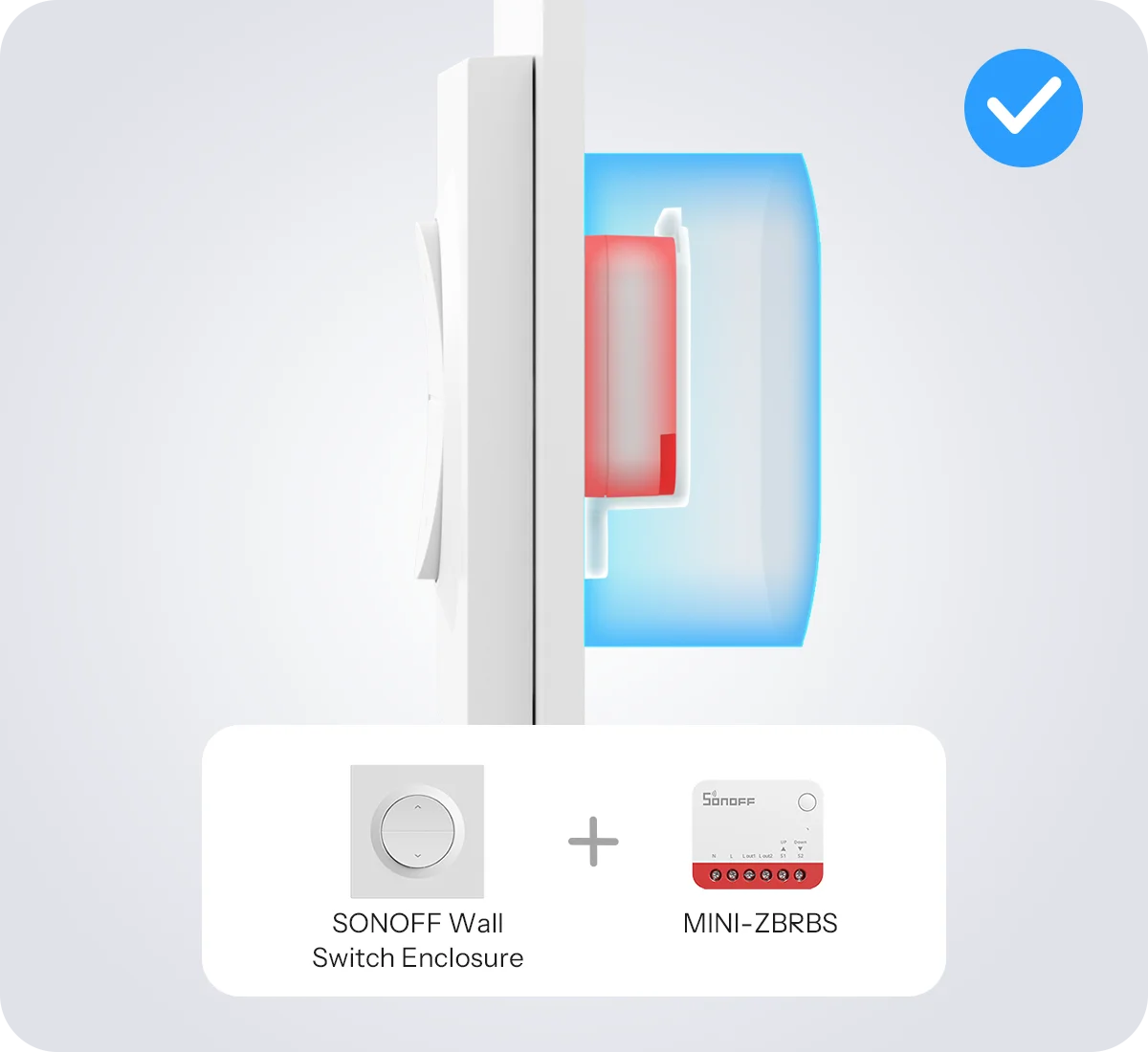

Not enough depth in the wall box?
SONOFF has designed a custom switch for the MINI-ZBRBS – the ERBS
Compatible with EU standard round mounting box for smaller space requirements!
Feature Overview

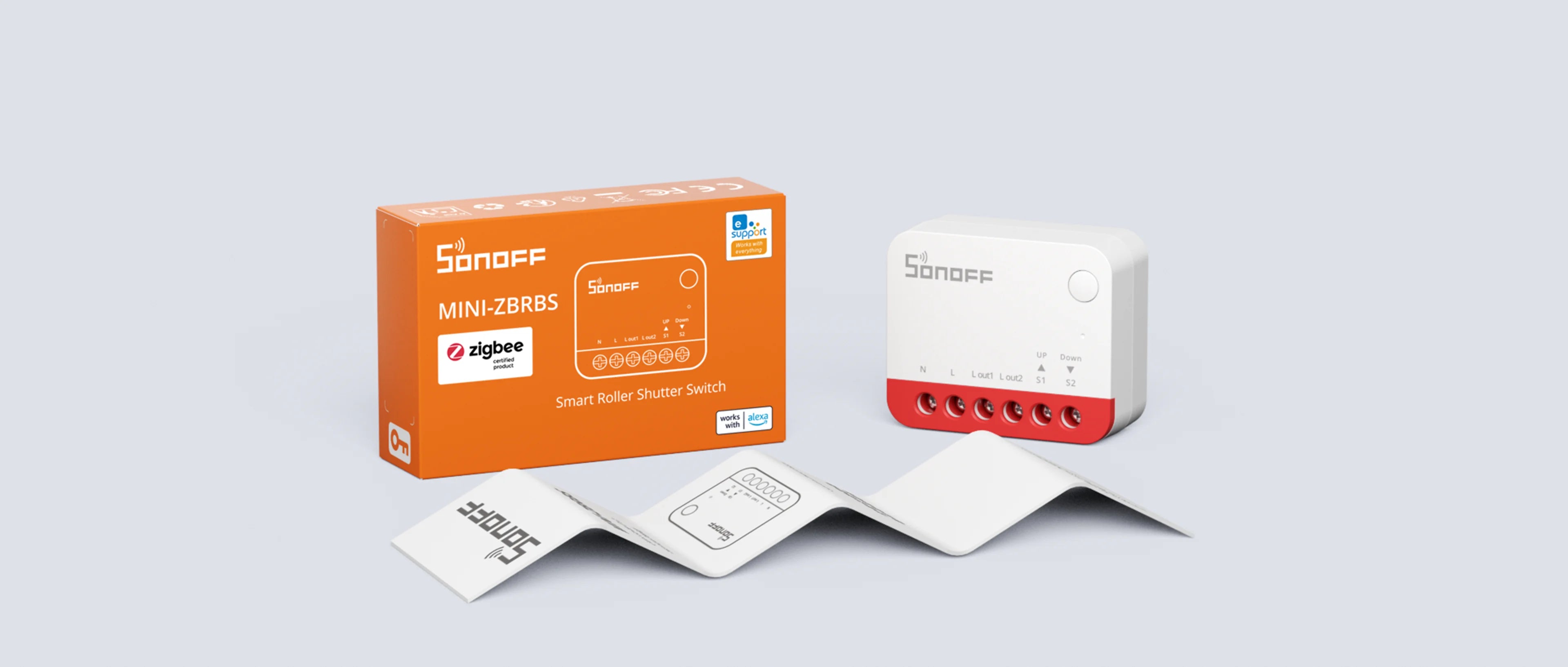

Package
Specs & User Manual
MINI-ZBRBS is a compact Zigbee smart curtain switch module designed to fit standard wall boxes, allowing you to easily upgrade a traditional motorized roller shutter into a smart curtain system. It supports motors with up to 1A load, and works with a Zigbee hub to enable app-based remote control, scheduled operation, and smart scene automation. Additionally, it functions as a Zigbee signal repeater, helping to strengthen and stabilize your Zigbee network coverage. MINI-ZBRBS combines a compact design with versatile features, making it an ideal choice for smart Zigbee curtain control.
User Manual (PDF)MINI-ZBRBS
Smart Roller Shutter Switch
EFR32MG21
100-240V~ 50/60Hz 1A Max
Zigbee 3.0
25.1g
39.5x33x16.8mm
White
PC
Indoor
-10℃~40℃
5-95%RH, non-condensing
FAQ
1. What types of curtain motors are supported by MINI-ZBRBS?

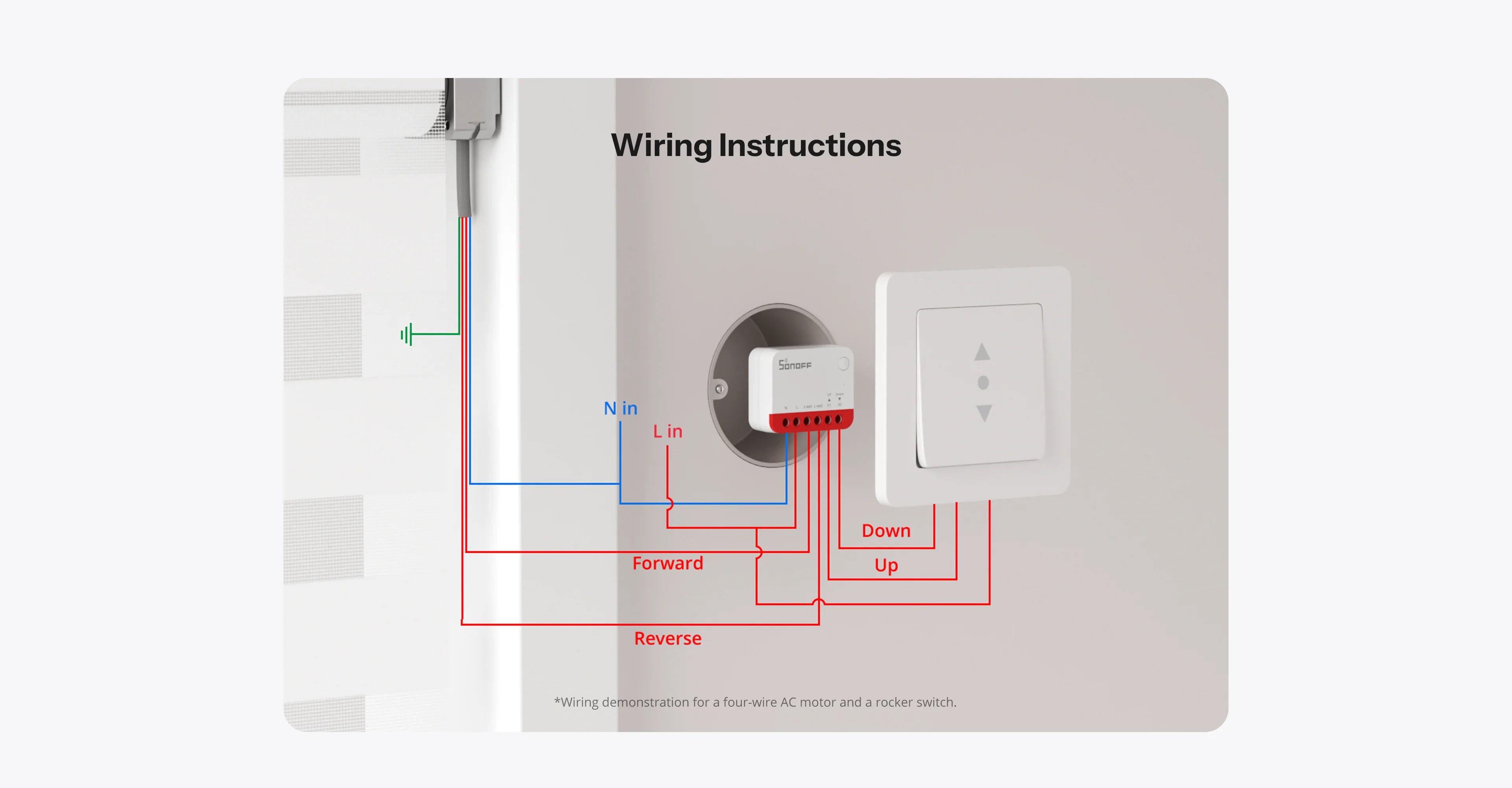

The motors supported by the device for control are general 4-wire AC motors and 5-wire AC motors (with zero wire, motor forward line, motor reverse line, and ground line), as long as the load does not exceed 1A.
2. Can I schedule the curtain to open or close at specific times?
Yes. You can create timer schedules through the eWeLink app for automatic curtain operation.
3. Do I need to modify my existing wall switch for installation?
No major modifications are needed. The compact design fits into standard wall boxes and can work with your existing mechanical switch.
4. Does the device function as a Zigbee repeater?
Yes, MINI-ZBRBS has built-in Zigbee signal repeater functionality to help improve and stabilize your Zigbee network coverage.
5. Can the motor run continuously in the same direction?
No. The motor should not operate in a single direction for more than 2 minutes. To prevent overheating and damage, the device will automatically enter a stop state after exceeding this time limit.
6. Can the device be used without connecting a "Switch"?
Yes. Whether S1/S2 are connected to an external switch or not, it does not affect automation or app control functionality.
