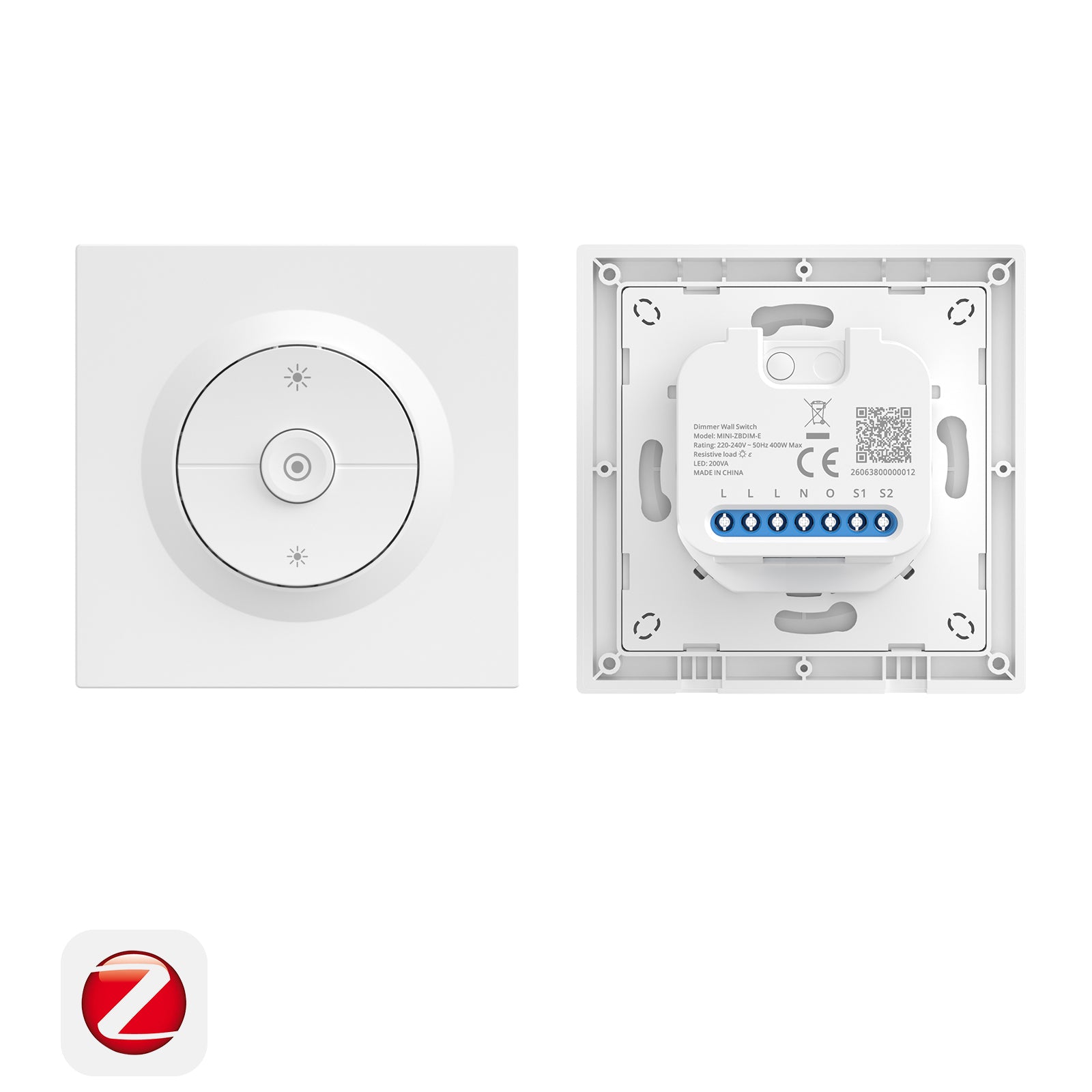

SONOFF Orb-ZBDIM Zigbee Dimmer Wall Switch | MINI-ZBDIM-E
Tax excluded. Shipping calculated at checkout
Save $10 on $99+ | Code: SOANNI10
Save $30 on $199+ | Code: SOANNI30
Save $50 on $299+ | Code: SOANNI50
【Intelligent Flicker-Free Dimming】Auto and manual calibration technology ensures compatibility with various light sources, reducing flicker and abrupt brightness changes while delivering soft, continuous dimming similar to natural lighting.
【Live Power Consumption Tracking】The power metering function provides real-time visibility into lighting power usage, enabling users to monitor performance, detect irregular consumption, and optimize energy efficiency.
【Comprehensive Electrical Safety System】Equipped with overload, overcurrent, and overheat protection, the system actively monitors electrical conditions and automatically disconnects power when abnormalities occur, ensuring stable and secure operation.
【Zigbee Signal Booster】Acts as a Zigbee router to relay signals for other Zigbee devices, extending overall network coverage and forming a stable mesh network that keeps even distant devices responsive and reliable.
Note: 220–240V only. Do not exceed or go below voltage limits.
Technical details, troubleshooting or setup tips? Access the Orb-ZBDIM knowledge center for all the info you need.
Zigbee Dimmer Wall Switch— Orb-ZBDIM
Smart Dimming,
Smart Living
Matter or Zigbee? Choose to Fit Your Needs!

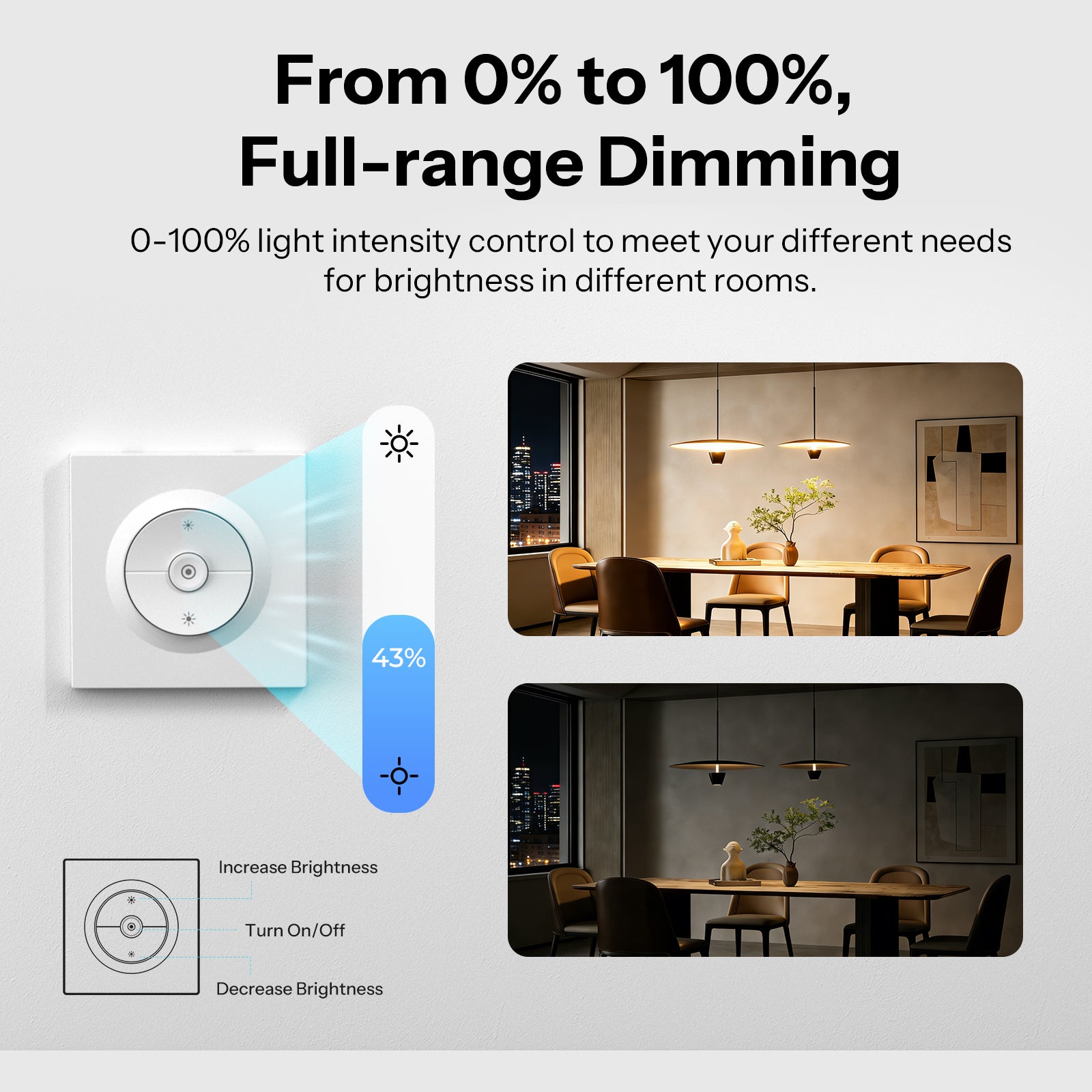

From 0% to 100%, Full-range Dimming
0-100% light intensity control to meet your different needs for brightness in different rooms.

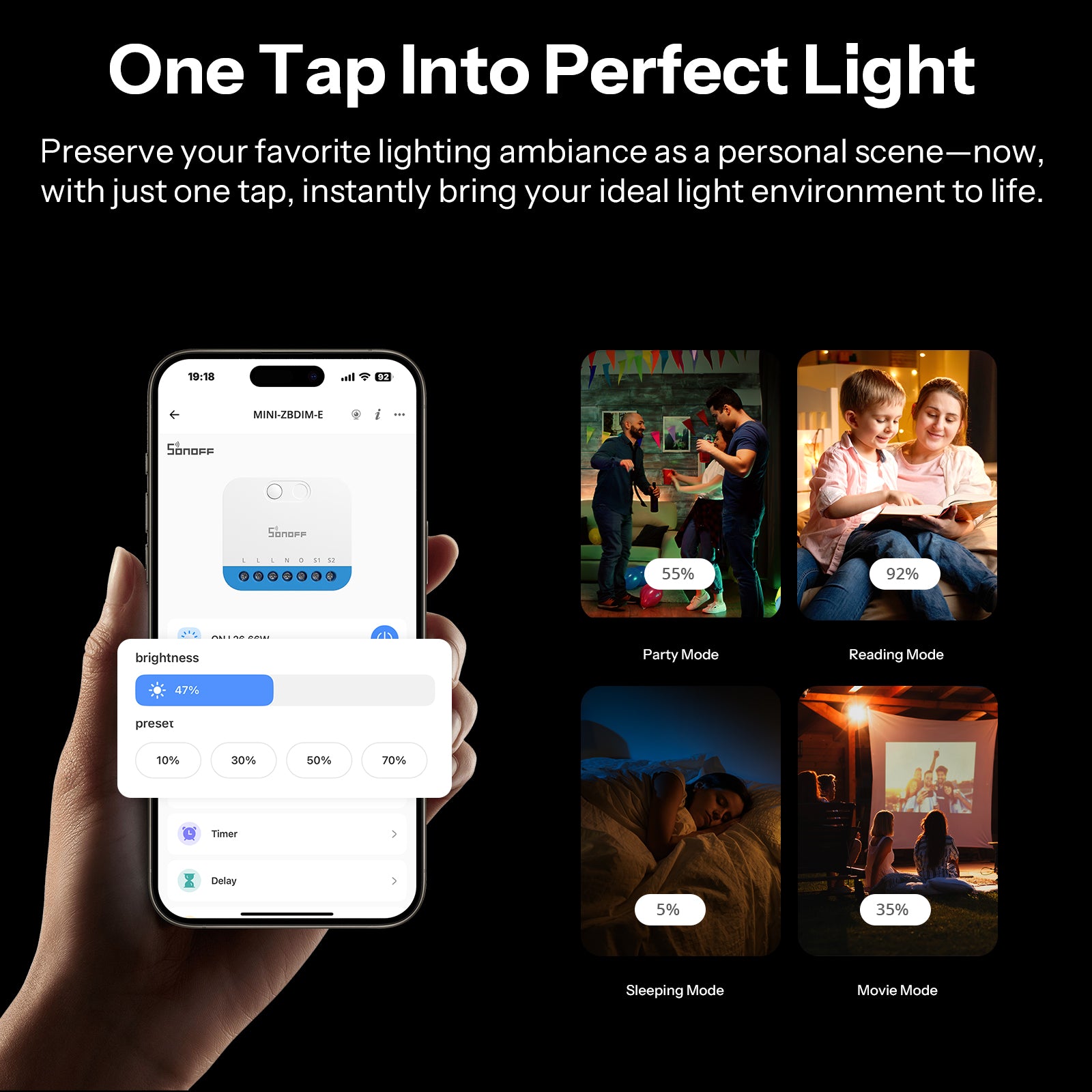

One Tap Into Perfect Light
Preserve your favorite lighting ambiance as a personal scene—now, with just one tap, instantly bring your ideal light environment to life.
See Your Savings while Dimming
Orb-ZBDIM not only supports dimming but also visualizes the energy consumption of your fixtures in real time, empowering you to monitor device status while accurately tracking your energy-saving impact.

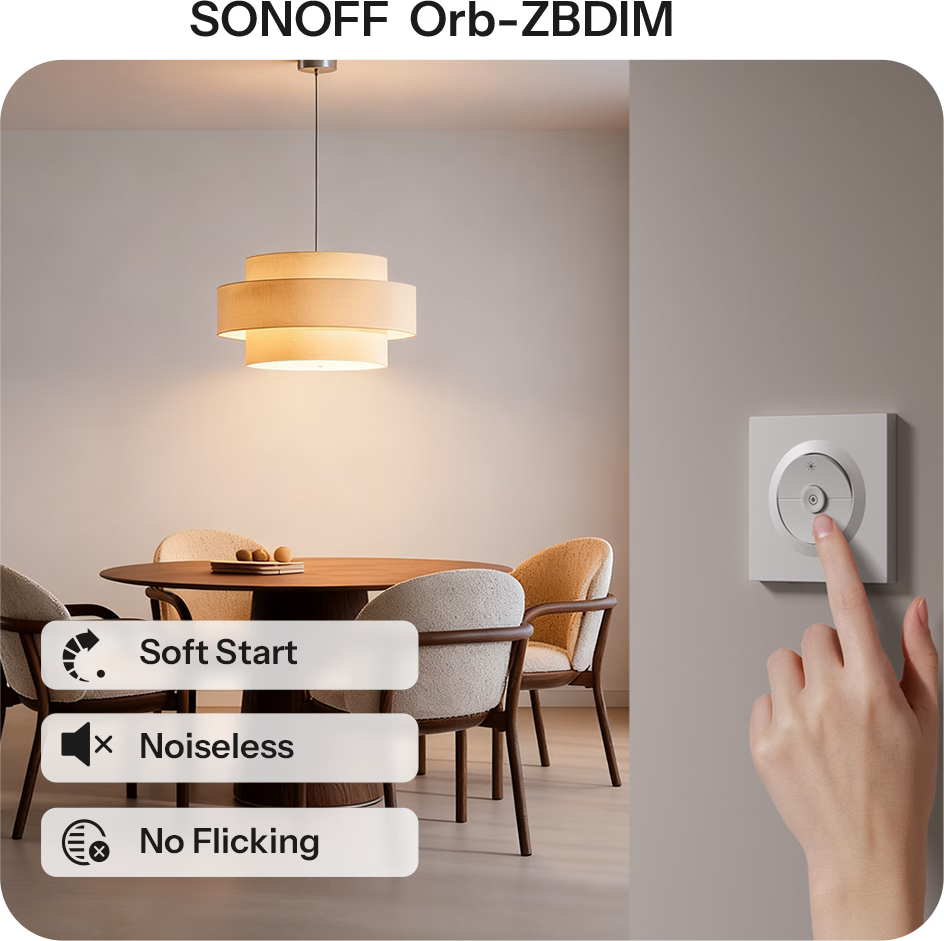

Effortless Dimming Control Experience
Our dimmers employ "Leading-edge Dimming" and "Trailing-edge Dimming" technologies. While supporting the renovation of old lighting fixtures, it can also smoothly control the brightness of LED lamps.
*Note: The leading-edge dimming mode of Orb-ZBDIM only supports legacy fixtures under 100W (e.g., incandescent and halogen bulbs).
Engineered for Safety and Reliability

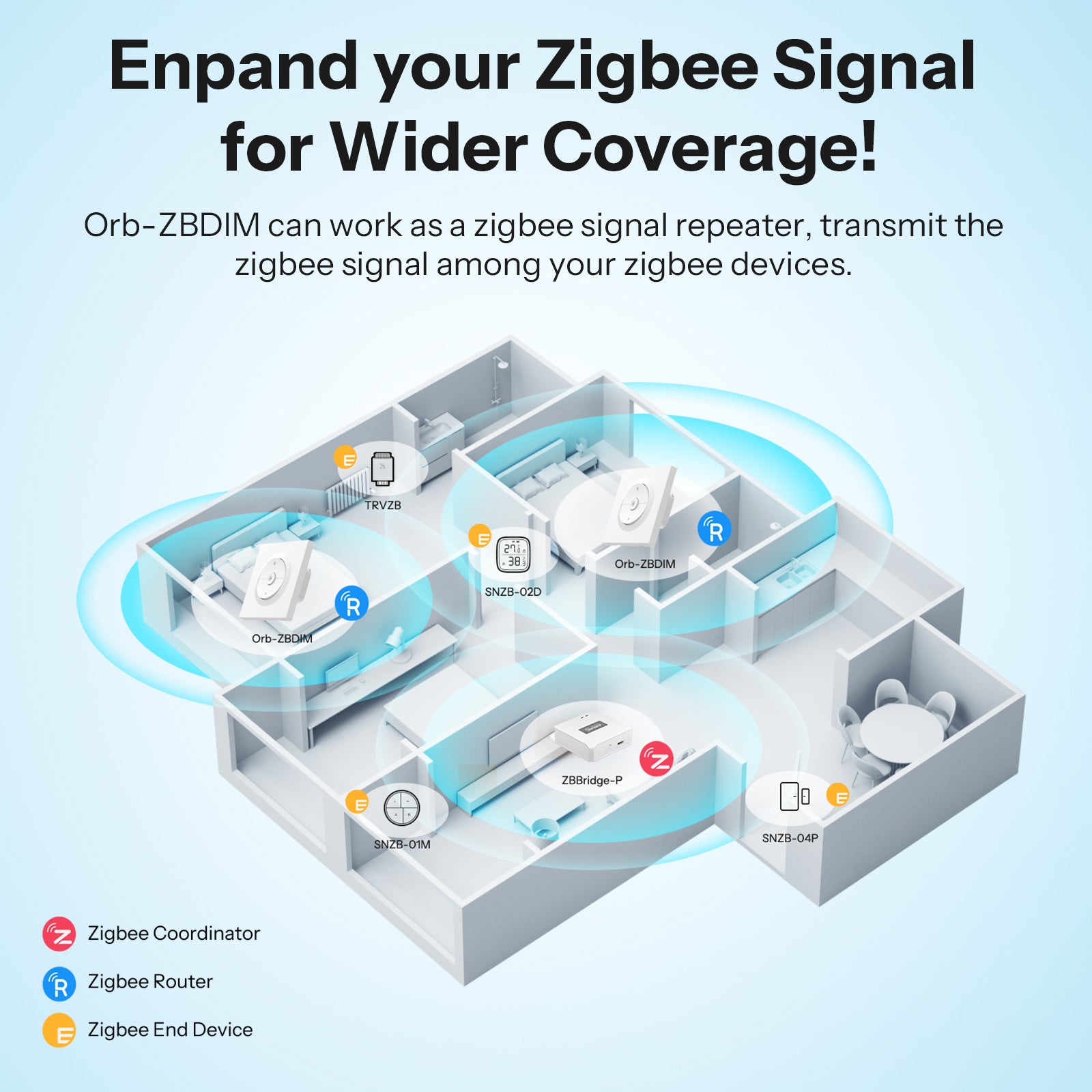

Enpand your Zigbee Signal for Wider Coverage!
Orb-ZBDIM can work as a zigbee signal repeater, transmit the zigbee signal among your zigbee devices.
Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
NOTE：Click ZBBridge-U Learn More | Click eWeLink CUBE Learn More

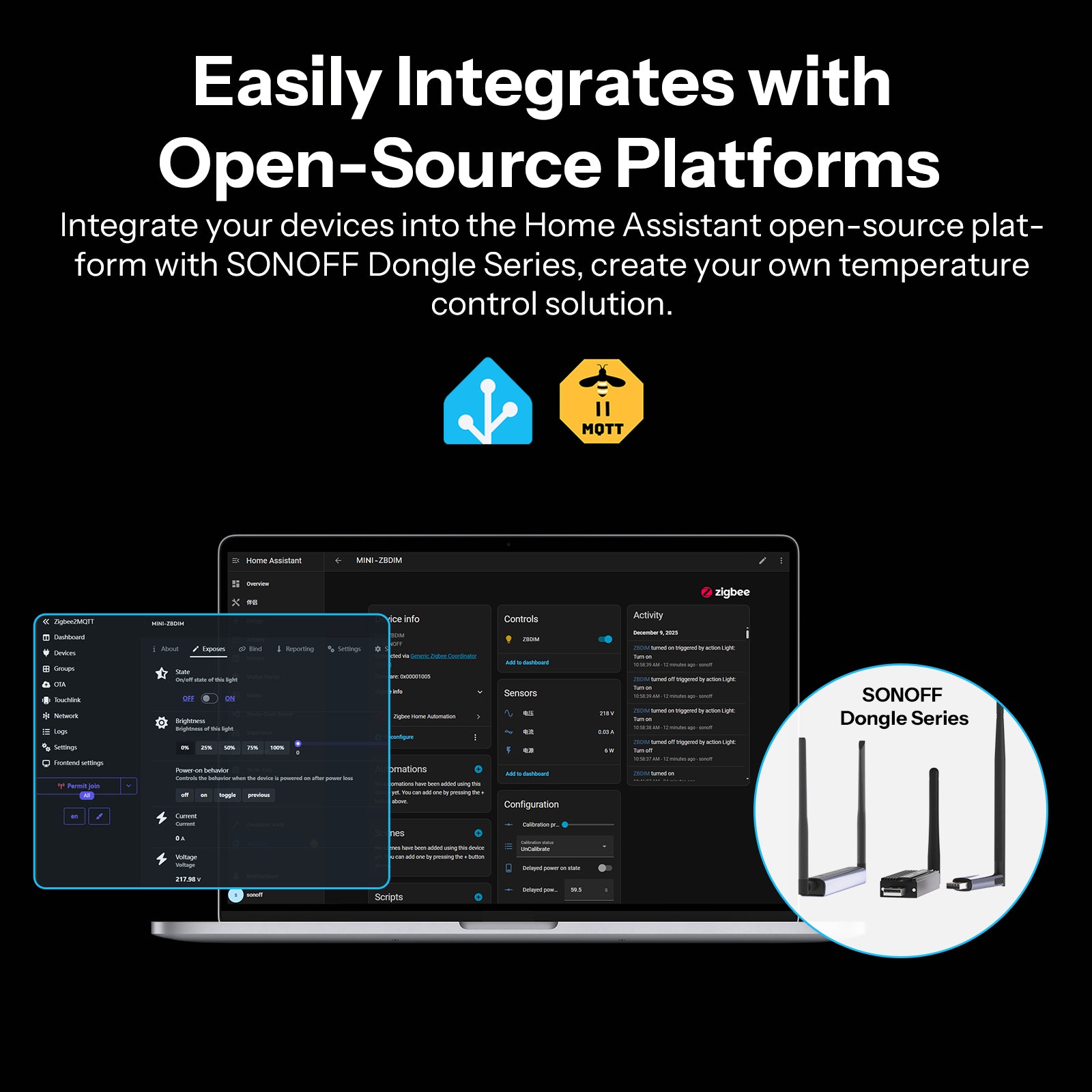

Easily Integrates with Open-Source Platforms
Integrate your devices into the Home Assistant open-source platform with SONOFF Dongle Series, create your own light control solution.
Use Extension
Use 3D-printed SONOFF sensor accessories to upgrade your wall switch into a smart control center.
Tap to get the accessory's 3D models >
*The magnet is required when used with certain sensors.
*The magnet is required when used with certain sensors.
*The magnet is required when used with certain sensors.
*The magnet is required when used with certain sensors.
Use open-source 3D-printed accessories
to pair with sockets from other brands.
*The magnet is required when used with certain sensors.
*The magnet is required when used with certain sensors.
*The magnet is required when used with certain sensors.
*The magnet is required when used with certain sensors.
Use open-source 3D-printed accessories
to pair with sockets from other brands.

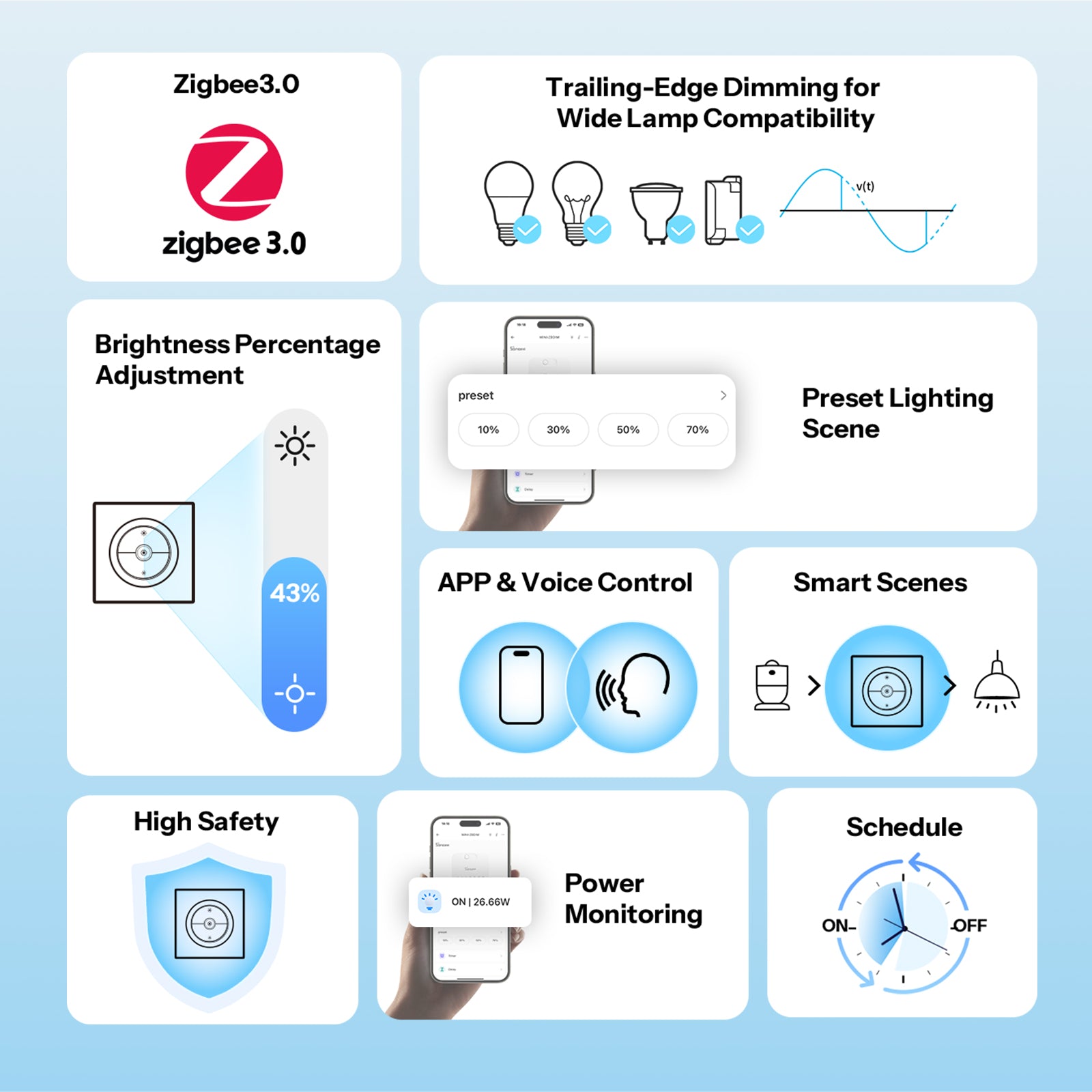

Feature Overview
Choose Your Dimmer
Applicable Mounting Box
4 Steps to Use
Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!
*Requires the compatible SONOFF Zigbee hub.
Wiring Instructions

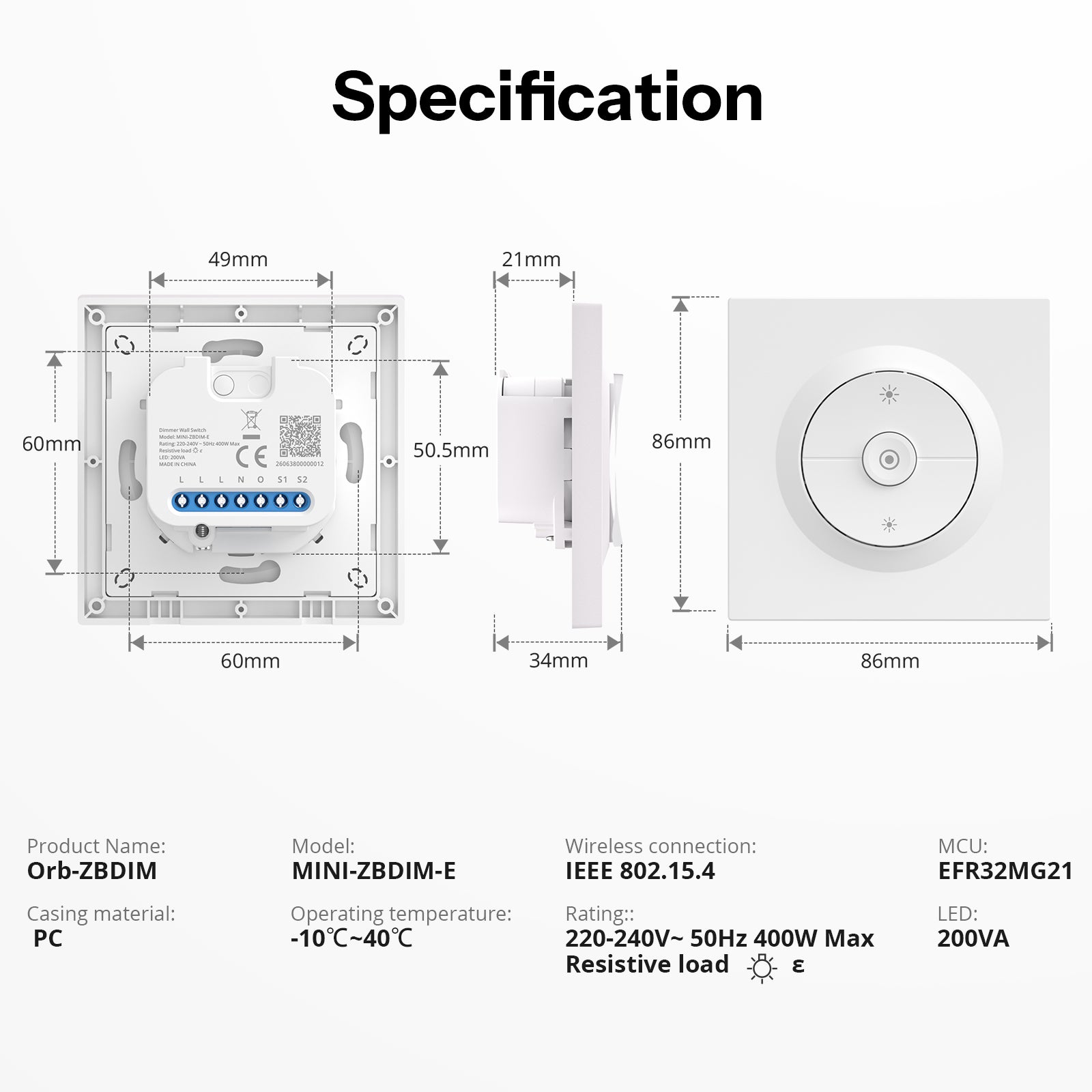

Specification
Specs & User Manual
Orb-ZBDIM is a smart dimmer wall switch based on the Zigbee protocol, offering seamless integration with Home Assistant, Alexa, and other smart home platforms. It supports dimmable LEDs, incandescent, halogen lights, and dimmable electronic transformers, providing smooth, flicker-free dimming. Real-time power monitoring helps track energy consumption, while overload, overcurrent, and overheat protection ensure safety. As a Zigbee router, Orb-ZBDIM extends network coverage by relaying signals to other Zigbee devices, forming a stable, self-healing mesh network for reliable performance, even in distant locations.
User Manual (PDF)Orb-ZBDIM

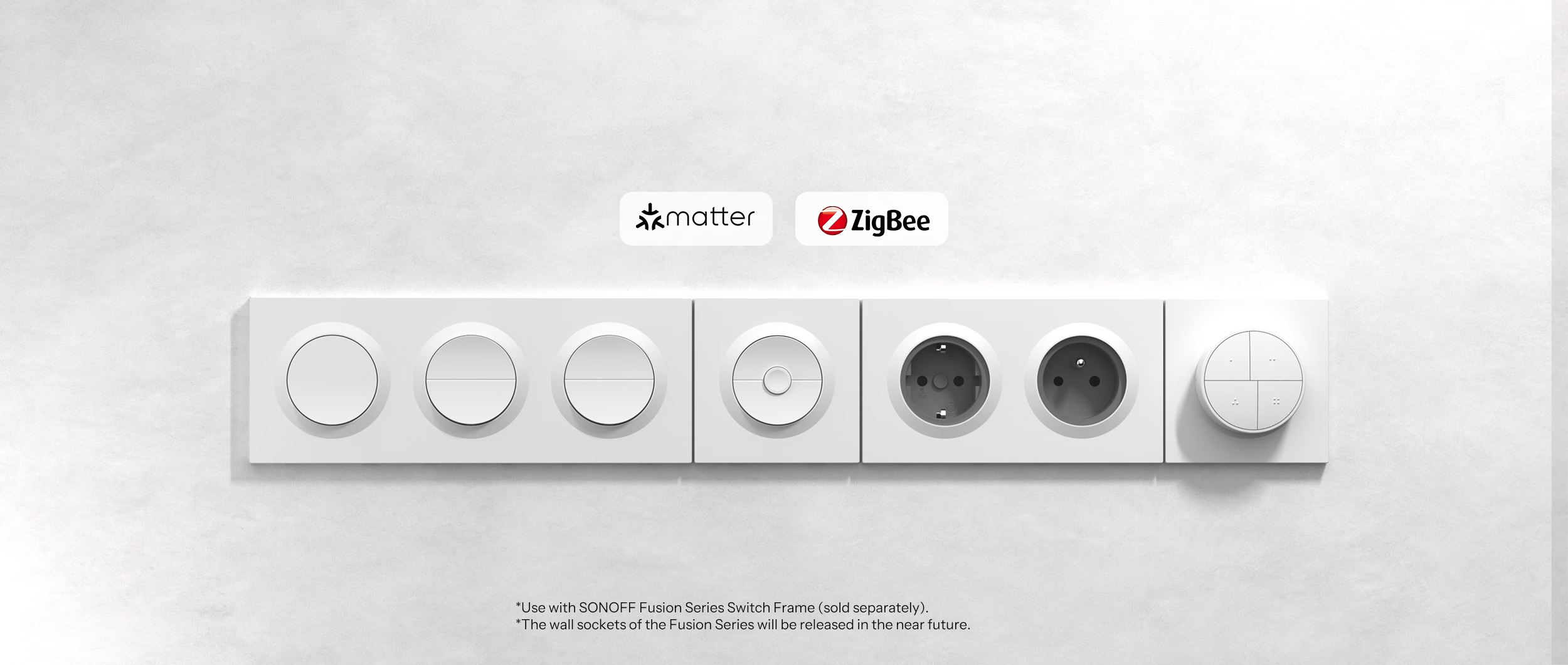

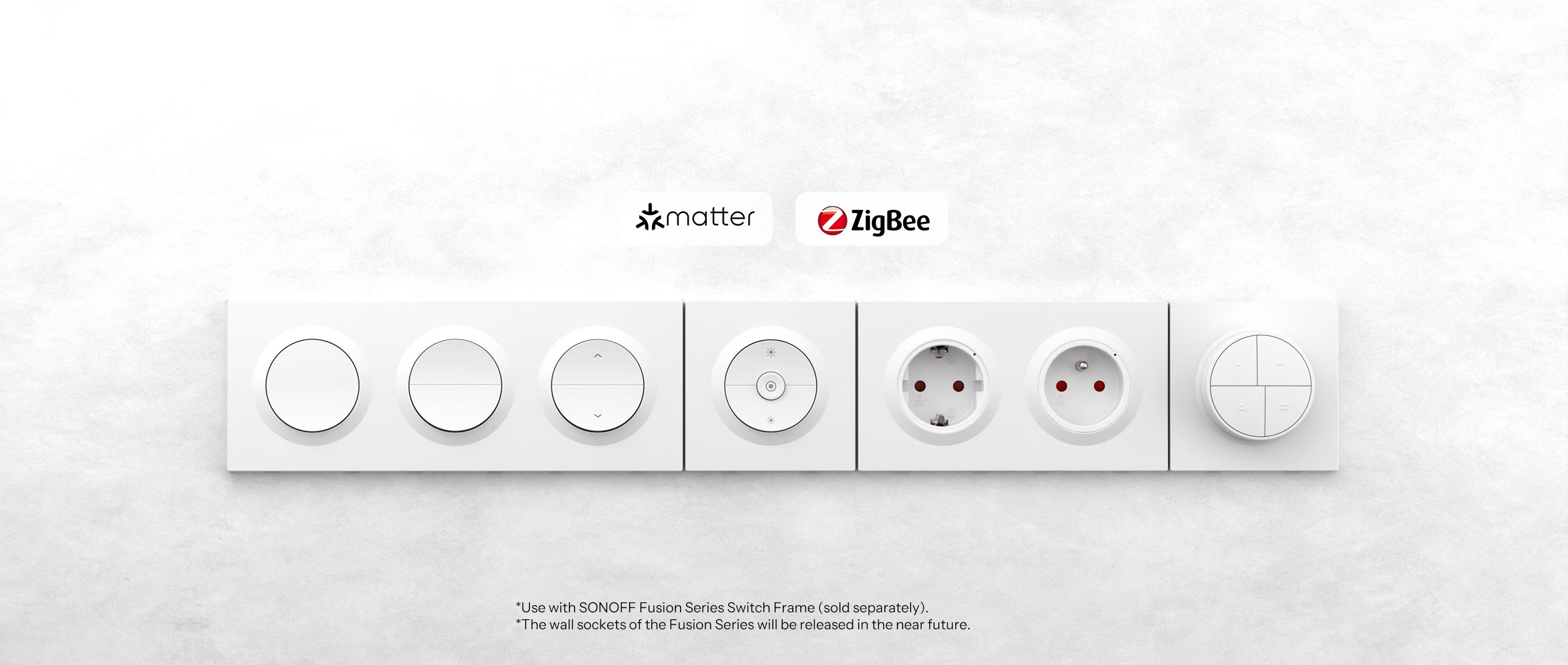

Fusion series
MINI-ZBDIM-E
EFR32MG21
220-240V~ 50Hz 400W Max Resistive load
200VA
83g
86x86x34mm
PC
-10℃~40℃
5%~95% RH, non-condensing
CE/RoHS
FAQ
1. What types of loads (light bulbs) can be used?

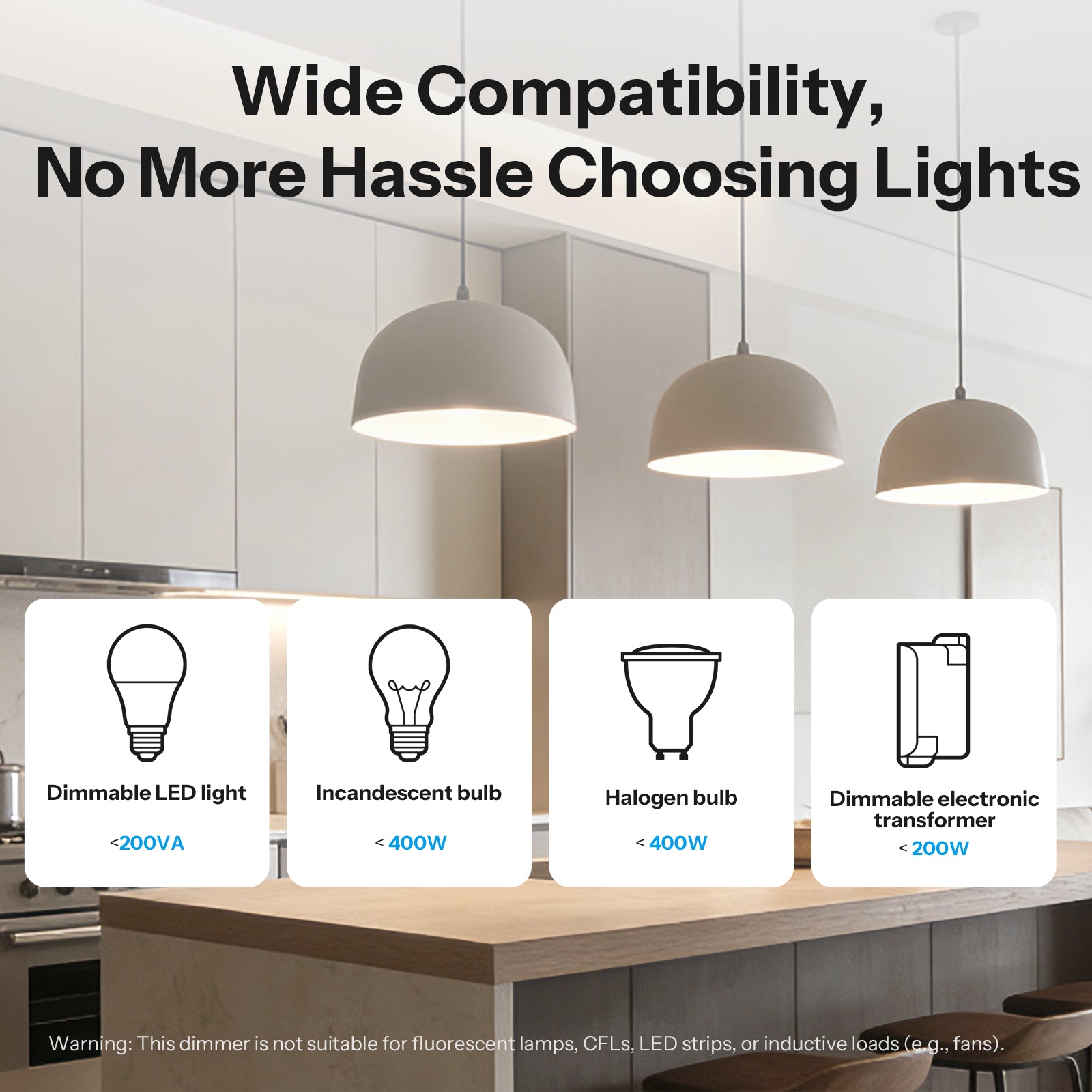

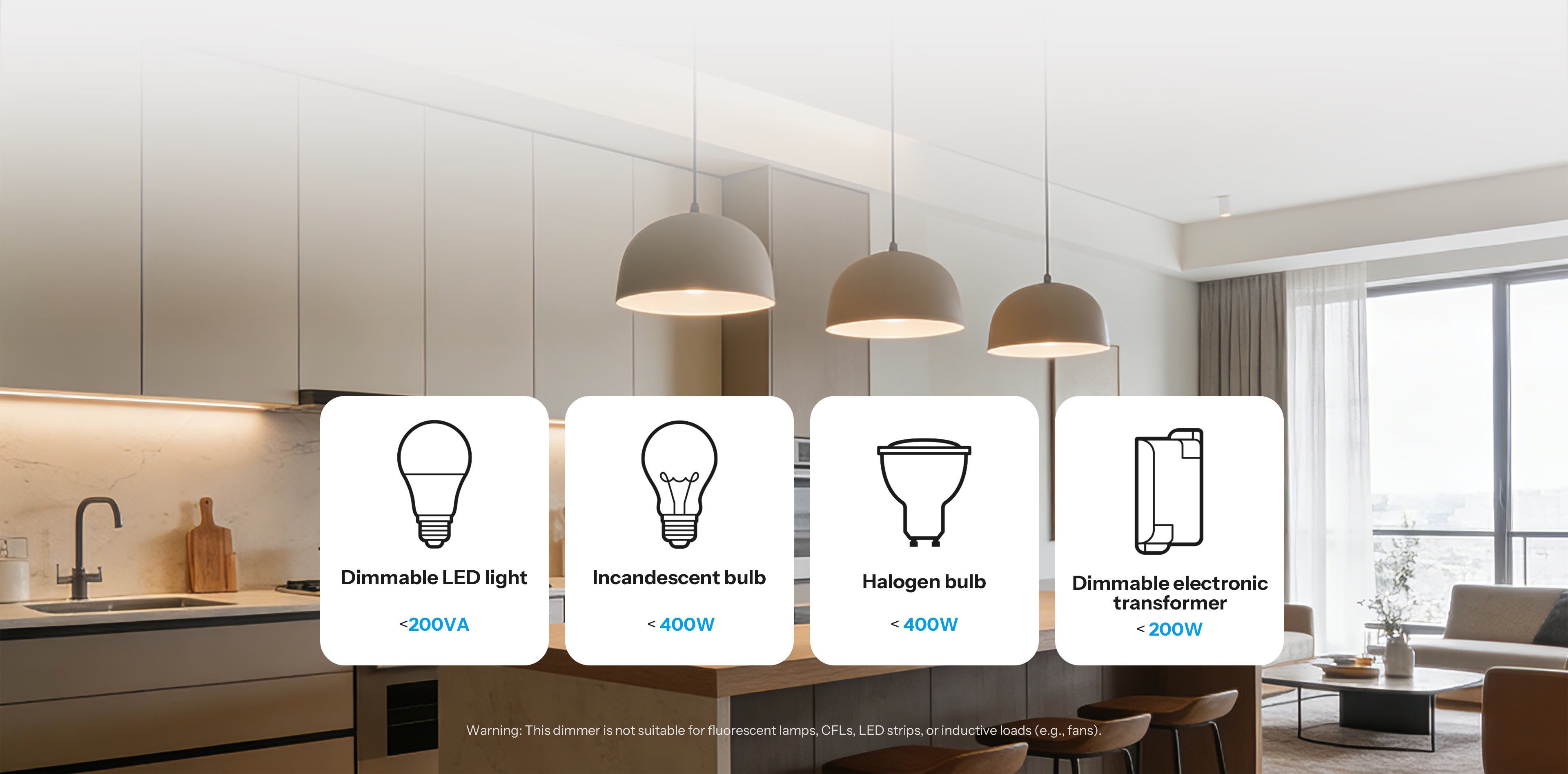

Compatible Loads: Dimmable LEDs, incandescent, and halogen bulbs; dimmable electronic transformers (for ELV systems).Incompatible Loads: Fluorescent lamps, CFLs, LED strips, and inductive loads (e.g., motors, fans).
2. Why is there no light when I turn on a replaced LED bulb at what was previously the minimum brightness?
Some LED bulbs are more sensitive than others and require a higher voltage to turn on. To resolve this issue, you can perform a "Manual Calibration" in the eWeLink App to finely adjust the minimum brightness level until the LED bulb lights up.
3. Does Orb-ZBDIM require a neutral wire?
Yes. Orb-ZBDIM requires a neutral wire for proper installation and operation.
4. Can I perform automatic bulb calibration without the eWeLink App?
Yes. You can manually trigger automatic calibration by pressing and holding the button on the back of the device for 10 seconds. The switch will then automatically calibrate the brightness range for your bulbs.
5. After installation, if the lighting effect does not meet expectations, how should it be adjusted?
If you are experiencing dimming issues, please first check the following possible causes:
- Ensure the light type and wattage are within the compatible range.
(*Note: LEDs or electronic transformers must be of a dimmable type.) - Confirm that the Orb-ZBDIM has been calibrated.
If the light continues to have any of the following issues, please refer to the corresponding "Manual Calibration" instructions for resolution. (*Note: Ensure your device firmware is up to date before using Manual Calibration.)
① Flickering or turning off at low brightness → Appropriately increase the minimum brightness during manual calibration.
② Too bright even at the lowest brightness→ Appropriately decrease the minimum brightness during manual calibration.
③ No change in brightness within the higher brightness range→ Appropriately decrease the maximum brightness during manual calibration.
6. The Device is not pairing with the Zigbee hub.
Ensure the device is powered on and wired correctly.
Long-press the pairing button until the LED indicator starts blinking rapidly.
Ensure your hub is compatible and in pairing mode and within 2 meters of the device during initial pairing.
Try restarting your hub and retrying the pairing process.
