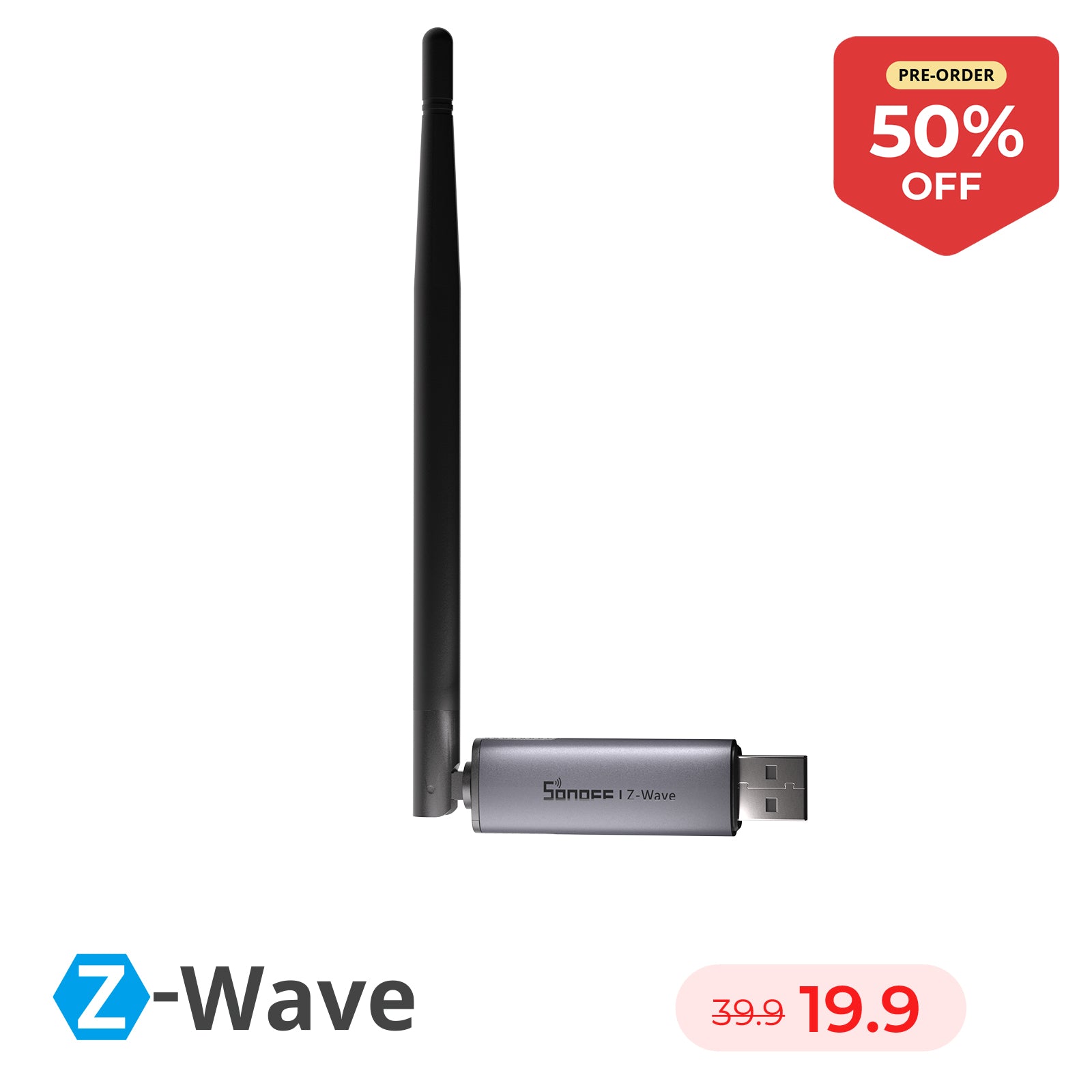

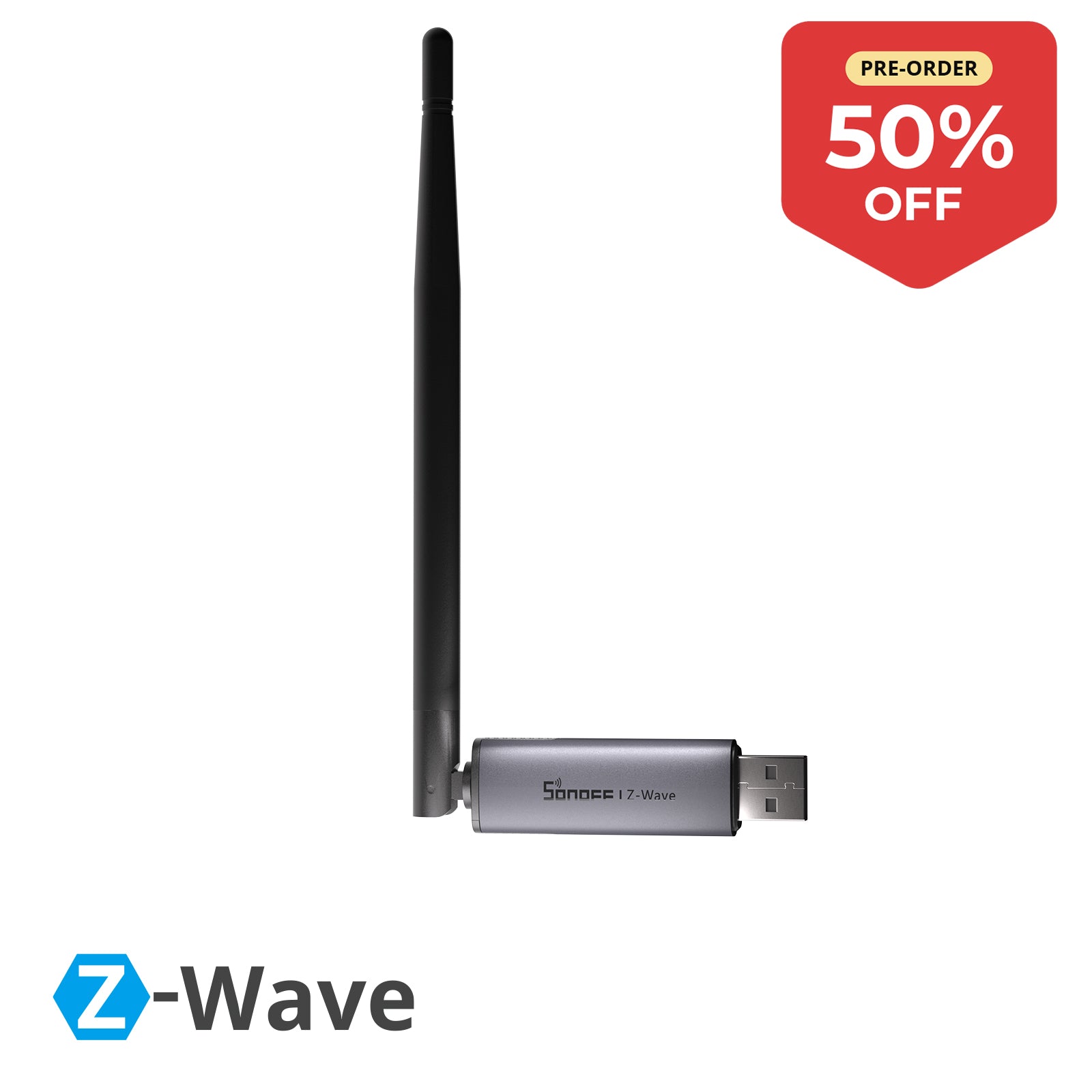

SONOFF USB Z-Wave 800 Dongle Plus | Dongle-PZG23
Tax excluded. Shipping calculated at checkout
Add to cart to enjoy 50% Off automatically. Max 2 units per customer. Cannot be combined with other discounts.
Technical details, troubleshooting or setup tips? Access the Dongle-PZG23 knowledge center for all the info you need.
SONOFF USB Z-Wave 800 Dongle Plus | Dongle-PZG23
Sale price$39.90
SONOFF Z-Wave 800 Dongle Plus

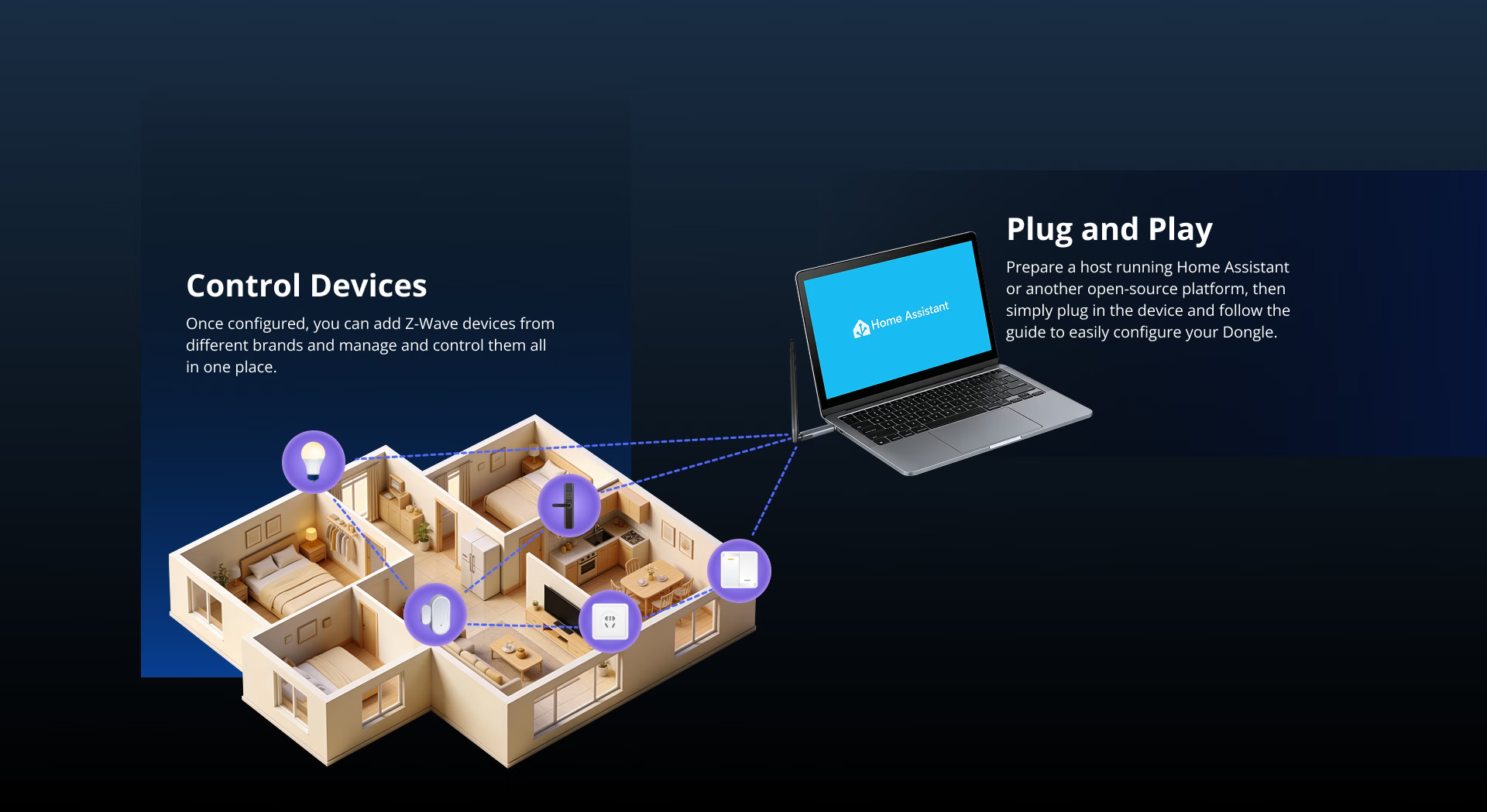

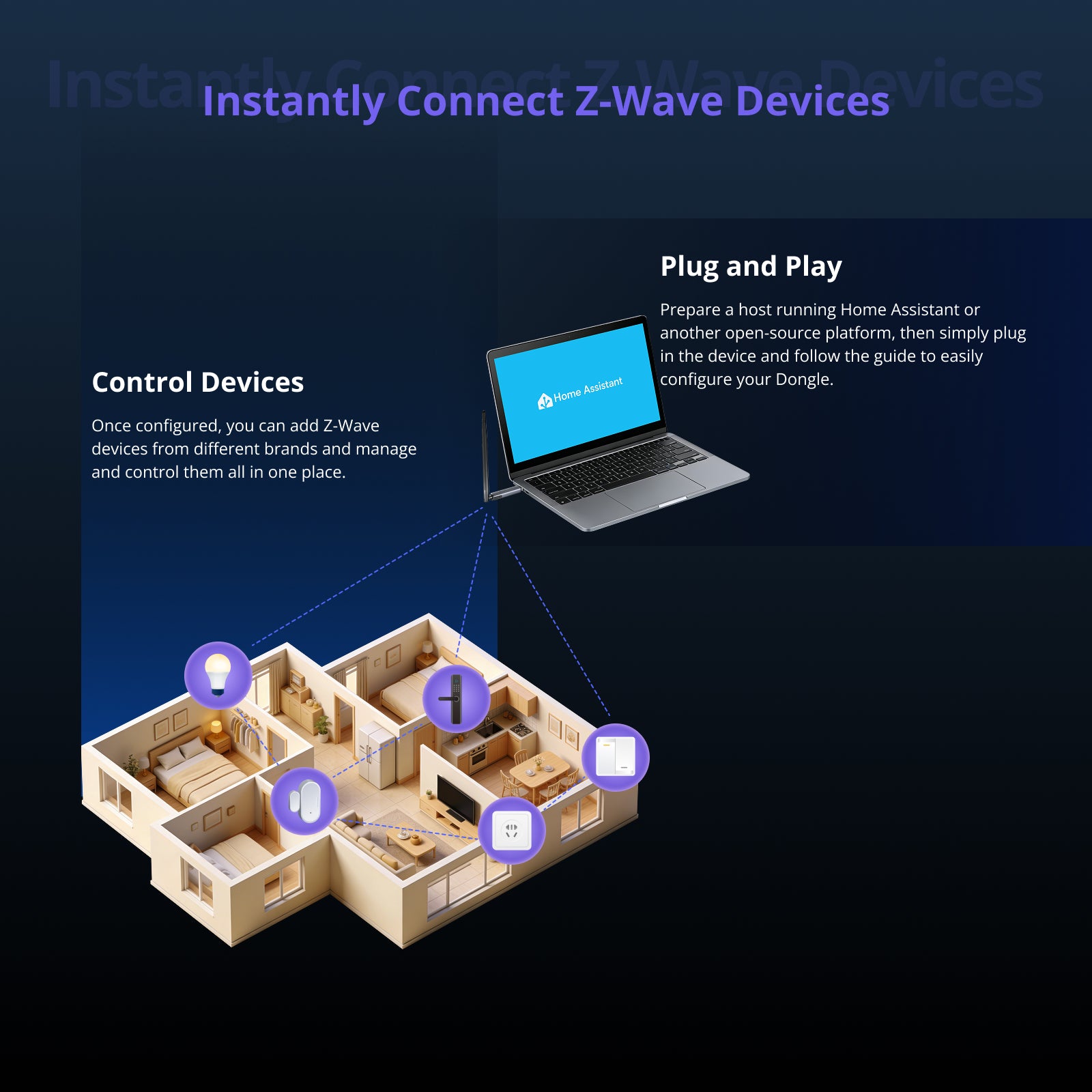

Instantly Connect Z-Wave Devices

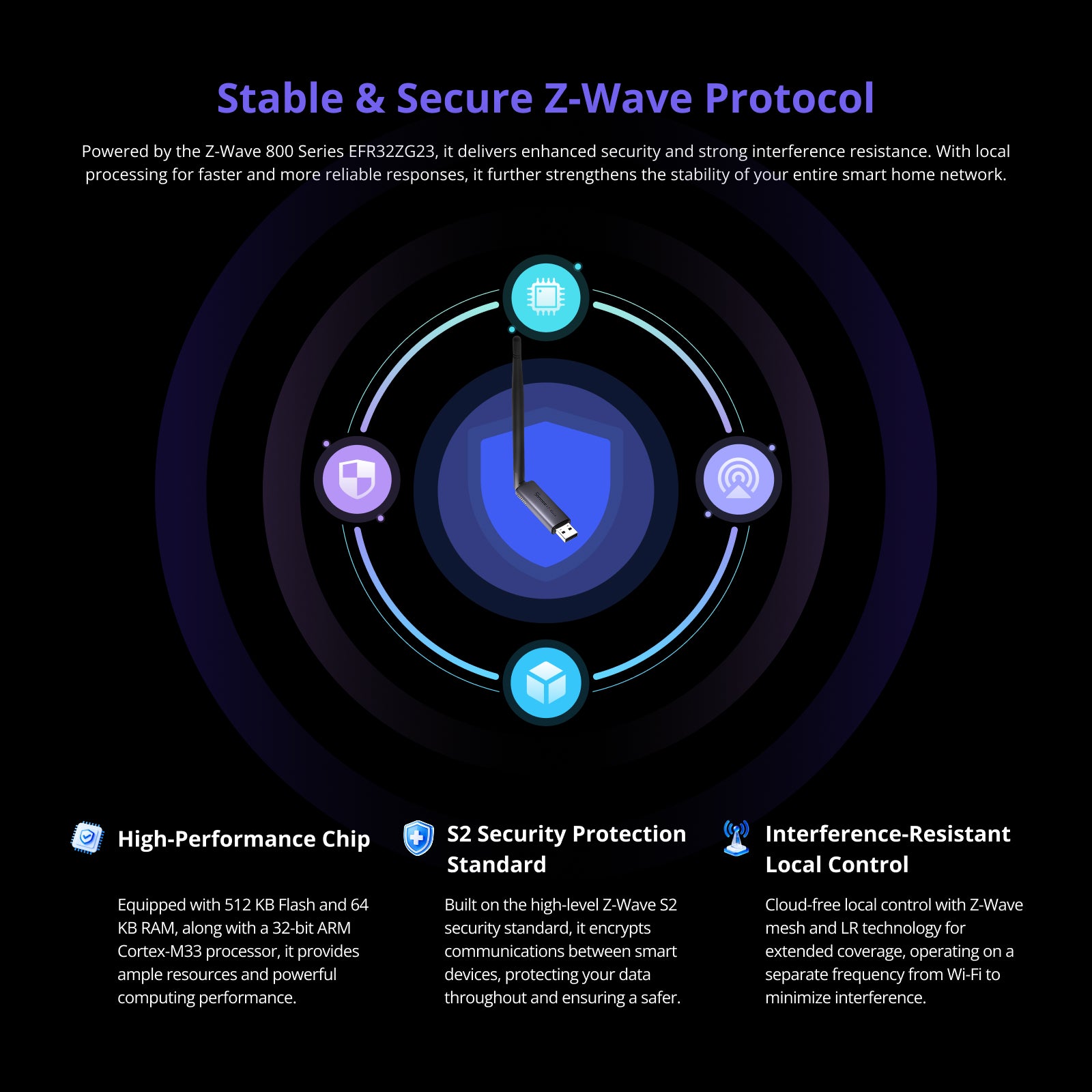

Stable & Secure Z-Wave Protocol

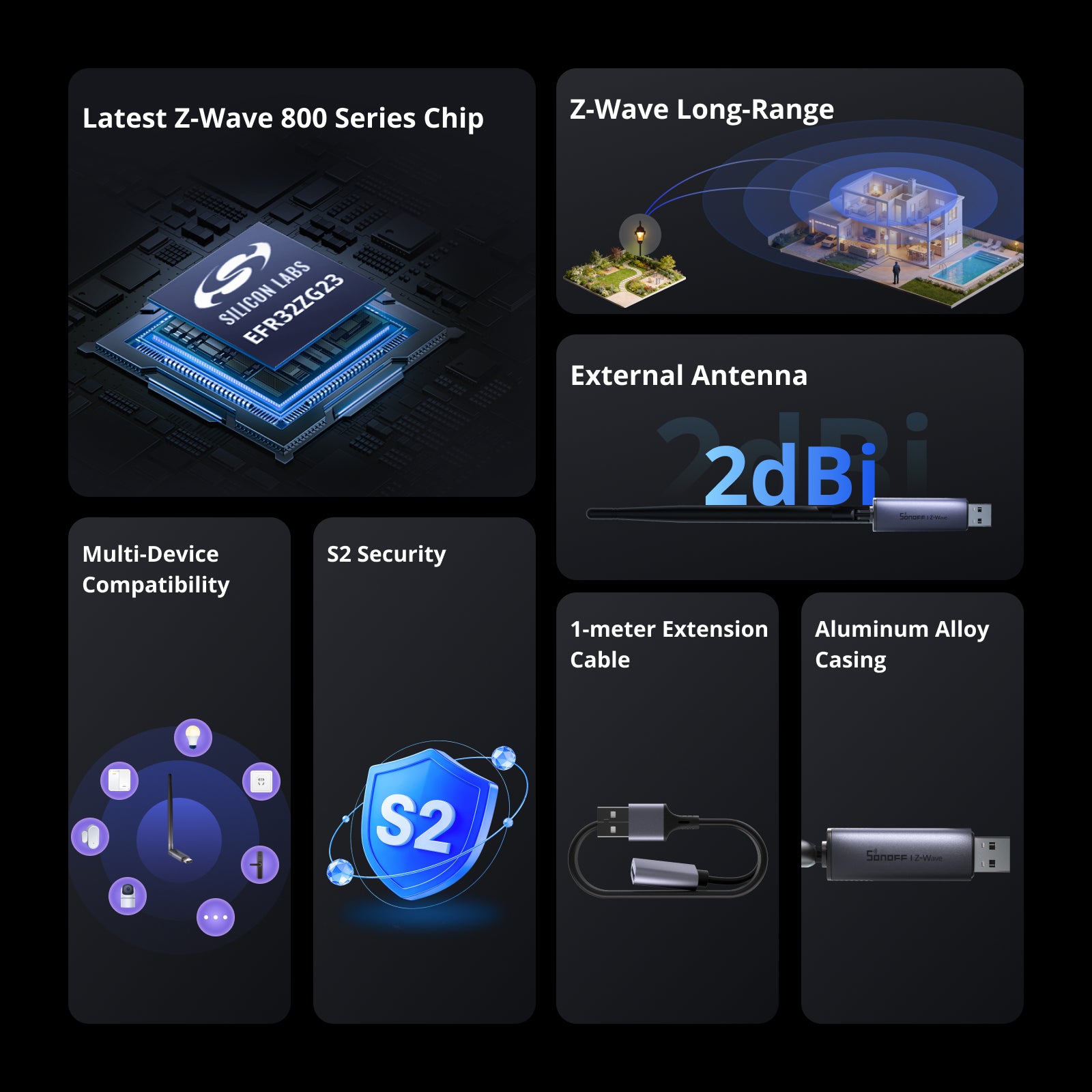

Powered by the Z-Wave 800 Series EFR32ZG23, it delivers enhanced security and strong interference resistance. With local processing for faster and more reliable responses, it further strengthens the stability of your entire smart home network.
Equipped with 512 KB Flash and 64 KB RAM, along with a 32-bit ARM Cortex-M33 processor, it provides ample resources and powerful computing performance.
Built on the high-level Z-Wave S2 security standard, it encrypts communications between smart devices, protecting your data throughout and ensuring a safer.
Cloud-free local control with Z-Wave mesh and LR technology for extended coverage, operating on a separate frequency from Wi-Fi to minimize interference.
Long-Distance Control Exceeding 1000 Meters
The Z-Wave 800 Dongle Plus supports Z-Wave Long Range (ZWLR), extending your control beyond the home. Whether it's garage doors, outdoor patios, or devices in signal-weak areas like basements, it provides stable point-to-point control, keeping distant devices always within reach.

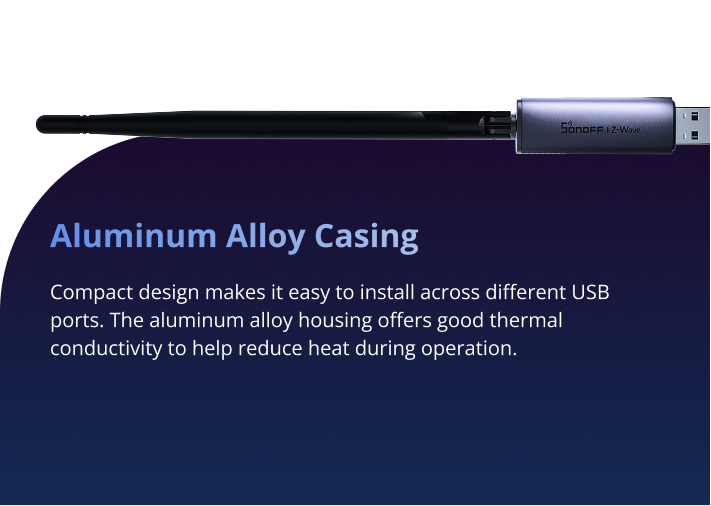

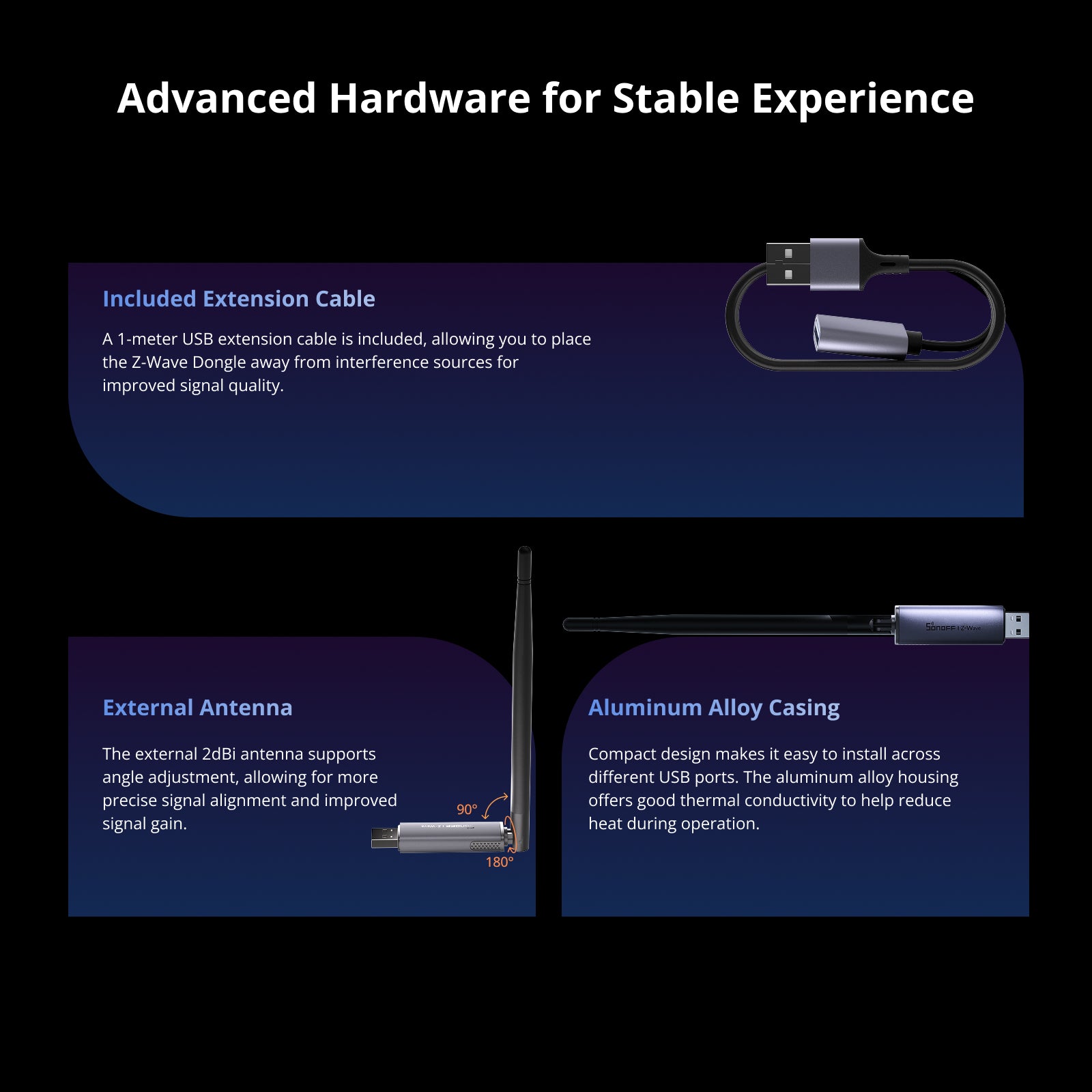

Advanced Hardware for Stable Experience

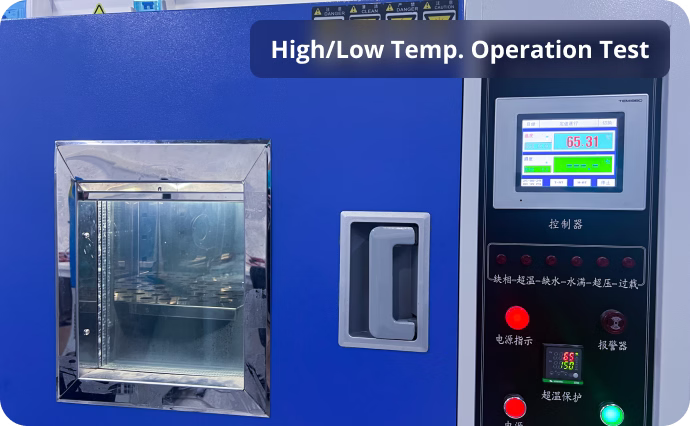

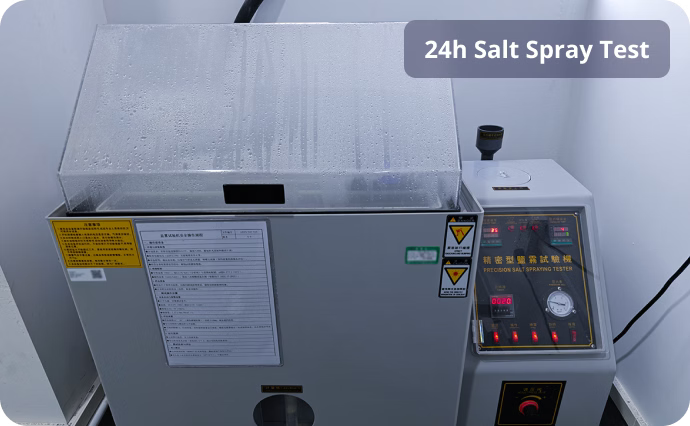

Tested to High Standards, Trusted in Use
*Based on SONOFF laboratory testing.
Certifications & After-Sales Support
Easy to Use by Compatibility
Compatible with Multiple Devices
Works with Z-Wave certified products from various manufacturers and categories, enabling unified control and seamless automation between them.
Compatible with Multiple Platforms
Supports mainstream open-source platforms such as Home Assistant and openHAB that are compatible with the Z-Wave protocol.

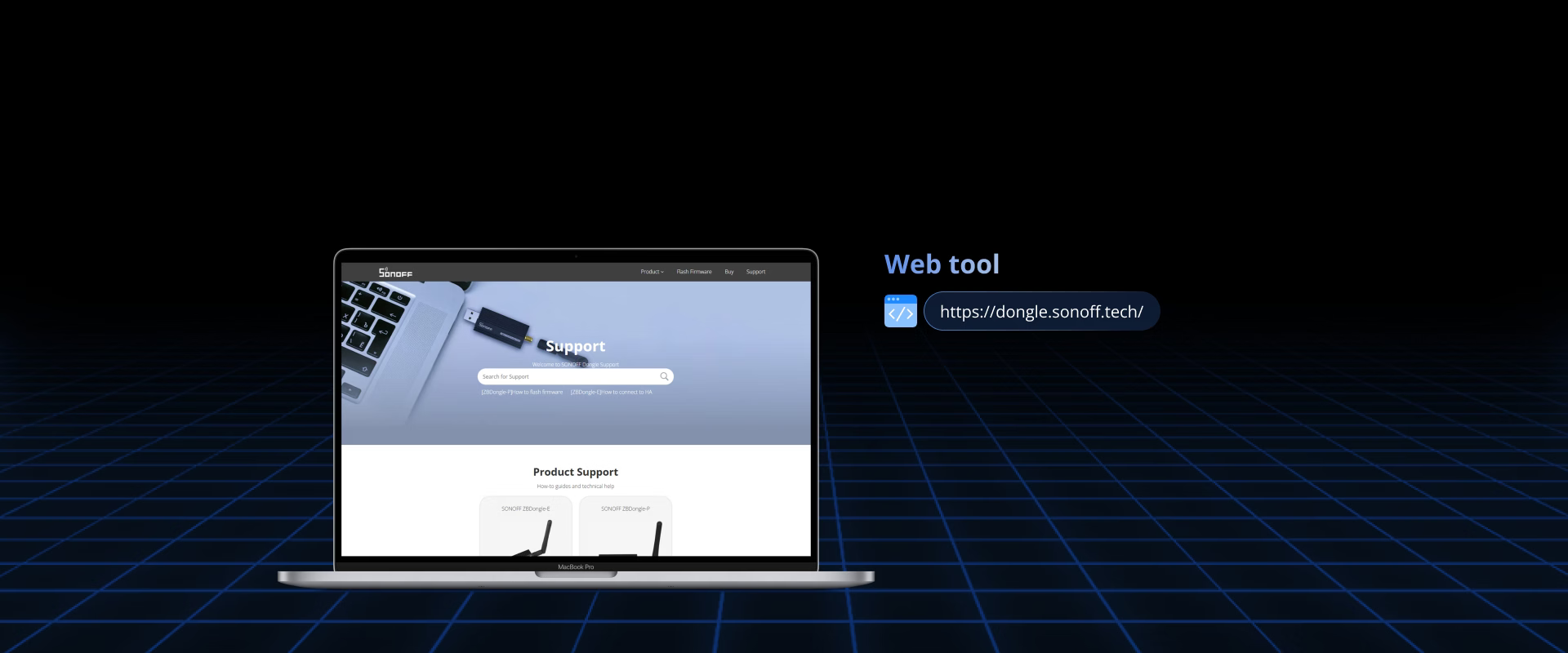

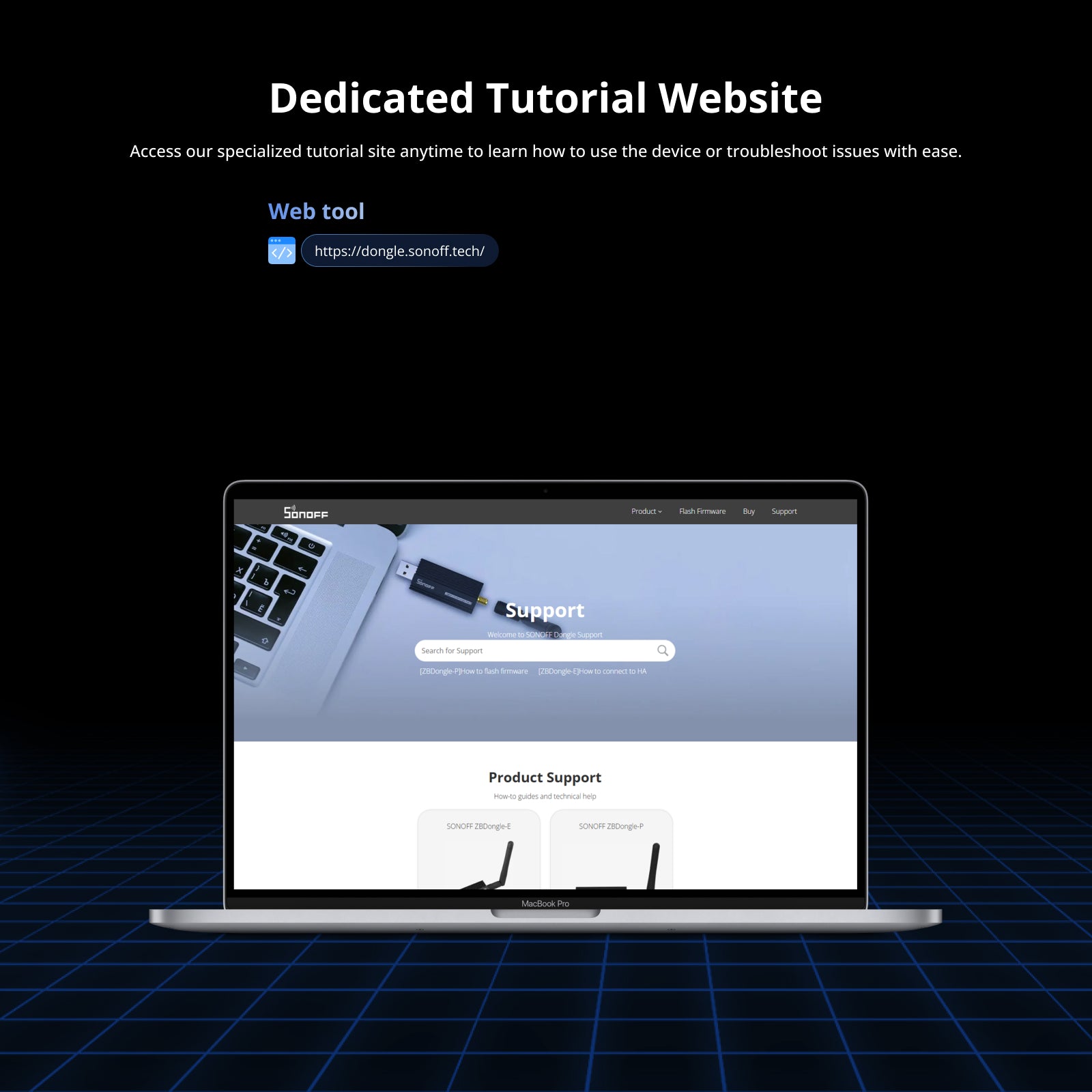

Dedicated Tutorial Website
Access our specialized tutorial site anytime to learn how to use the device or troubleshoot issues with ease.

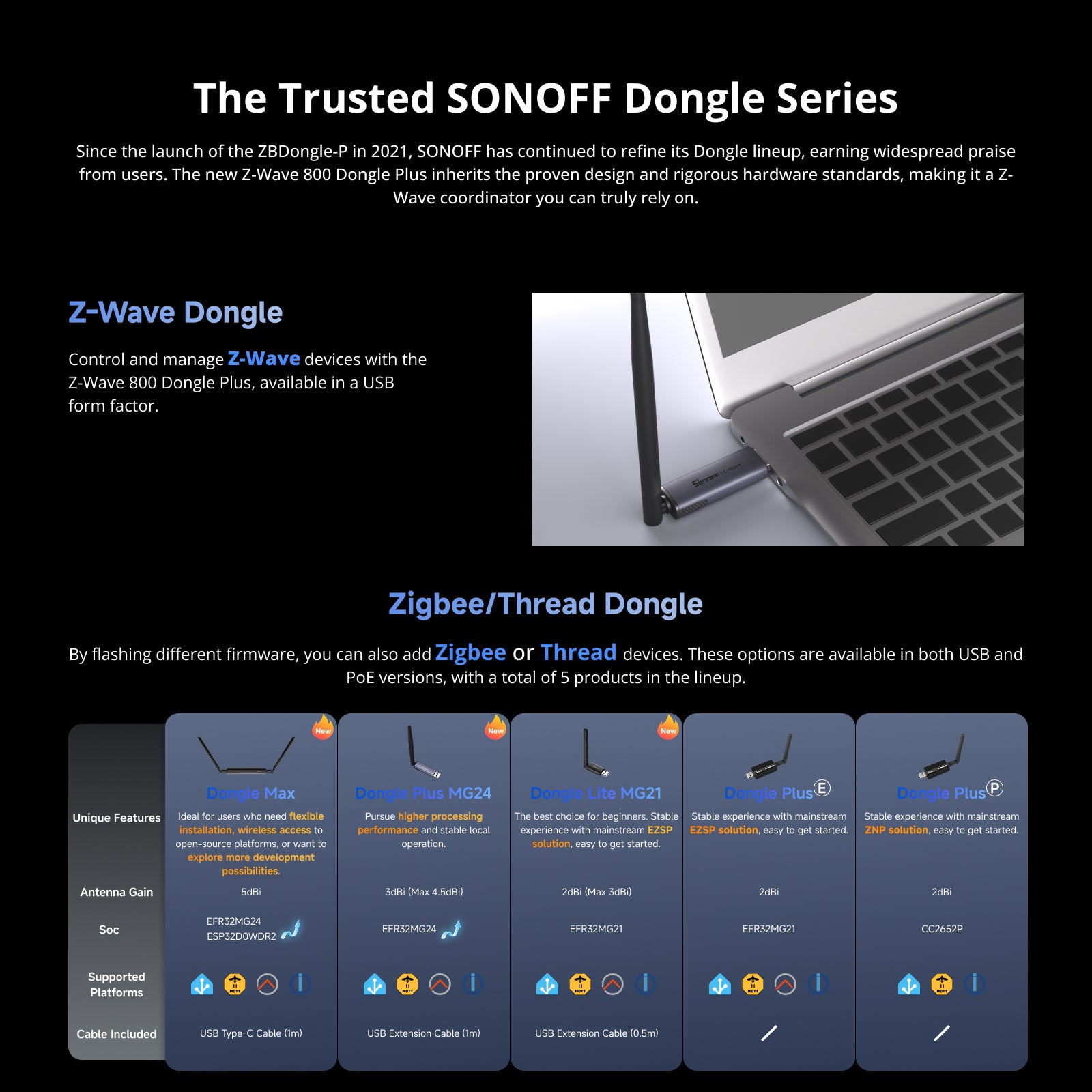

The Trusted SONOFF Dongle Series
Since the launch of the ZBDongle-P in 2021, SONOFF has continued to refine its Dongle lineup, earning widespread praise from users. The new Z-Wave 800 Dongle Plus inherits the proven design and rigorous hardware standards, making it a Z-Wave coordinator you can truly rely on.
Zigbee/Thread Dongle
By flashing different firmware, you can also add Zigbee or Thread devices. These options are available in both USB and PoE versions, with a total of 5 products in the lineup.

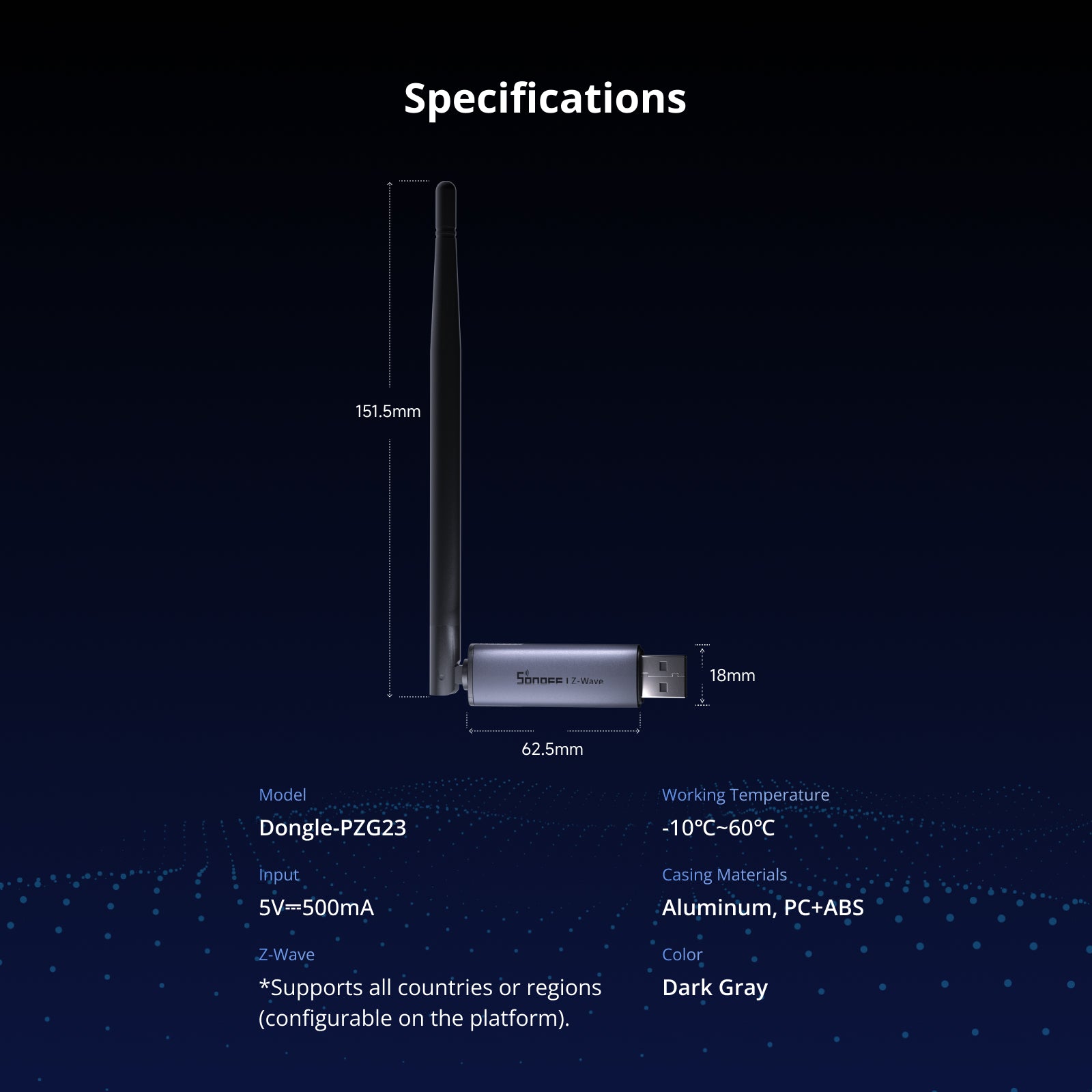

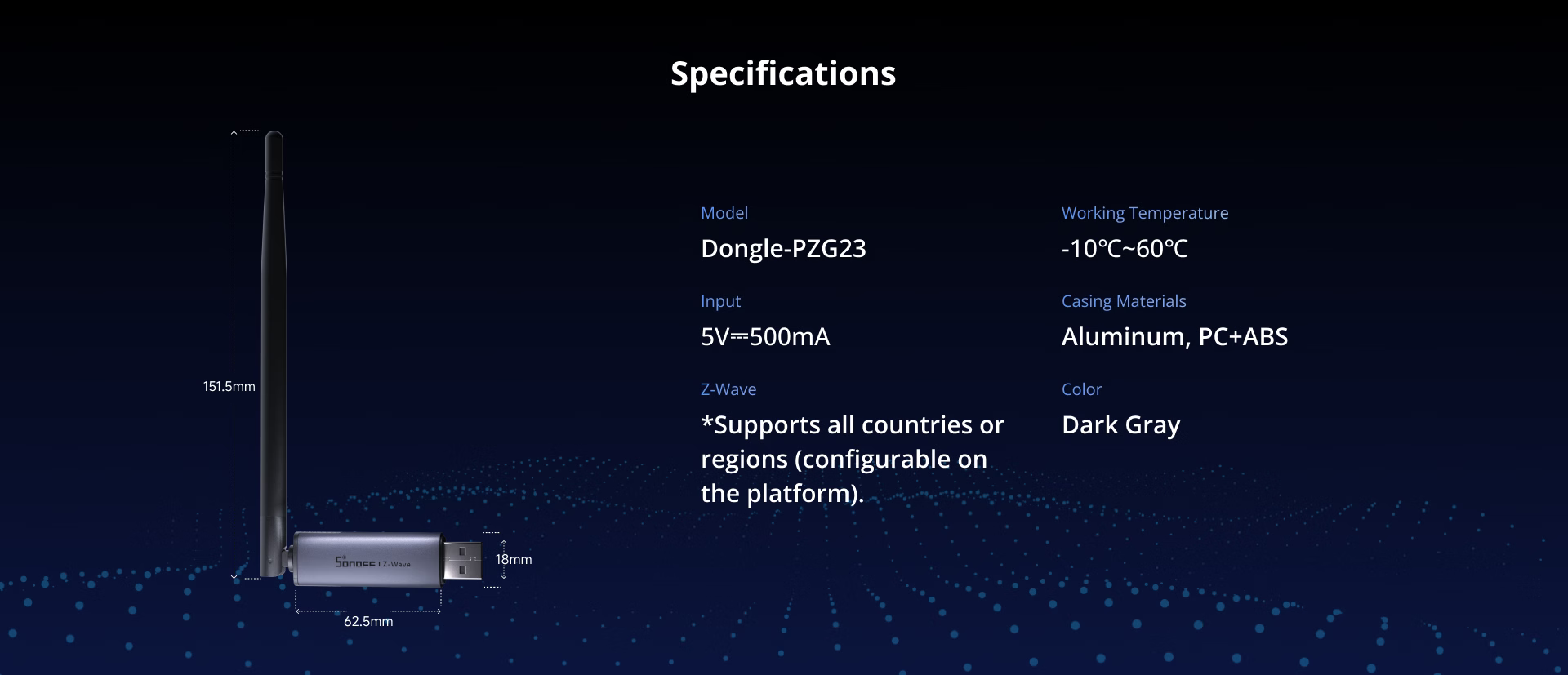

Specs & User Manual

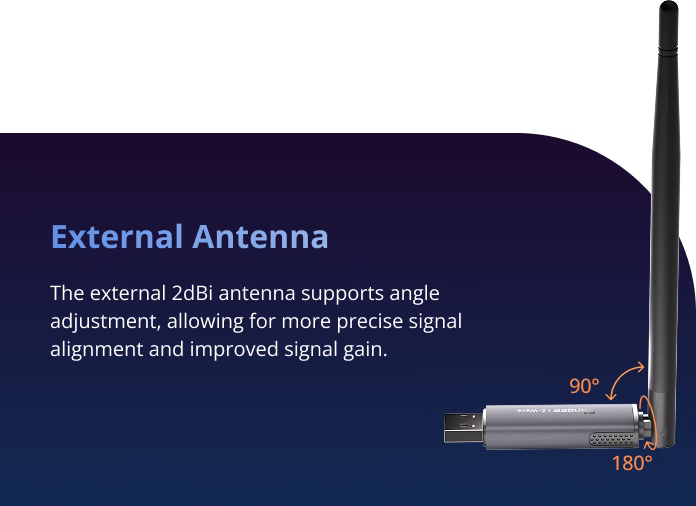

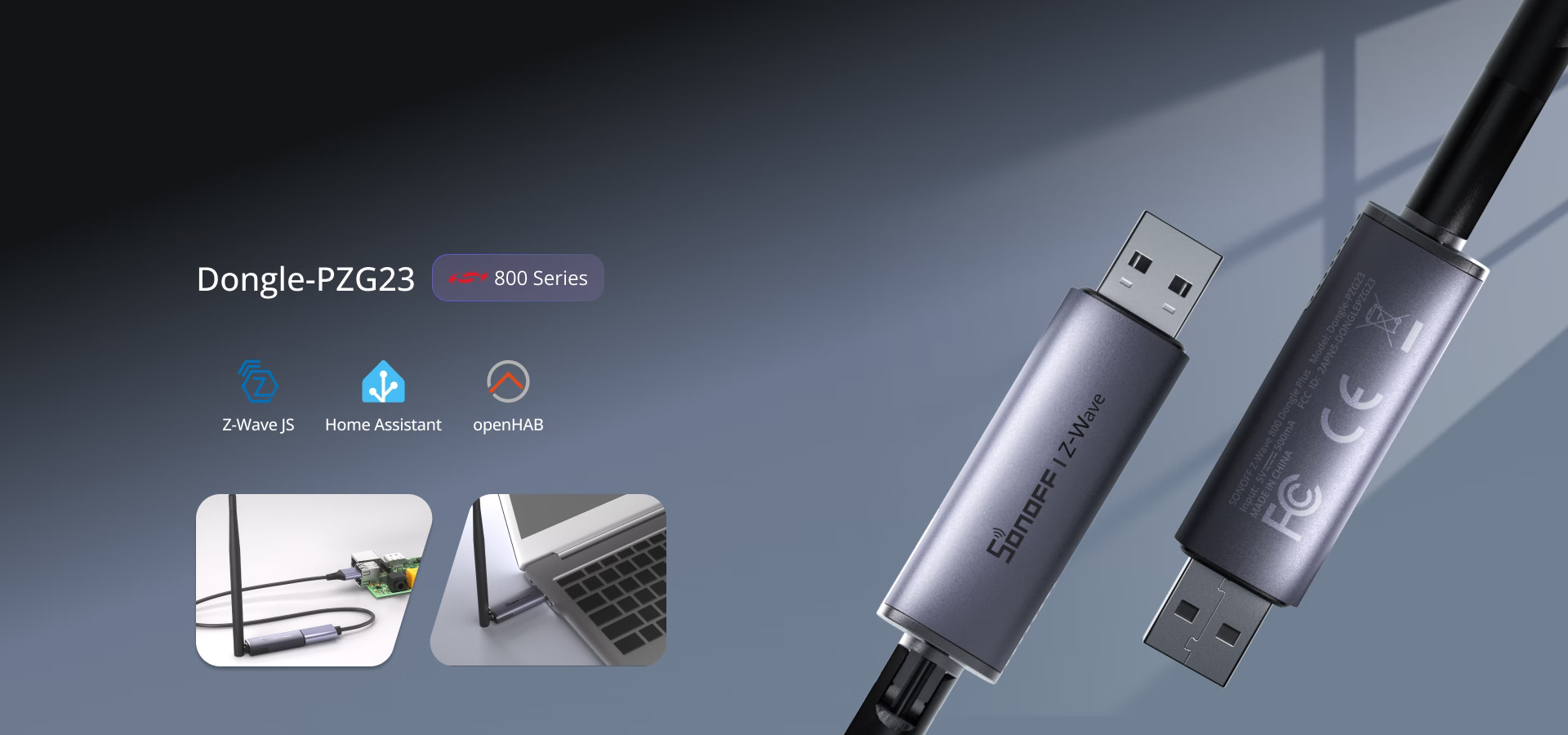

Dongle-PZG23 is a high-performance Z-Wave USB adapter designed for secure, stable, and long-range smart home control. Powered by the advanced Z-Wave 800 Series EFR32ZG23 chip, it supports S2 Security, delivers strong anti-interference performance, and ensures reliable communication with your Z-Wave devices. Featuring a 2 dBi external adjustable antenna and Z-Wave Long Range (ZWLR) technology, Dongle-PZG23 enables connections over 1,000 meters, expanding coverage across large spaces. Preloaded with the latest Z-Wave firmware, it offers true plug-and-play setup via USB. Compatible with popular open-source platforms such as Home Assistant and openHAB, and equipped with a USB extension for flexible placement, Dongle-PZG23 is a powerful and dependable solution for building a robust Z-Wave network.
Quick Start (PDF)Model
Dongle-PZG23
Input
5V ⎓ 500mA
Working Temperature
-10°C~60℃
Color
Dark Gray
Casing material
Aluminum, PC+ABS
FAQ

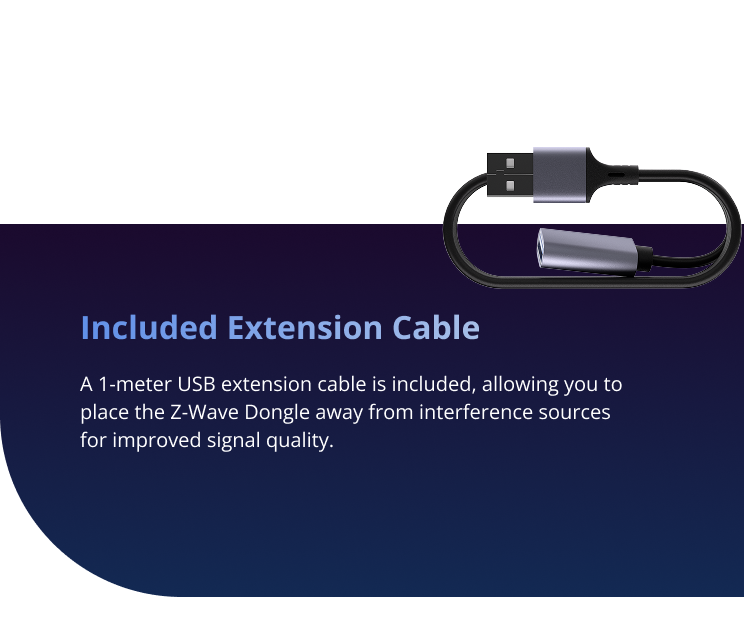

1. What is the purpose of the USB extension cable?
We strongly recommend using a USB extension cable between your USB port and the dongle to reduce electromagnetic interference that may come from USB 3.0 ports, ensuring more stable communication.
2. Does the Z-Wave 800 Dongle Plus support firmware flashing?
It only supports flashing firmware provided by SONOFF.
3. Can I run two Z-Wave dongles on Home Assistant at the same time?
You cannot run two Z-Wave adapters using the same integration. If you use only one integration, you would need to migrate the network. If you want to run two adapters simultaneously, you must install a second integration, such as Z-Wave JS UI.
4. Can I use a Zigbee dongle and a Z-Wave dongle on the same device simultaneously?
Yes, they can be used together.
5. What is Z-Wave Long-Range (ZWLR) and How Does it control devices at long distances?
Z-Wave Long-Range (ZWLR) allows devices to communicate directly with the gateway over longer distances when the device is far from the gateway, using point-to-point communication.
For a detailed introduction, you can refer to: https://z-wavealliance.org/what-is-z-wave-long-range-how-does-it-differ-from-z-wave/
