SONOFF Zigbee Motion Sensor | SNZB-03P
Tax included. Shipping calculated at checkout
【5-Second Fast Detection】Automatically turns lights on within 5 seconds when you pass by and switches them off after you leave, helping to save energy efficiently.
【Long-Lasting 3-Year Battery Life】Powered by a CR2477 battery, offering over 3 years of reliable use without frequent replacements.
【Zigbee 3.0 Compatible】Compatible with Zigbee 3.0 hubs such as SONOFF NSPanel Pro, SONOFF iHost, ZB Bridge Pro, ZBDongle-E, and Echo Plus 2nd Gen.
【Local Smart Scene Functionality】Zigbee scenes continue to operate locally even if your WiFi network goes down, as long as devices remain powered.
【Enhanced Home Security】Detects unauthorized entry and can trigger cameras to record, sound alarms via the gateway, and send instant app notifications to keep your family and property safe.
Technical details, troubleshooting or setup tips? Access the SNZB-03P knowledge center for all the info you need.
SONOFF Zigbee Motion Sensor | SNZB-03P
Illuminate Your Path,
Secure Your Space
Motion Detection
Trigger to turn on smart lights to welcome you home
Automate your staircase lighting
Senseless trigger night lights
Combining Convenience And Energy Conservation
Customize Detection Duration
Automatically turn off the lights when you leave, the shortest time can reach 5 seconds
Smart Environment Light Detection
When detecting movement, intelligently determine whether the ambient brightness is dim or bright, allowing you to have more flexibility in deciding whether to turn on the lights.
Daytime
Night

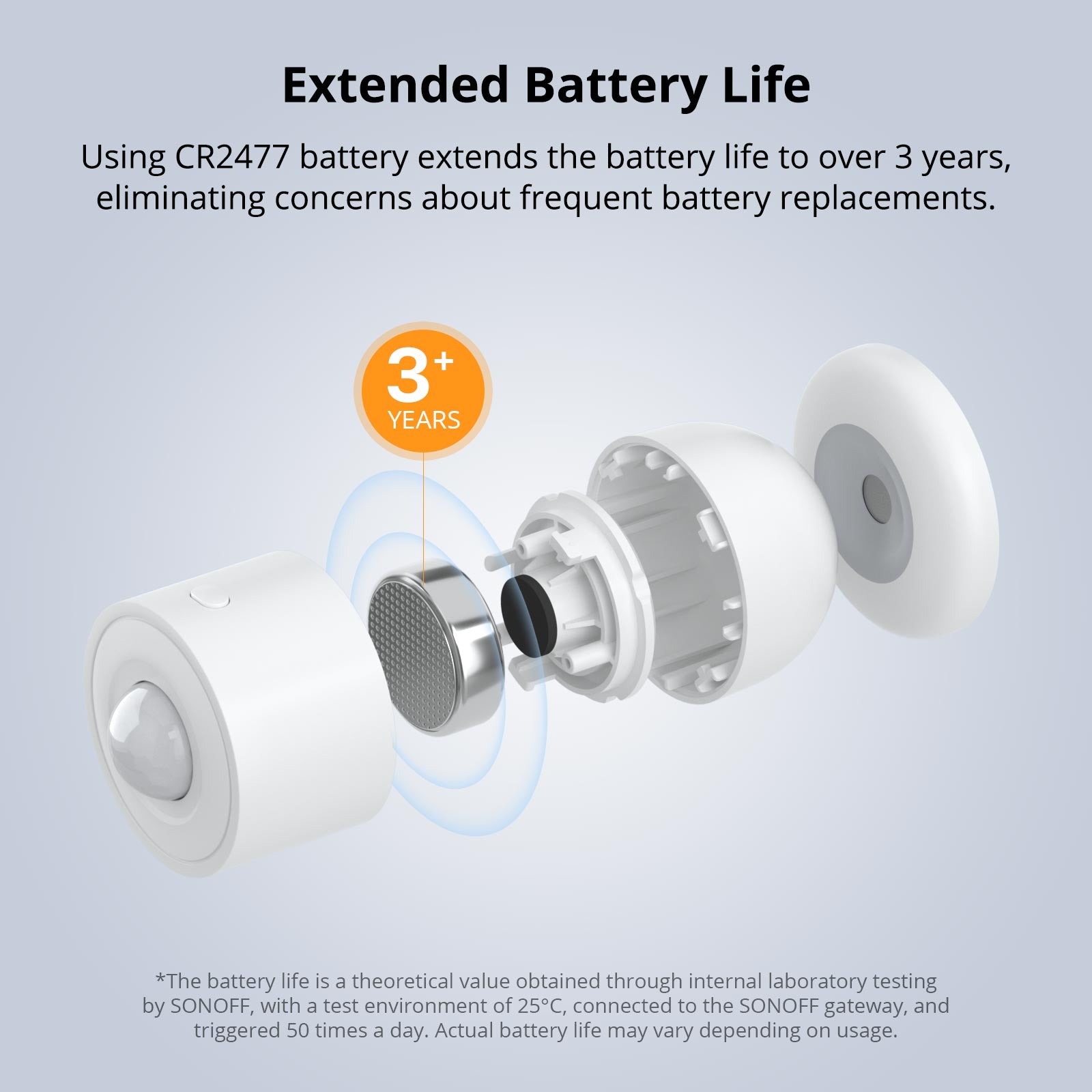

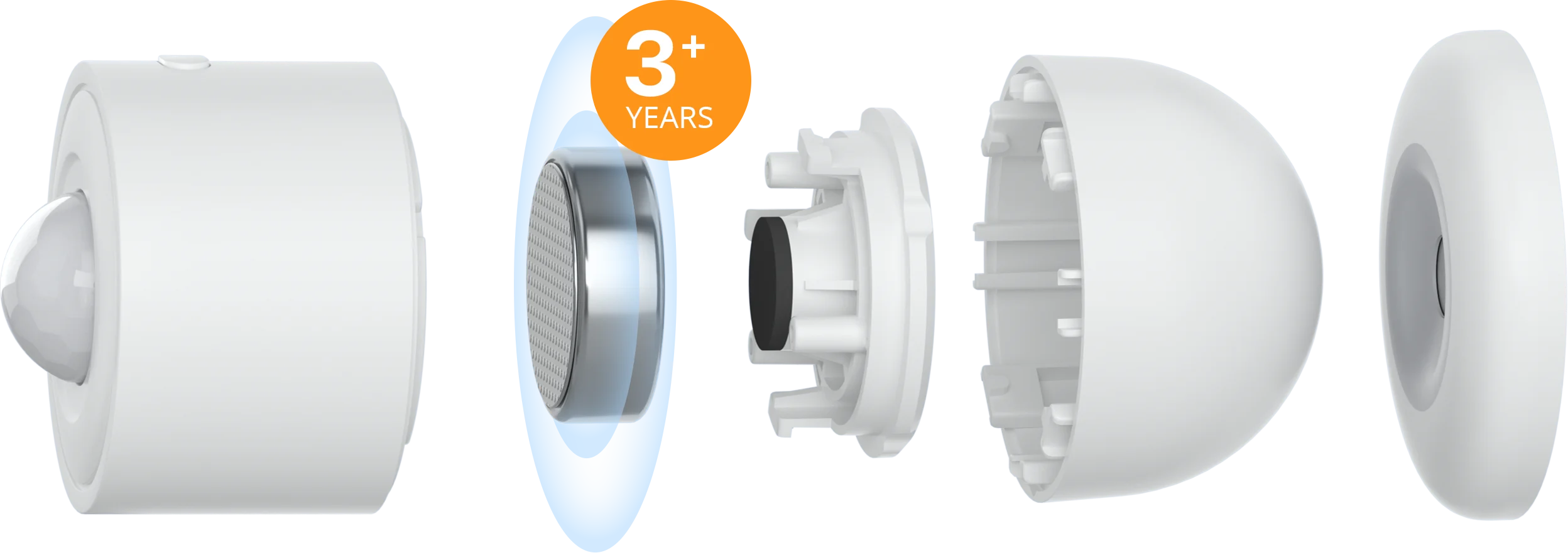

Extended Battery Life
Using CR2477 battery extends the battery life to over 3 years, eliminating concerns about frequent battery replacements.
Home Security
Local Scene Intelligent Linkage
Even if your WiFi network crashes, you can still activate Zigbee local scenes
as long as your Zigbee devices are powered on. Lower latency, higher reliability.
Explore More Possibilities
Based on eWeLink App Third-party platform function, supporting Alexa, Google Home, Smartthings, Alice and IFTTT

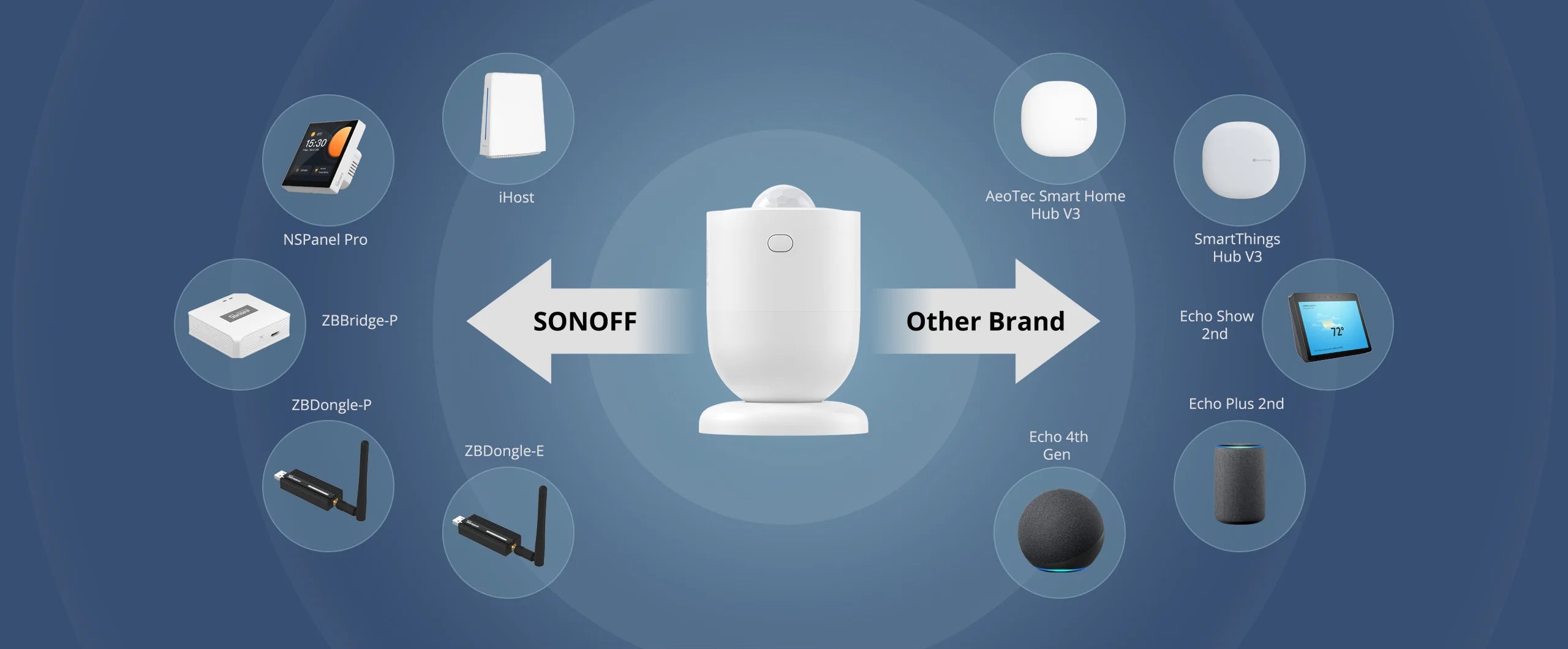

Compatible with Multiple Zigbee Hubs
Add to Home Assistant
Easily add to Home Assistant for your home automation through ZHA or Zigbee2MQTT
Feature Overview
Place Anywhere and Cover Anywhere

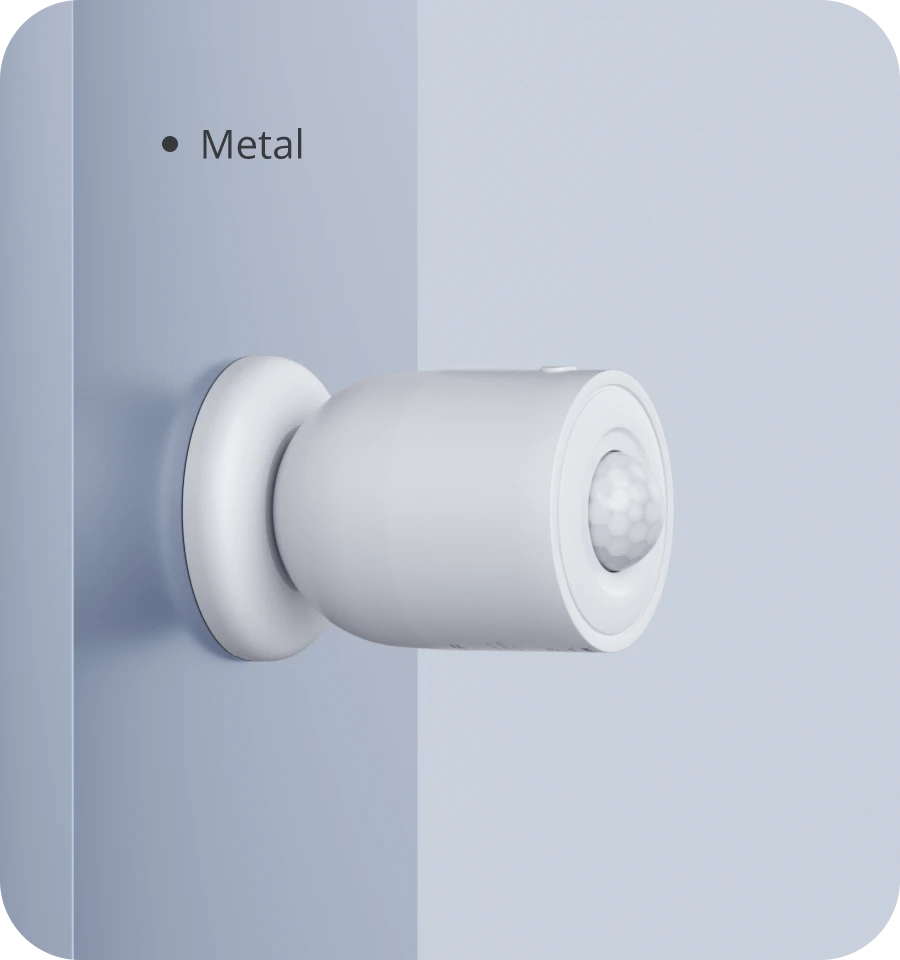

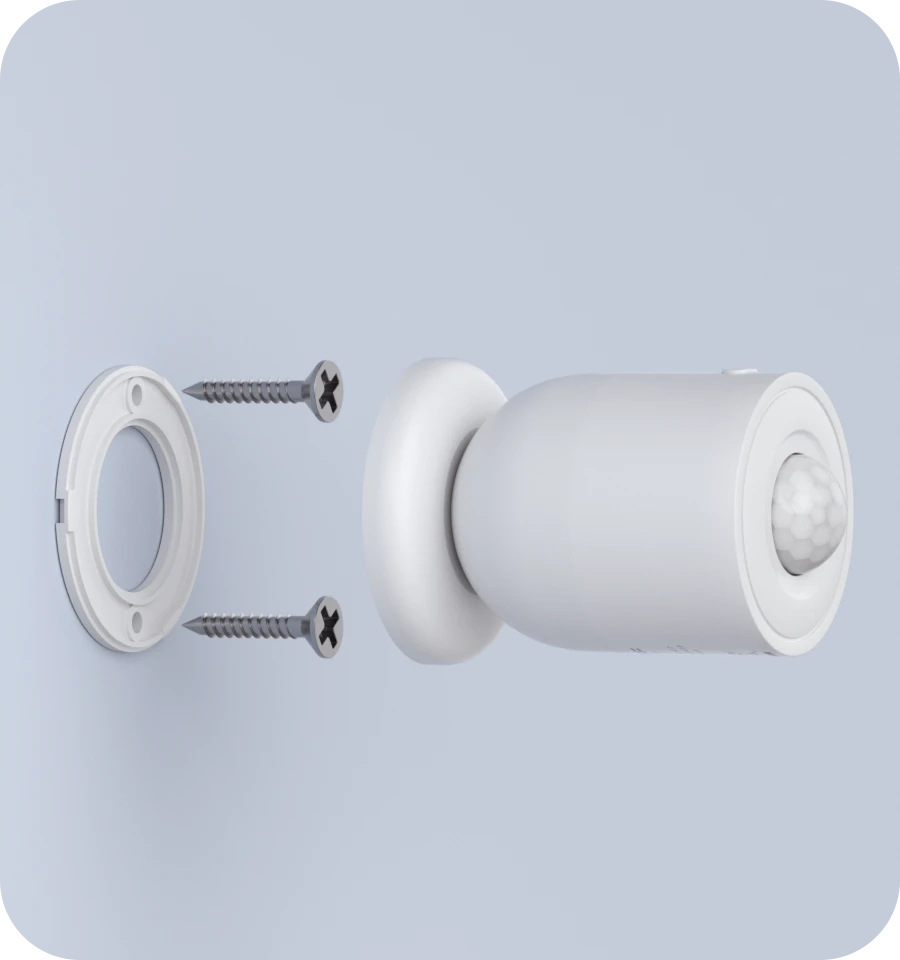

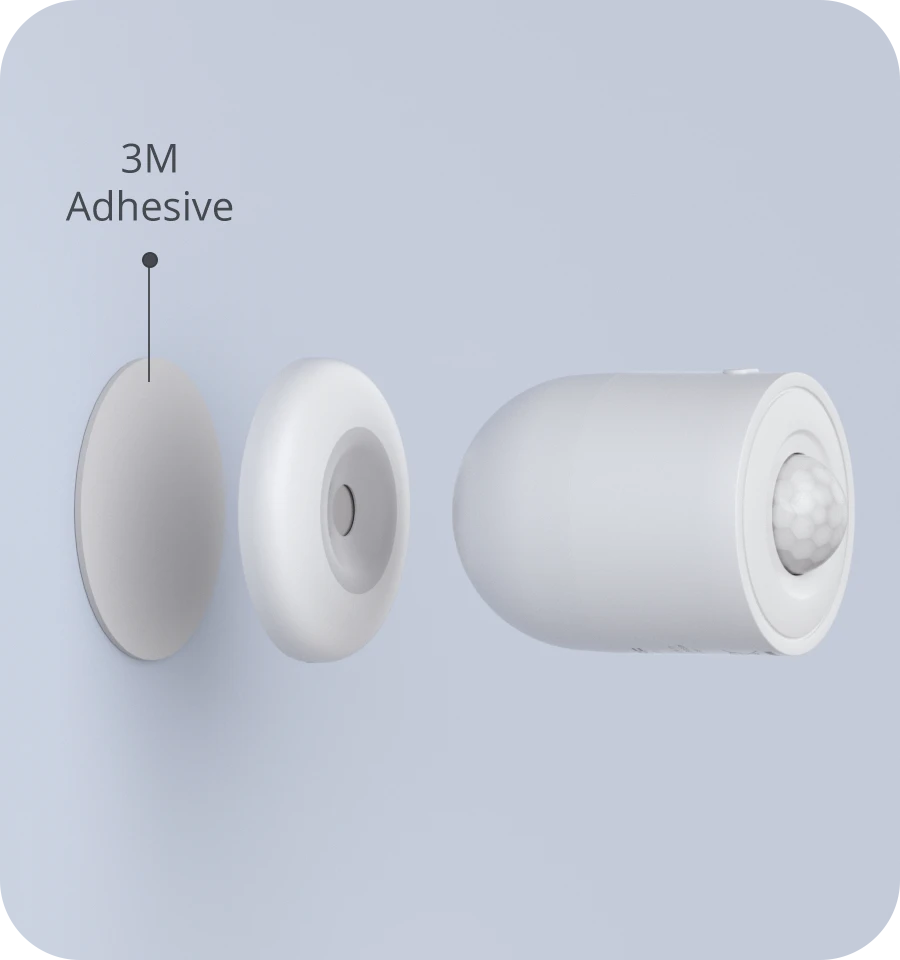

Various Installation Methods
Difference between Presence Sensor and Motion Sensor

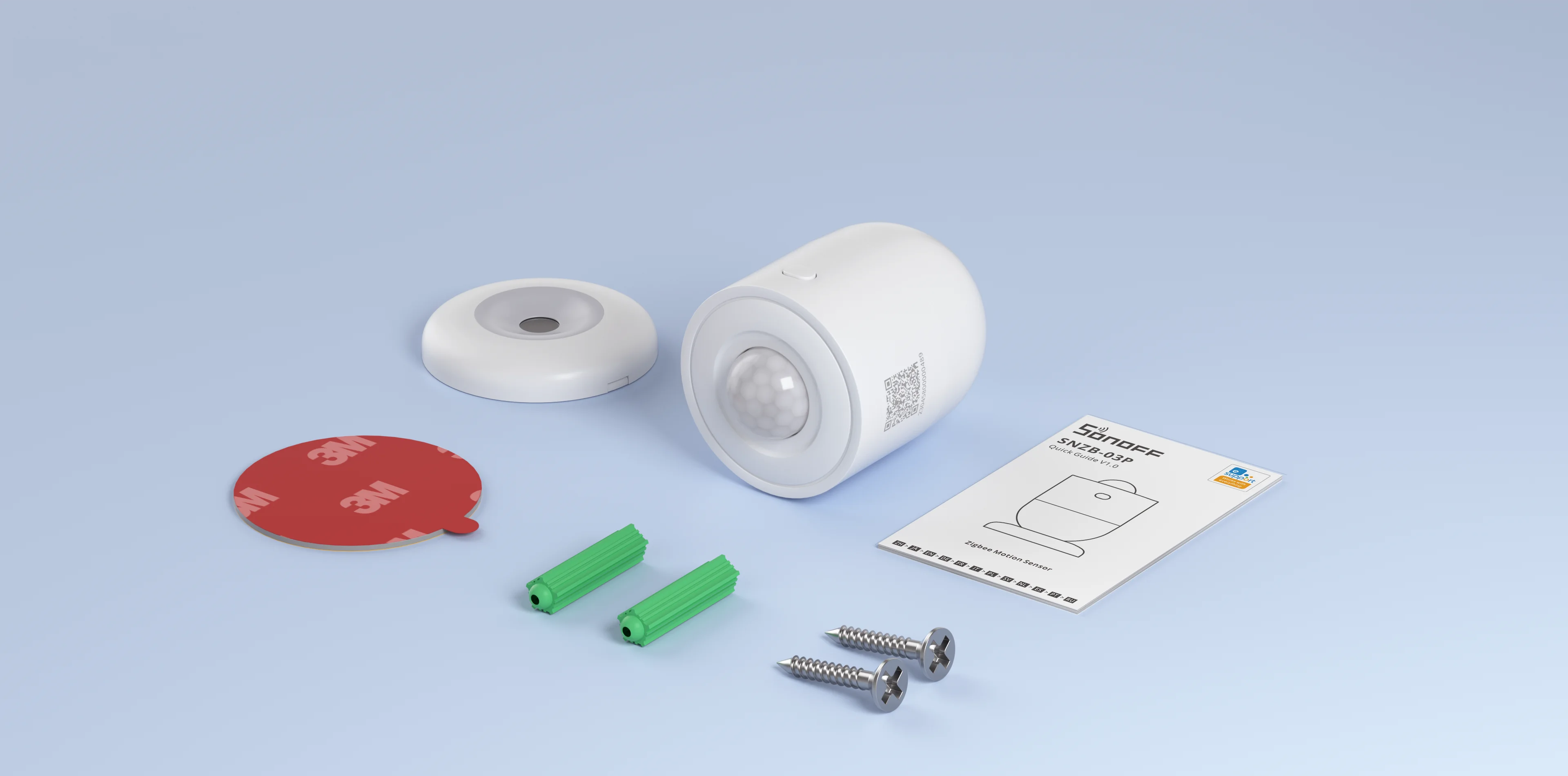

In the Box
Specs & User Manual
SONOFF SNZB-03P is a Zigbee 3.0 motion sensor that detects movement in under 5 seconds, automatically turning lights on when you enter and off when you leave to save energy. Powered by a long-lasting CR2477 battery for over 3 years, it works with NSPanel Pro, iHost, ZB Bridge Pro, ZBDongle-E, Echo Plus, and other Zigbee 3.0 hubs. Local smart scenes continue even if Wi-Fi is down, and you can use it to trigger cameras, alarms, and push notifications upon unauthorized entry.
User Manual (PDF)SNZB-03P
CR2477
PC
Zigbee 3.0
-10℃~60℃
5-95%RH, non-condensing
6m(20f), 110°
FAQ
1. What could cause the device to be falsely triggered?
Small animals entering the detection area.
Direct exposure of the sensor to infrared radiation from sunlight, car headlights, or incandescent lamps.
Sudden temperature changes in the detection area caused by heating or cooling devices.
2. Why is the device failing to detect human presence?
Obstructions like glass, acrylic, or walls between the sensor and the target, which block infrared signals.
The target is either stationary or moving too quickly.
The ambient temperature is close to human body temperature.
3. How does Detection Duration work?
The SNZB-03P reports motion immediately when someone is detected and can trigger lighting via scene automation.
By default, Detection Duration is set to 1 minute, meaning it reports no motion 1 minute after a person leaves. This can be used to turn off lights via automation. The minimum configurable detection duration is 5 seconds.
4. How do I connect the device to the SmartThings platform?
If you have a SONOFF gateway: First pair the device with the SONOFF gateway. Then, use the Cloud-to-Cloud integration method. For detailed instructions, visit:
https://ewelink.cc/ewelink-works-with-smartthings/
If you have a SmartThings gateway: Follow the guide to install the necessary driver from the link below:
https://sonoff.tech/blogs/news/sonoff-products-integration-guide-for-smartthings-driver-installation
