*Requires Zigbee hub.
SONOFF Fusion Series Orb-ZBRBS Zigbee Smart Roller Shutter Wall Switch | MINI-ZBRBS-E
Tax included. Shipping calculated at checkout
【Precise Percentage Adjustment】Control indoor lighting according to your needs to enhance comfort and energy efficiency, while flexibly adapting to different scenarios.
【Scheduled Curtain Operation】Set curtain opening and closing times based on your routines, making daily life more convenient.
【Direction Reverse】When the motor wiring is reversed, there is no need to rewire. Simply activate this feature to reverse the rotation direction and ensure the equipment operates normally.
【Seamless Integration with Major Smart Home Platforms】Effortlessly integration Home Assistant (via ZHA & Zigbee2MQTT) for an automation setup.
【Zigbee Signal Booster】Orb-ZBRBS acts as a Zigbee router device, which helps extend your Zigbee network. Provides your entire smart home system with stronger signals and greater reliability.
Note: The Zigbee Hub is needed.
Technical details, troubleshooting or setup tips? Access the Orb-ZBRBS knowledge center for all the info you need.

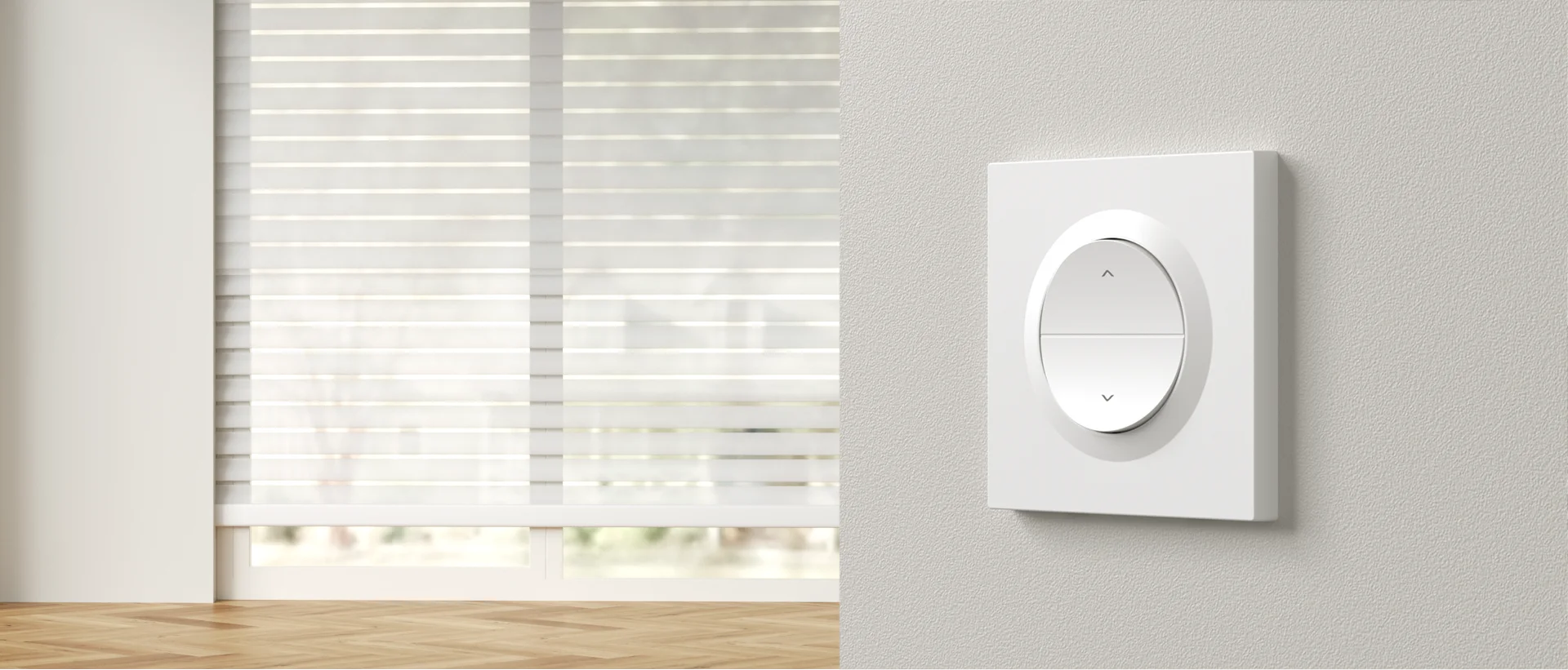

Roller Shutter Wall Switch—Orb-ZBRBS
Elevate Your
Curtain Experience!
Precise Percentage Control
Adjust roller blinds to pinpoint percentages: 30% for soft morning glow, 70% to filter harsh sunlight, or any shade in between.
Automate Your Lights with Custom Schedules
Set a timer to meet lighting needs for different time periods.
Leverage Smart Scenes to Protect Your Privacy
Voice Control, Made Life Easier
With a single command, say goodbye to cumbersome manual controls and enjoy unprecedented convenience for your roller blinds.

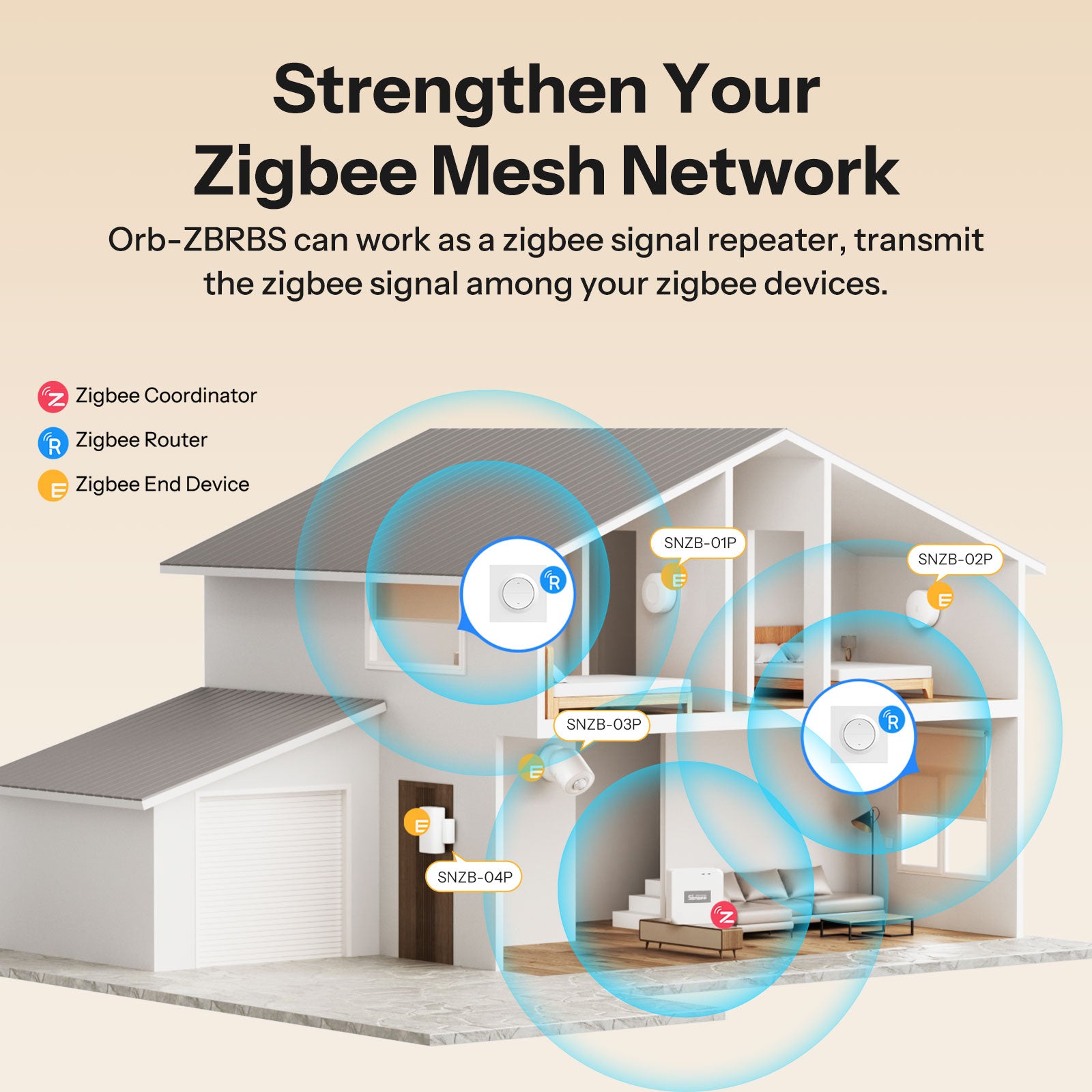

Strengthen Your Zigbee Mesh Network
Orb-ZBRBS can work as a zigbee signal repeater, transmit the zigbee signal among your zigbee devices.
Faster, Low-Latency
& Reliable
Enjoy faster response speeds, ultra-low
latency, and reliable performance even
when the internet is down.

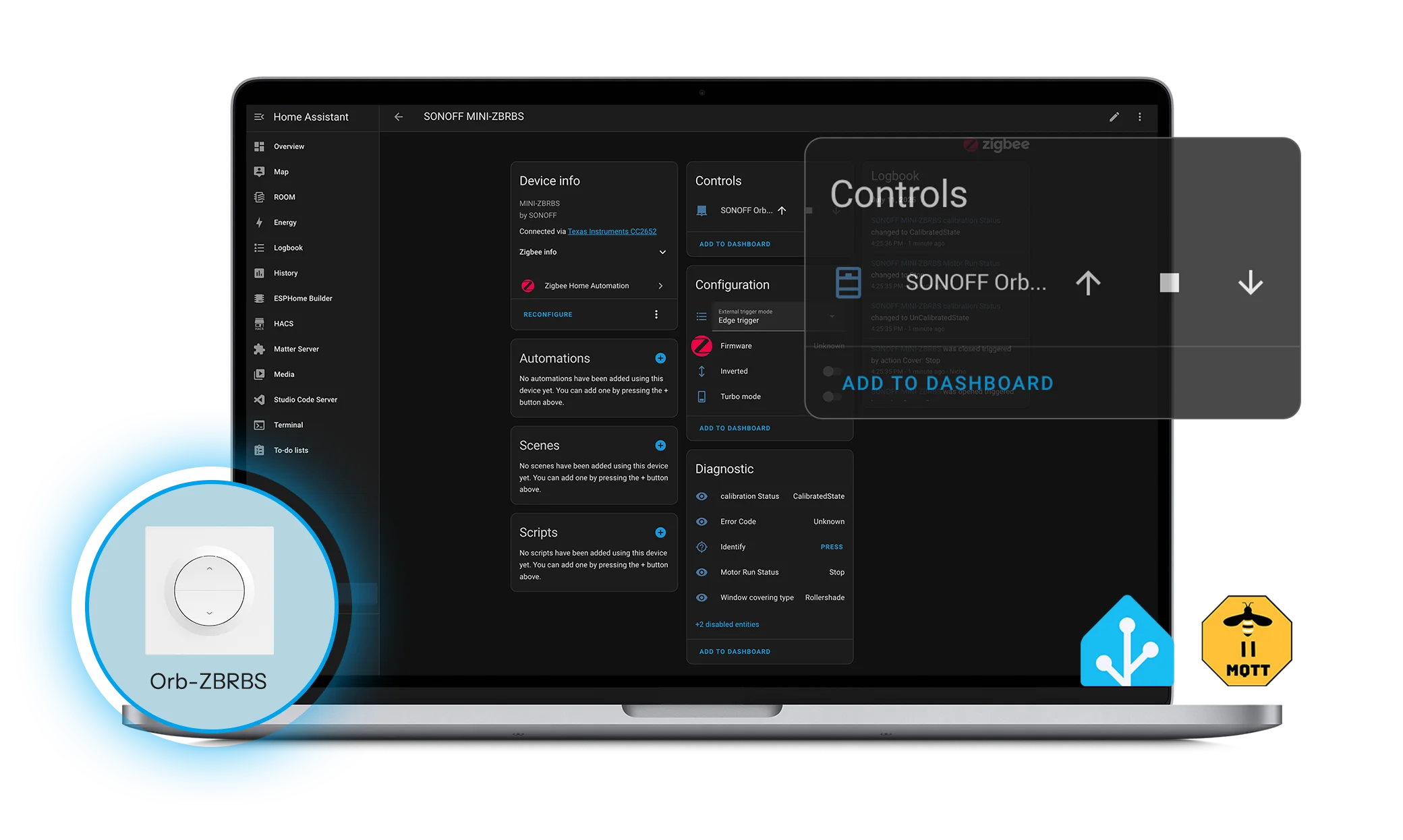

Integration with Third-party Platforms
Easily integrate your device into open-source platforms via Zigbee2MQTT or ZHA, creating a smart home solution that works seamlessly with devices from various manu facturers.
*Zigbee Dongle is required.(e.g ZBDongle-P, ZBDongle-E)

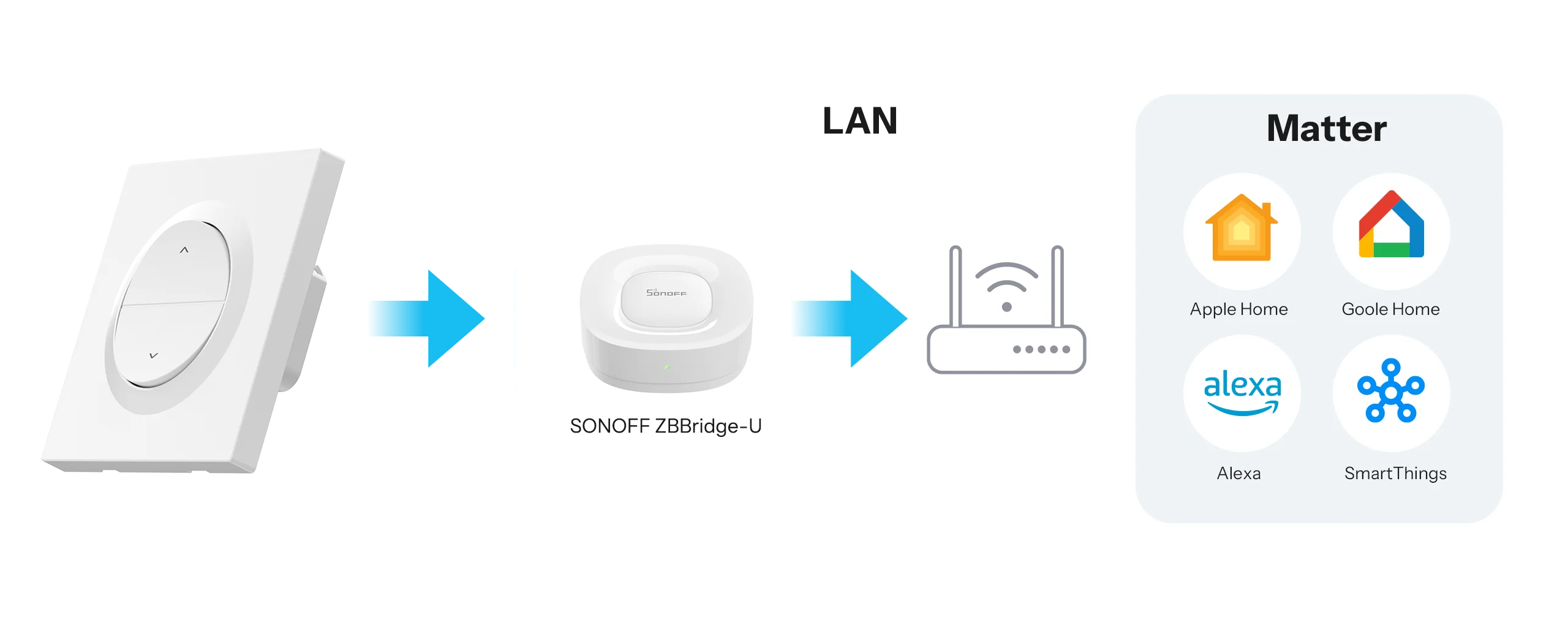

Matter Enabled
Keep the Zigbee Bridge Ultra and the Matter hub in the same LAN, then the Orb-ZBRBS can be seamlessly integrated with the Matter ecosystem.
Feature Overview
Use Extension
Use 3D-printed SONOFF sensor accessories to upgrade your wall switch into a smart control center.
Tap to get the accessory's 3D models >
Pair With SONOFF SNZB-01P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02D
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02WD
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-03P
Use open-source 3D-printed accessories
to pair with sockets from other brands.
Pair With SONOFF SNZB-01P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02D
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02WD
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-03P
Use open-source 3D-printed accessories
to pair with sockets from other brands.
Applicable Mounting Box
Wiring Instructions
4 Steps to Use
Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!
*Requires the compatible SONOFF Zigbee hub.
Specification
Specs & User Manual
Orb-ZBRBS is a Zigbee smart roller shutter wall switch that can easily upgrade regular electric curtains to smart curtains. It supports a maximum 1A load motor and, when paired with a Zigbee gateway, enables remote control via an app, scheduling on/off, and smart interconnection features. The device offers seamless integration with Home Assistant (via ZHA & Zigbee2MQTT) for automation, while also working as a Zigbee signal booster to extend network coverage and improve stability across your smart home.
User Manual (PDF)Product name
Orb-ZBRBS
Product series
Fusion series
Product type
Zigbee smart roller shutter wall switch
Model
MINI-ZBRBS-E
MCU
EFR32MG21
Rating
100-240V~ 50/60Hz 1A Max
Wireless connectivity
Zigbee 3.0
Net weight
84.1g
Product dimension
86x86x34mm
Color
White
Casing material
PC
Diameter of wiring(recommend)
18AWG to 14AWG SOL/STR copper conductor only
Working temperature
10T40 (-10℃~40℃)
Working humidity
5-95%RH, non-condensing
Certification
CE/RoHS
FAQ
1. What type of junction box is the Orb-ZBRBS compatible with?
Orb-ZBRBS is suitable for European standard round junction boxes with a diameter of 60mm and 86-Type junction boxes.
2. Can the motor run continuously in the same direction?
No. The motor should not operate in a single direction for more than 2 minutes. To prevent overheating and damage, the device will automatically enter a stop state after exceeding this time limit.
3. Can two or more curtain motors be connected in parallel and controlled synchronously through the Orb-ZBRBS?
No. Due to individual differences in each motor, even if the operating time is the same, the travel distance may not be consistent, making synchronous control impossible.
4. Does the device function as a Zigbee repeater?
Yes, Orb-ZBRBS has built-in Zigbee signal repeater functionality to help improve and stabilize your Zigbee network coverage.
5. Why can't the Orb-ZBRBS perform "automatic calibration" for the curtain motor?
If the motor power is too small, or the curtain type is not a roller blind, roller shutter, or projection screen, it may cause "automatic calibration" to fail. It is recommended to switch to "manual calibration" mode.
6. Does Orb-ZBRBS require a neutral wire?
Yes. Orb-ZBRBS requires a neutral wire for proper installation and operation.
