Interruttore intelligente Zigbee SONOFF MINI ONE | MINI-ZB1GS
Tasse incluse. Spedizione calcolata al checkout
【Carico fino a 16 A. Compatibilità più ampia】Grazie al relè aggiornato ad alte prestazioni, supporta carichi fino a 16 A, il 60% in più rispetto a ZBMINIR2. È compatibile con una gamma più ampia di dispositivi, per una maggiore flessibilità.
【Protezione intelligente dal surriscaldamento. Più sicurezza, by design】Il sensore di temperatura ad alta precisione integrato rileva l’aumento della temperatura in tempo reale. Quando la temperatura si avvicina alla soglia di sicurezza, il relè interrompe automaticamente l’uscita, offrendo ai dispositivi e alla casa una protezione attiva e ripristinabile.
【Dimensioni mini. Si adatta alle scatole da incasso standard】Grazie al design compatto, si installa facilmente nelle scatole da incasso conformi agli standard UE, nonché nelle scatole a parete di tipo 86 e 120, senza bisogno di modifiche.
【Binding Zigbee. Controllo locale diretto】Con il Binding Zigbee, puoi associarlo direttamente a dispositivi secondari Zigbee come interruttori wireless, sensori per porte e finestre e sensori di temperatura e umidità. Crea un collegamento di controllo locale diretto tra dispositivi, senza dipendere dall’automazione basata sul cloud.
【Automazione locale. Espansione della rete】Collegalo a Home Assistant e ad altre piattaforme tramite un dongle o un gateway Zigbee per un’automazione locale tra dispositivi. Può inoltre funzionare come router Zigbee per estendere e potenziare la tua rete Zigbee.
Technical details, troubleshooting or setup tips? Access the MINI-ZB1GS knowledge center for all the info you need.

Smartify Your Home Appliances
Equipped with various switching modes, the device ensures compatibility with the user's original physical switches, thereby enabling a more cost-effective retrofit.
*A wall box depth of 60 mm is recommended.
Enjoy Smart and Convenient Life

Controllo vocale

Timer intelligente

Scena intelligente
Zigbee Binding Enables Direct, Reliable Control
After a one-time setup in Home Assistant, your SNZB-01M button communicates directly with the MINI-ZB1GS—no gateway required.


Panoramica delle funzionalità
① Important: The current device requires Zigbee2MQTT version 2.12.1 or higher. If not updated to this version or above, the device may fail to connect properly or may lack full functionality.
② Important: Important: A pull request (#5186) adding full native support for the Sonoff MINI-ZB1GS (MINI ONE Zigbee Smart Switch) in ZHA has been submitted to the Home Assistant HA repository. However, it has not yet been merged by the Home Assistant team. Until the PR is officially merged, some device
capabilities may not be available through ZHA out of the box.
If you need complete functionality right away, you can manually configure the device using a script. Please refer to the SONOFF Help Center – MINI-ZB1GS Setup Note for detailed instructions and the required script. This also applies if you are using SmartThings.
Product Comparison

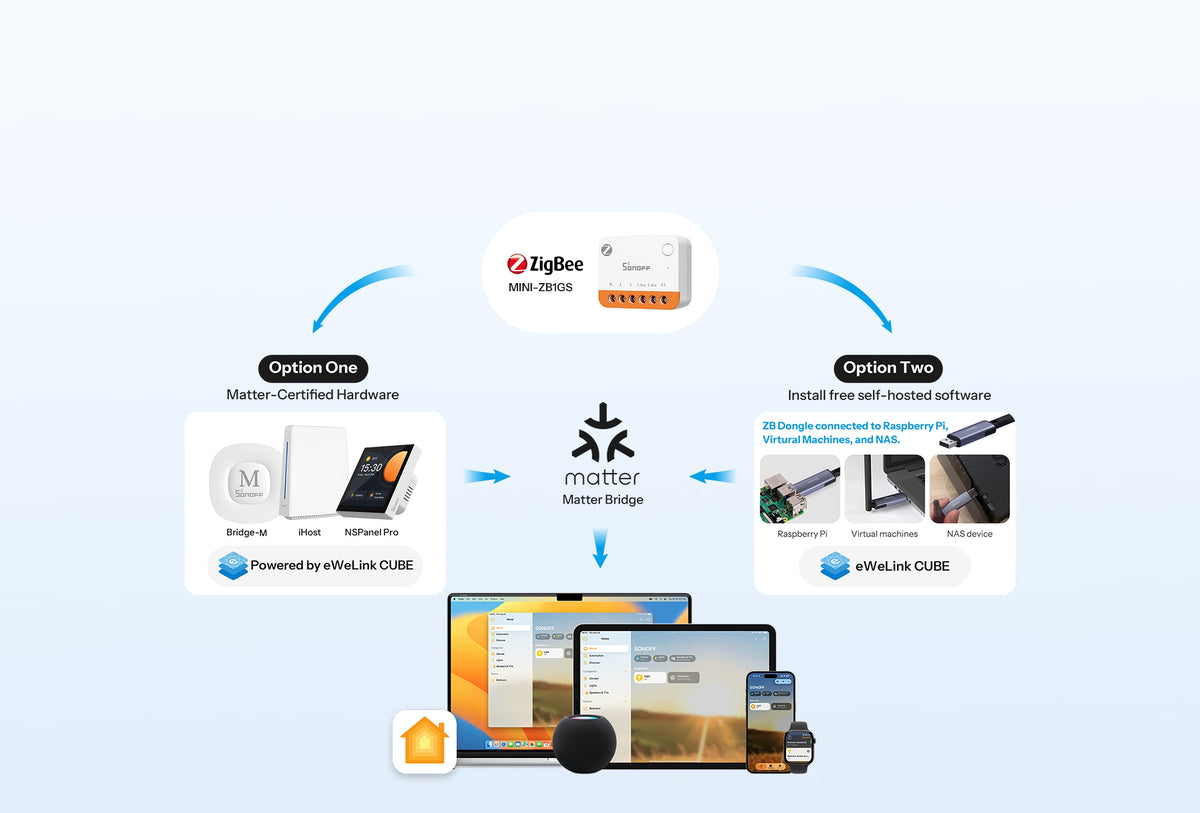

- Matter Bridge: Bridge-M, ZBBridge-U, iHost, Cube OS with SONOFF Zigbee Dongle
- This function requires adding the device to the eWeLink app via the SONOFF zigbee gateway and syncing it to third-party platforms through cloud-to-cloud integration.
- Direct access to Alexa/SmartThings ecosystems via dedicated ecosystem gateways.
Wiring Instructions
Compatible Mounting Box Sizes
4 Steps to Use
Specification
Specs & User Manual
MINI-ZB1GS is a Zigbee smart switch designed for safer, more flexible, and reliable control. Supporting up to 16A loads, it offers wider device compatibility than the ZBMINIR2. Built-in temperature sensing provides smart overheating protection, while its compact design fits standard EU, 86-type, and 120-type wall boxes without modifications. With Zigbee Binding, it enables direct local control with Zigbee devices. Connect it to Home Assistant and other platforms through a Zigbee dongle or gateway for local automation, and use it as a Zigbee router to extend your network.
User Manual (PDF)MINI Extreme Series Gen5
MINI ONE (Zigbee)
MINI-ZB1GS
Zigbee Smart Switch
16A 100-240V~ 50/60Hz Max Resistive Load μ
16A/3840W
Zigbee 3.0
IEEE 802.15.4
27.3g
39.5*33*16.8mm
PC
18 AWG to 14AWG (0.75mm² to 2.5mm²) SOL copper conductor only
Indoor
10T40 (-10℃~40℃)
10%~90% RH, non-condensing
CE/RoHS/FCC
FAQ
1. Does MINI-ZB1GS require a neutral wire?
Yes. MINI-ZB1GS requires a neutral wire for installation. Please make sure your switch box has both live and neutral wires available.
2. Does MINI-ZB1GS require a Zigbee gateway?
Yes.MINI-ZB1GSrequires a Zigbee gateway for realizing smart control.
3. What's the maximum load MINI-ZB1GS can support?
MINI-ZB1GSsupports a maximum load of 16A, suitable for most household lighting and appliances. Always ensure the connected device is within the rated capacity.
4. Can MINI-ZB1GS work with voice assistants?
Yes. When theMINI-ZB1GSwas added to the compatible SONOFF hub, and after binding a third-party account in the eWeLink app, voice control through a smart speaker will be enabled.
5. Can I use MINI-ZB1GS with my existing wall switch?
Absolutely! MINI-ZB1GS is designed to retrofit behind your existing wall switch, allowing manual and smart control at the same time.
6. What is the repeater function?
MINI-ZB1GS functions as a Zigbee signal repeater, extending the range and improving the stability of your Zigbee network when powered on and connected.
