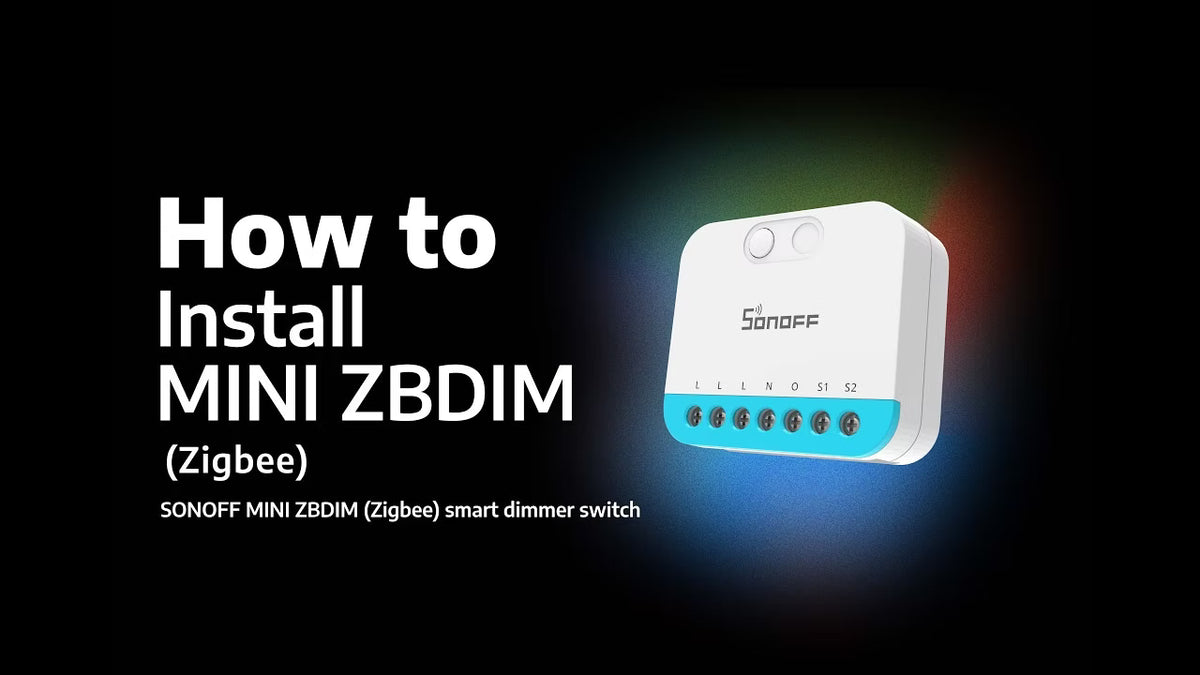

SONOFF MINI Extreme Zigbee Dimmer Switch | MINI-ZBDIM
Tax included. Shipping calculated at checkout
Buy 2, Get 10% OFF — Use Code: SOXMAS10
Buy 5, Get 15% OFF — Use Code: SOXMAS15
Technical details, troubleshooting or setup tips? Access the MINI-ZBDIM knowledge center for all the info you need.
SONOFF MINI Extreme Zigbee Dimmer Switch | MINI-ZBDIM
Sale price€26,90
Smart Dimming,
Understanding Light,
Understanding You
Zigbee Dimmer Switch—MINI DIM
Wide Compatibility—No More Hassle Choosing Lights.
Uses trailing-edge dimming technology for broader lamp compatibility, especially with modern dimmable LED lights.
Tune the Brightness Range to Fit Your Light
Different lamps have different dimming ranges. A simple brightness calibration helps the dimmer adapt better to your lamp, delivering smoother and more stable performance.
*Please perform brightness calibration before use.
Your Personal Energy Detective
Adjusting brightness instantly displays power output, enabling precise energy management.
Independent Control from Any Two Locations
It supports two momentary or rocker switches, each simultaneously controlling the same light. You can install the switches at any two locations for flexible, convenient control—no need to walk back and forth.
Smart Timer
Set timed, delayed, and recurring tasks at will to achieve autonomous lighting control.
Let the light guide you to sleep.
Gentle light eases nighttime fear and shuts off automatically.
Cyclic scheduling gives your home a steady rhythm.
Voice Control Frees Your Hands
In one command, set your custom brightness and say goodbye to cumbersome manual controls.
Different Switch Types at Your Disposal
Highly flexible and compatible with various external switch types, enabling not only on/off control but also step-by-step or gradual brightness adjustment
*For different switch mode control methods, please refer to the official FAQ.
To match your external switch, first set the switch mode: triple-press the device button 3 times, or select it in the eWelink app.
Ensuring Safe Use with High Quality
Works with Apple Home Via Matter Bridge
MINI-ZBDIM integrates into your Apple ecosystem via the Matter Bridge, enabling seamless control within an interconnected setup.
Extended
Zigbee Coverage
Eliminate dead zones and enjoy
whole-home connectivity. Equipped with
Zigbee 3.0, it works as a router to bridge
and reinforce connections,
ensuring stable and smooth coverage
in every corner of your home.
Compatible with Multiple Zigbee Hubs
Feature Overview
Integration with Third-party Platforms
Built on the Zigbee 3.0 standard, this device effortlessly connects with a wide range of third-party platforms, enabling you to create a flexible and scalable smart home setup.
Choose Your MINI DIM
Wiring Instructions
Compatible Mounting Box Sizes
Package
Specifications
Specs & User Manual
MINI-ZBDIM is a Zigbee smart switch designed for reliable and flexible lighting control. It supports a wide range of loads, including dimmable LEDs, incandescent and halogen lamps, and electronic transformers, and can seamlessly integrate with Alexa, Google Assistant, and IFTTT. With smooth and stable dimming, real-time power monitoring, advanced overheat protection, intelligent scene settings, and support for voice and app control, MINI-ZBDIM delivers safe, smart, and effortless lighting management.
User Manual (PDF)Model
MINI-ZBDIM
Product series
MINI Extreme series
Rated voltage
220-240 V
Rated frequency
50Hz
Max. load
2A
Net weight
24.5g
Product dimension
45x39.4x16.8mm
Working temperature
-10℃~40℃
Casing material
PC
FAQ
1. Does MINI ZBDIM support voice control?
Yes. Once added to the eWeLink platform, it can be integrated with third-party services such as Amazon Alexa, Google Assistant, or Home Assistant for voice control.
2. Can MINI ZBDIM fit inside a standard wall switch box?
Yes. With its ultra-compact design, it can be easily installed inside standard wall switch boxes without taking extra space.
3. What types of loads are supported?
MINI ZBDIM is compatible with the following load types:
- Dimmable LED lamps: up to 200VA
- Incandescent bulbs: up to 400W
- Halogen bulbs: up to 400W
- Dimmable electronic transformers: up to 200W
4. Which third-party platforms is MINI ZBDIM compatible with?
MINI ZBDIM supports third-party platforms like Home Assistant and Zigbee2MQTT when paired with the SONOFF Dongle, enabling cross-brand device integration.
5. How to perform automatic dimming calibration?
- Using the eWeLink app, calibration can be done via the app or by pressing and holding the device button for 10 seconds
- With third-party apps, press and hold the button for 10 seconds
The LED will show a breathing light during the calibration process.
6. What types of external switches are compatible and how to control the device using external switches?
MINI ZBDIM supports the following external switch types:
- Single Rocker (1-Way Paddle Switch
— S1 or S2: Short press to turn on/off
- Single Push Button (1-Way Momentary Switch)
— S1 or S2: Short press to turn on/off
— Press and hold to brighten on the first use, and press and hold again to dim
- Dual Push Button (1-Way Momentary Switch)
— S1: Short press to turn on, long press to increase brightness
— S2: Short press to turn off, long press to decrease brightness
- Triple Push Button (3-Way Momentary Switch)
— S1: Short press for step-up brightness, long press for smooth increase
— Middle Key: On/Off
— S2: Short press for step-down brightness, long press for smooth decrease
*Note:
- Before use, please set the switch mode to match your external switch type via a triple-press of the device button or in the eWeLink app
- By default, for dual and triple push buttons, S1 controls On/Brightness and S2 controls Off/Dimming. This assignment can be changed in the eWeLink app
7. Why can't I find the entry for manual calibration?
If you cannot find the manual brightness calibration entry, please check and OTA upgrade your device firmware to the latest version.
