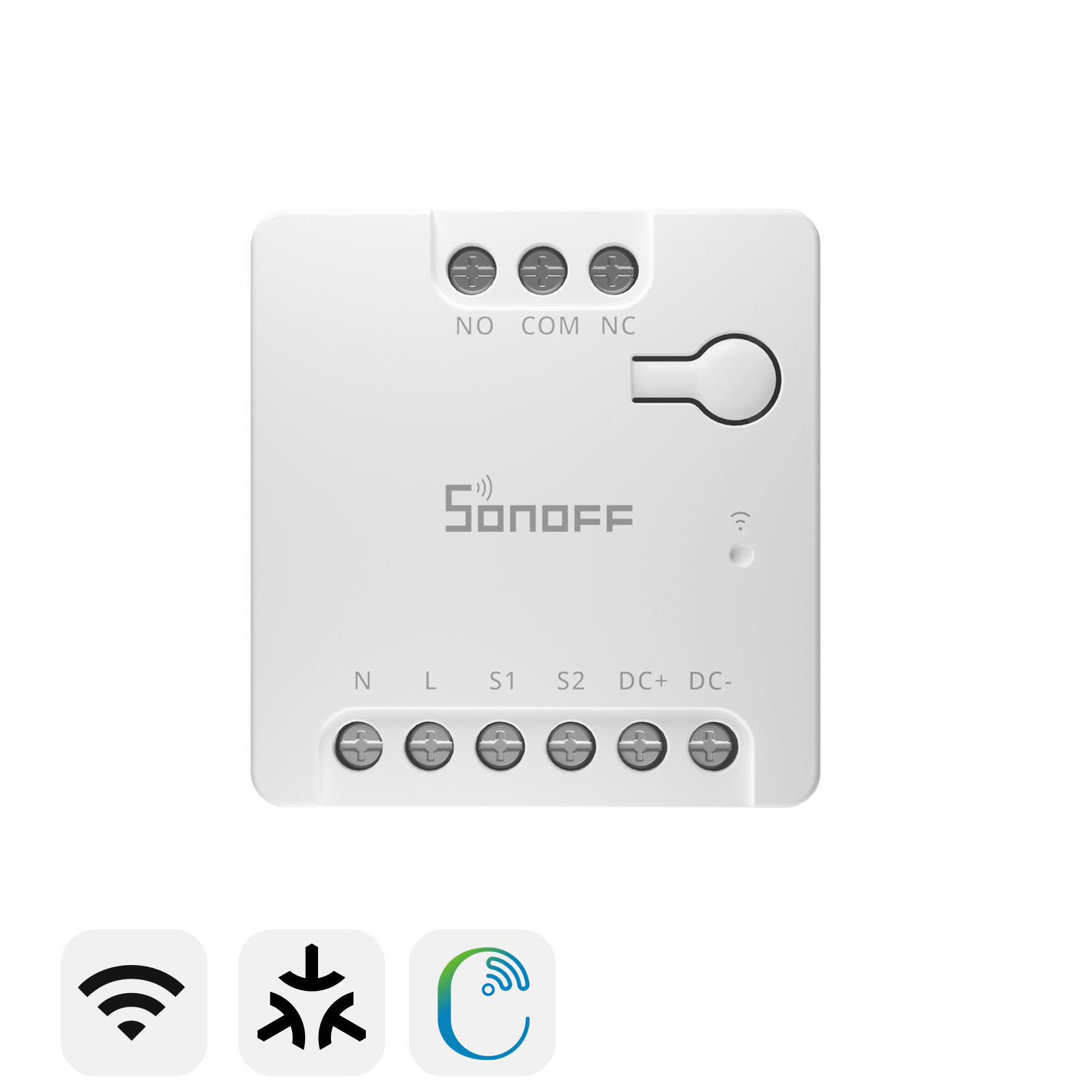

SONOFF MINI Dry Wi-Fi Smart Switch | MINI-D
Tax included. Shipping calculated at checkout
【Matter-Compatible – Cross-Platform Smart Home Integration】The SONOFF MINI-D is a Matter-certified smart switch, designed for seamless integration with Matter-enabled platforms, including Amazon Alexa, Google Home, Apple Home, Home Assistant, and more. Enjoy effortless control of smart devices from different brands, all through one unified ecosystem. Build a truly interoperable smart home with Matter technology.
【Flexible AC/DC Power Supply Support】Designed for versatility, the MINI-D supports powered by AC (100–240V) or DC (12–48V) power sources, enabling easy installation in residential, industrial, or custom control environments. Perfect for various wiring scenarios and locations.
【Dry Contact Output – Supports NO & NC Configurations】The SONOFF MINI-D features dry contact output with both Normally Open (NO) and Normally Closed (NC) options, allowing flexible control of a wide range of signal-based systems. It’s ideal for operating boilers, garage door openers, access control panels, and other devices that rely on non-voltage triggering. Perfect for integrating smart control into traditional low-voltage or relay-based systems.
【Optimized for DC Low-Power Motors (Max 8W)】Specially engineered to control low-power DC motors or solenoid valves (up to 8W), the MINI-D offers an ideal solution for smart irrigation, motorized curtains, or gate systems that run on low-voltage DC circuits.
【Integrated with Contactor Control – Manage High-Power Loads Safely】When paired with a contactor, MINI-D allows a low-power control circuit to safely switch high-power electrical systems, such as industrial equipment or HVAC units. This not only increases safety and energy efficiency but also allows precise smart control over large loads.
Technical details, troubleshooting or setup tips? Access the MINI-D knowledge center for all the info you need.
SONOFF's First MINI
Dry Contact Device with Matter
MINI Dry Wi-Fi Smart Switch (Dry Contact Relay)
Easy Control via the Matter Ecosystem
Matter breaks down barriers between different smart home ecosystems. It is designed to work across different platforms, including major operating systems and ecosystems like Amazon Alexa, Google Home, and Apple Home, making it easier for users to manage their smart home ecosystem, improve interoperability, and enhance overall user experience.

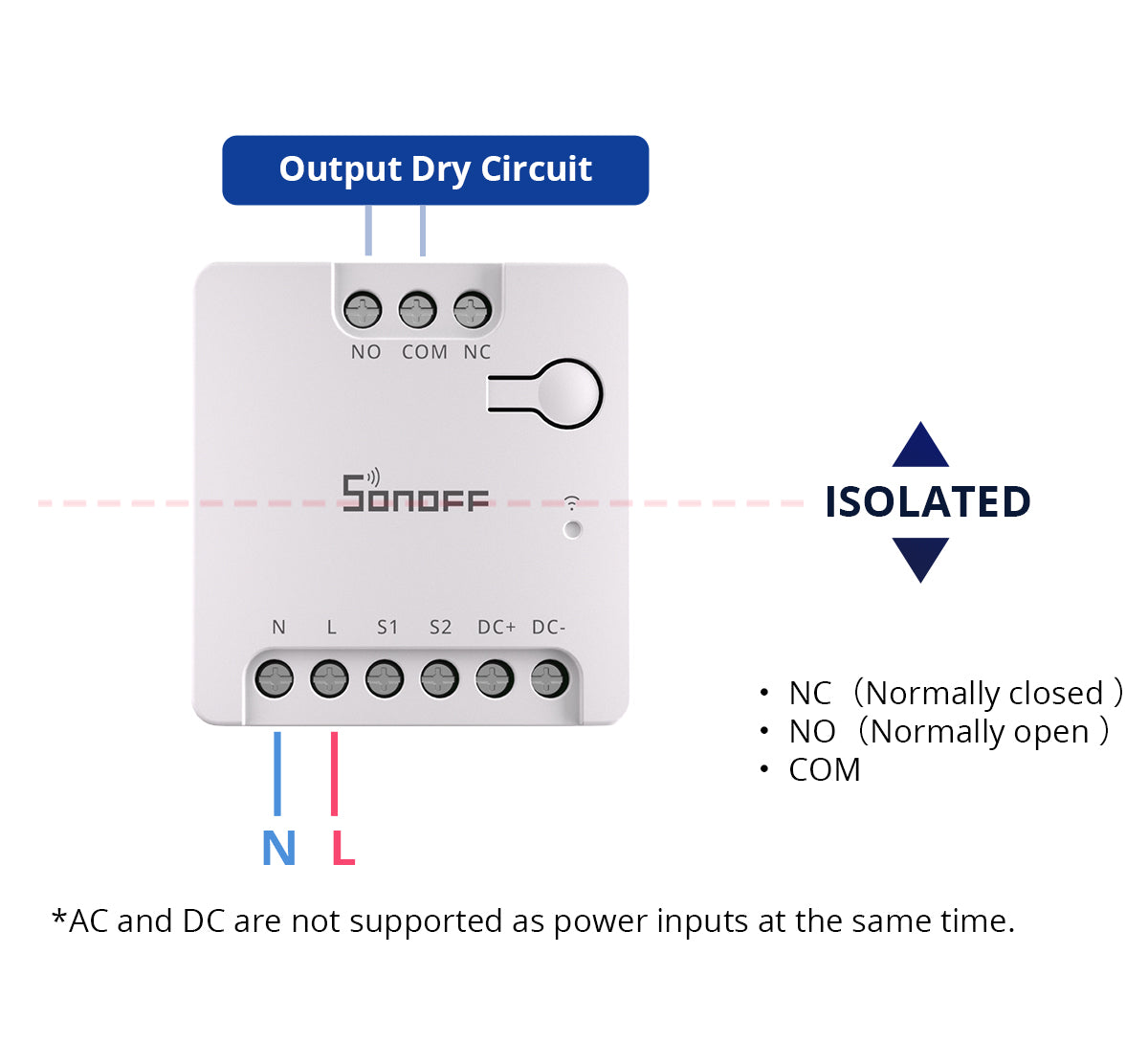

A Signal to Control Isolated Circuit
Dry contact (Voltage-free contact) acts purely as a bridge for signal transmission between two points, typically in the form of an open or closed circuit that does not have a direct power supply. The power supplied to the module is completely isolated from the switched load, which helps prevent electrical faults and enhances safety.

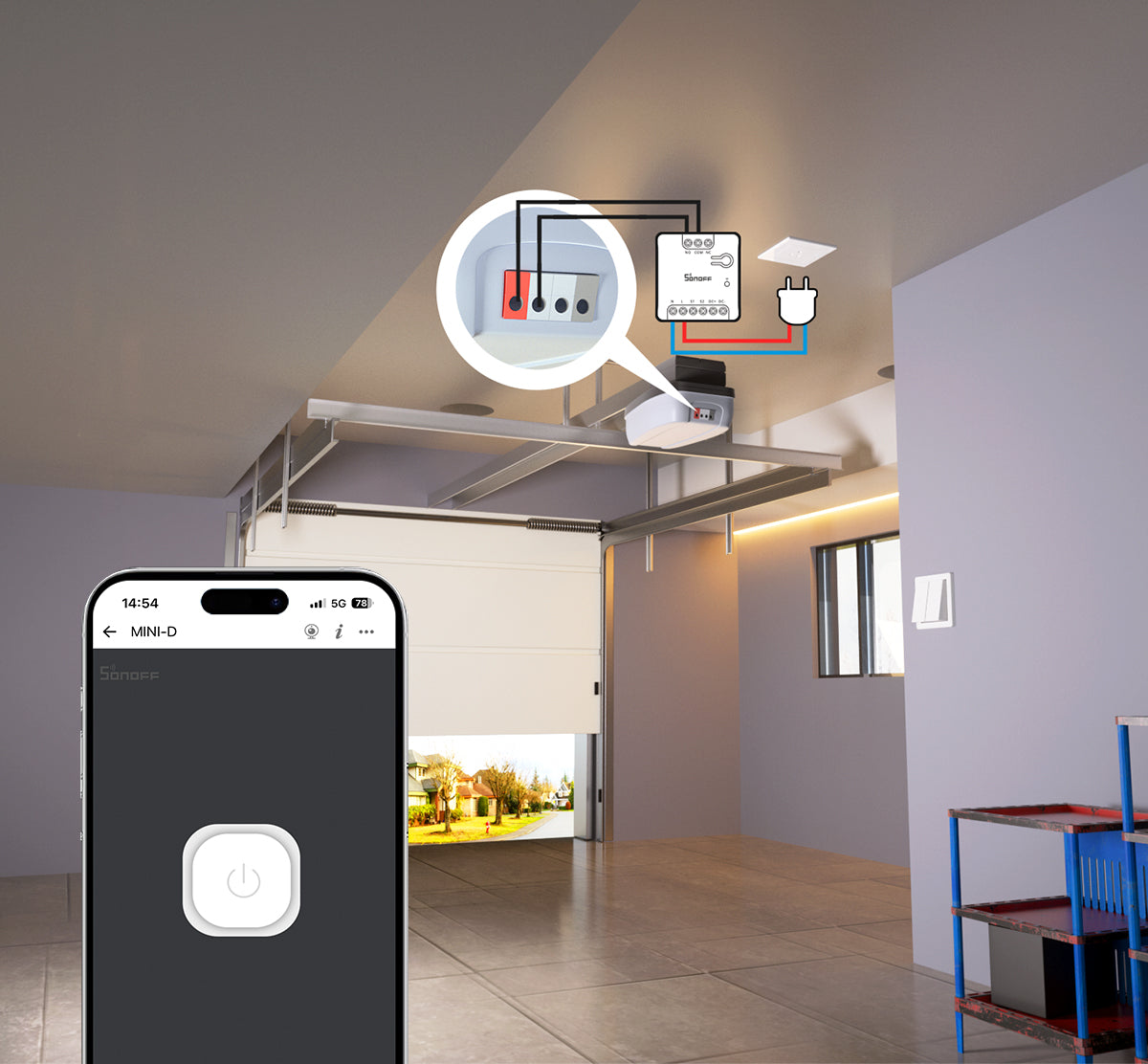

Upgrade Your
Garage Door System

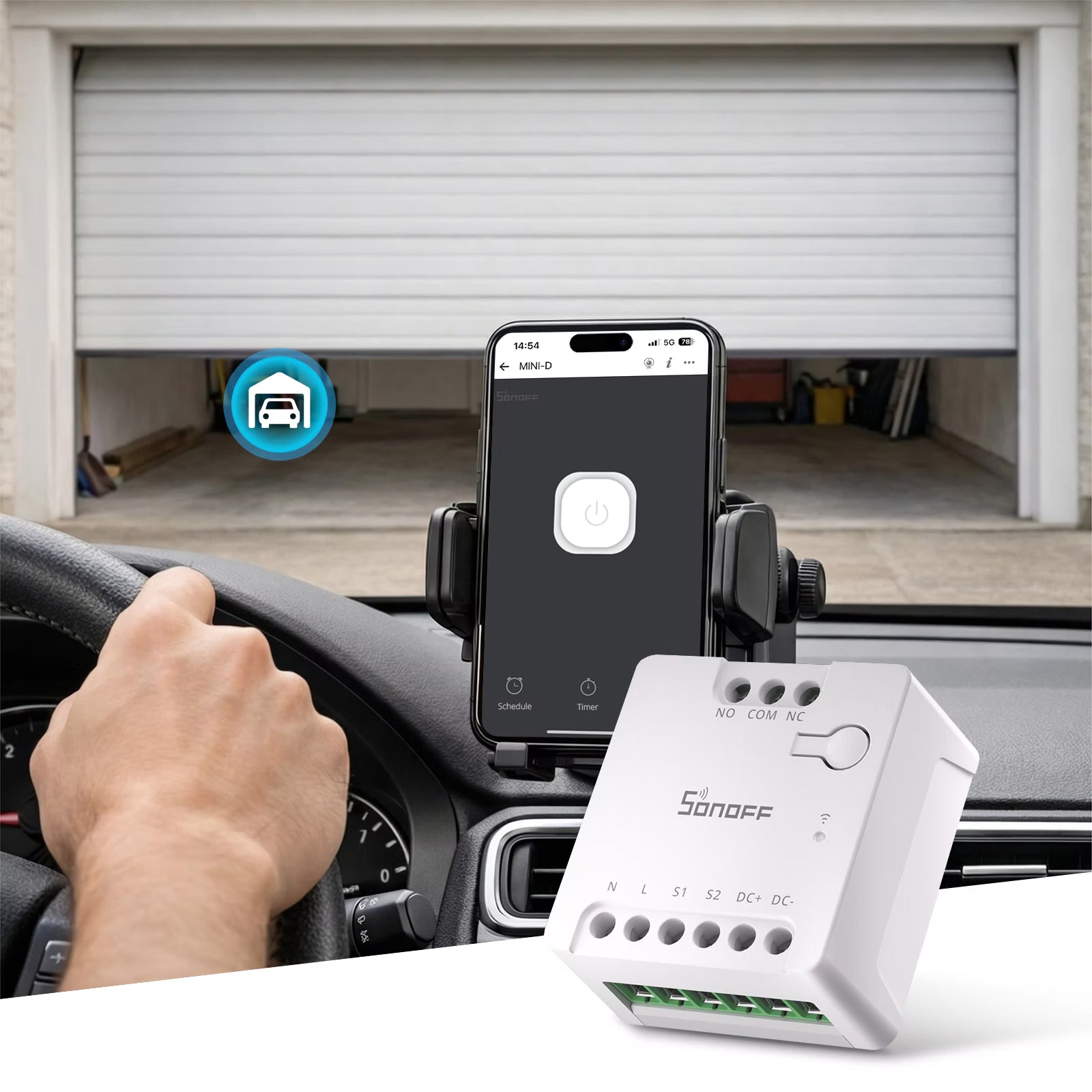

Make your garage door smart with MINI-D which offers remote control and seamless automation. You can open or close your garage door from anywhere using a smartphone app. Upgrading to a smart garage door system provides greater control.

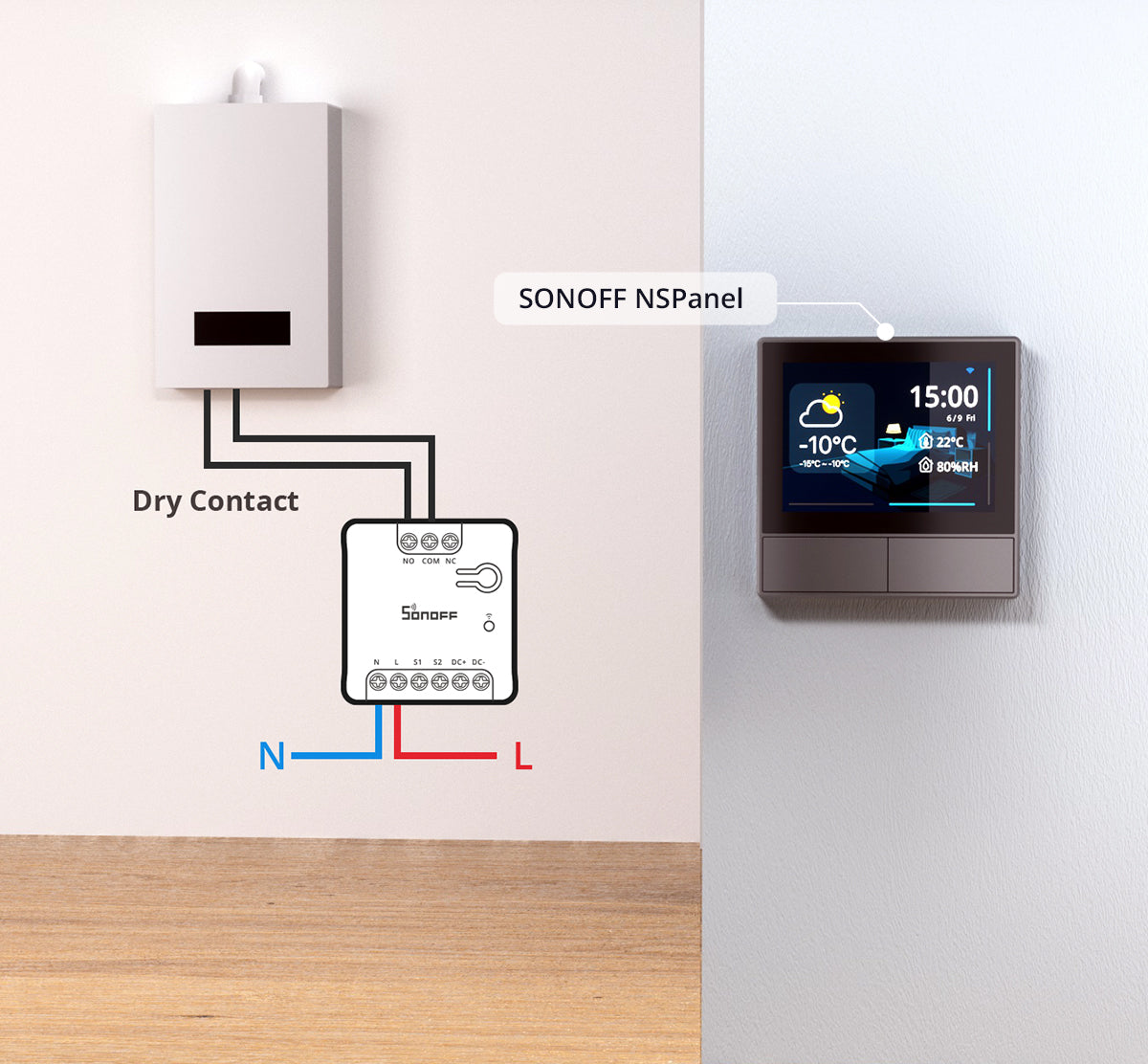

Building A Thermostat
Automation System
An automated thermostat system offers intelligent temperature control for homes and buildings,
optimizing comfort and energy efficiency. Its smart schedule can be customized according to your habits and is also integrated with other smart home devices. This not only enhances convenience but also helps reduce energy consumption, leading to lower bills and a more sustainable living environment.

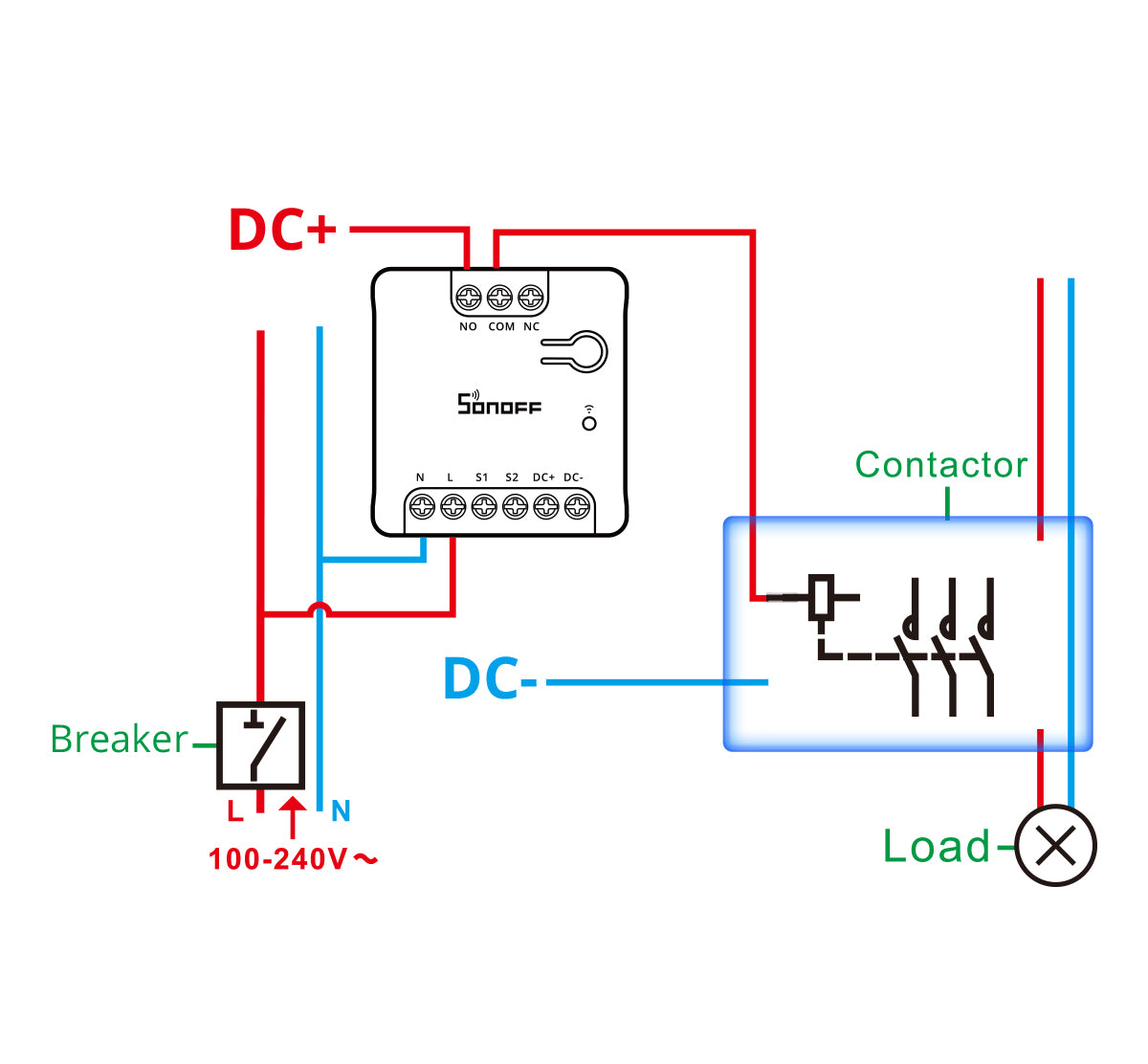

Controlling A Large Current
with A Small Current
MINI-D has a relay with a rated current output of 2A. When integrated with the contactor, a low-power control circuit can safely and efficiently manage high-power systems without direct user intervention, which enhances safety, reduces power consumption in control circuits, and provides precise control over larger loads.
A Signal to Control Isolated Circuit
Dry contact (Voltage-free contact) acts purely as a bridge for signal transmission between two points, typically in the form of an open or closed circuit that does not have a direct power supply. The power supplied to the module is completely isolated from the switched load, which helps prevent electrical faults and enhances safety.
Upgrade Your
Garage Door System
Make your garage door smart with MINI-D which offers remote control and seamless automation. You can open or close your garage door from anywhere using a smartphone app. Upgrading to a smart garage door system provides greater control.
Building A Thermostat
Automation System
An automated thermostat system offers intelligent temperature control for homes and buildings,
optimizing comfort and energy efficiency. Its smart schedule can be customized according to your habits and is also integrated with other smart home devices. This not only enhances convenience but also helps reduce energy consumption, leading to lower bills and a more sustainable living environment.
Controlling A Large Current
with A Small Current
MINI-D has a relay with a rated current output of 2A. When integrated with the contactor, a low-power control circuit can safely and efficiently manage high-power systems without direct user intervention, which enhances safety, reduces power consumption in control circuits, and provides precise control over larger loads.

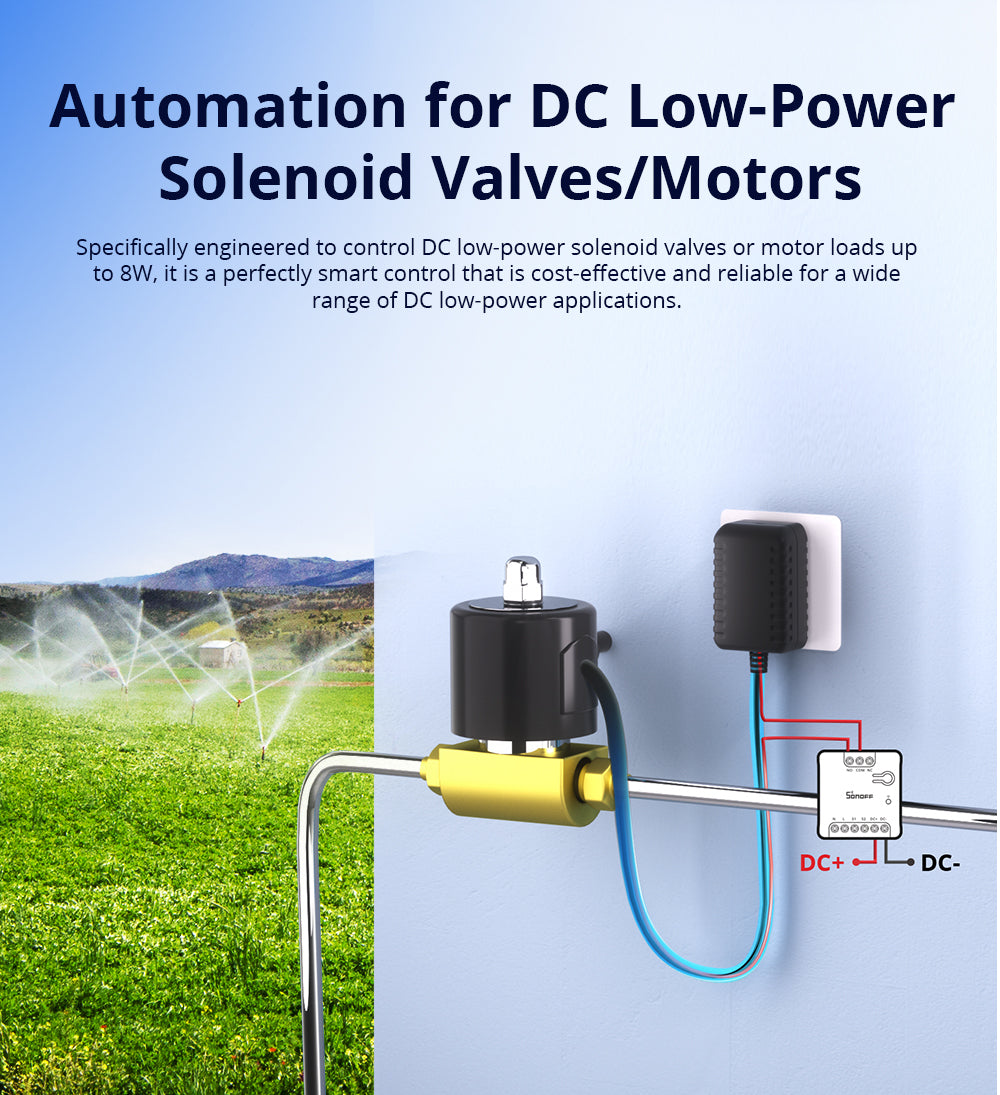

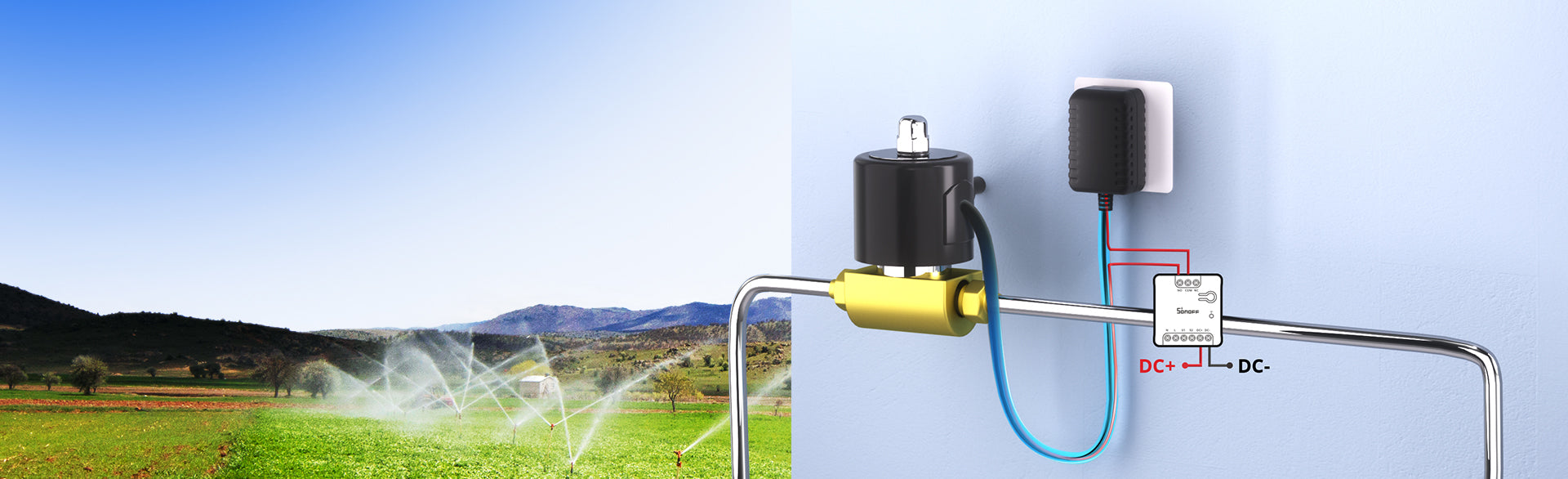

Automation for DC Low-Power
Solenoid Valves/Motors
Specifically engineered to control DC low-power solenoid valves or motor loads up to 8W,
it is a perfectly smart control that is cost-effective and reliable for a wide range of DC
low-power applications.

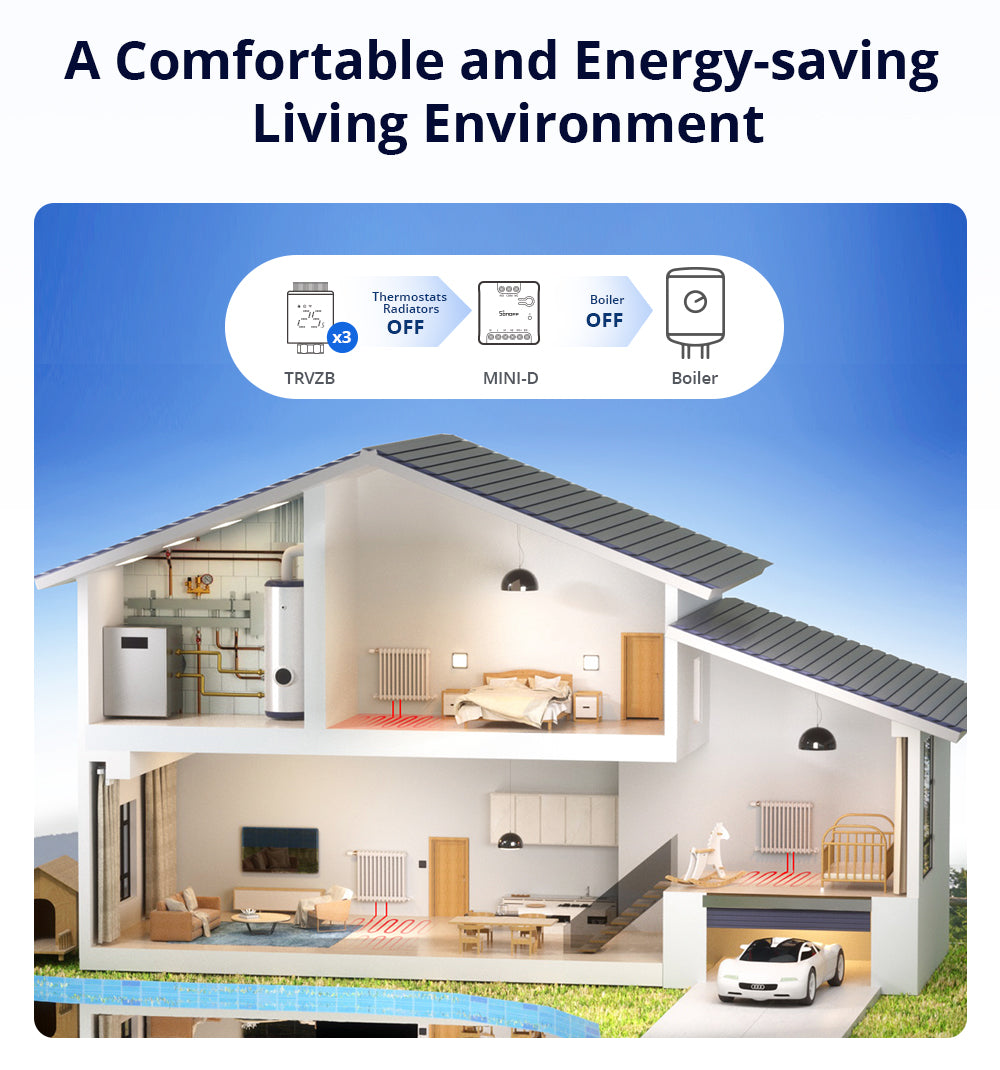

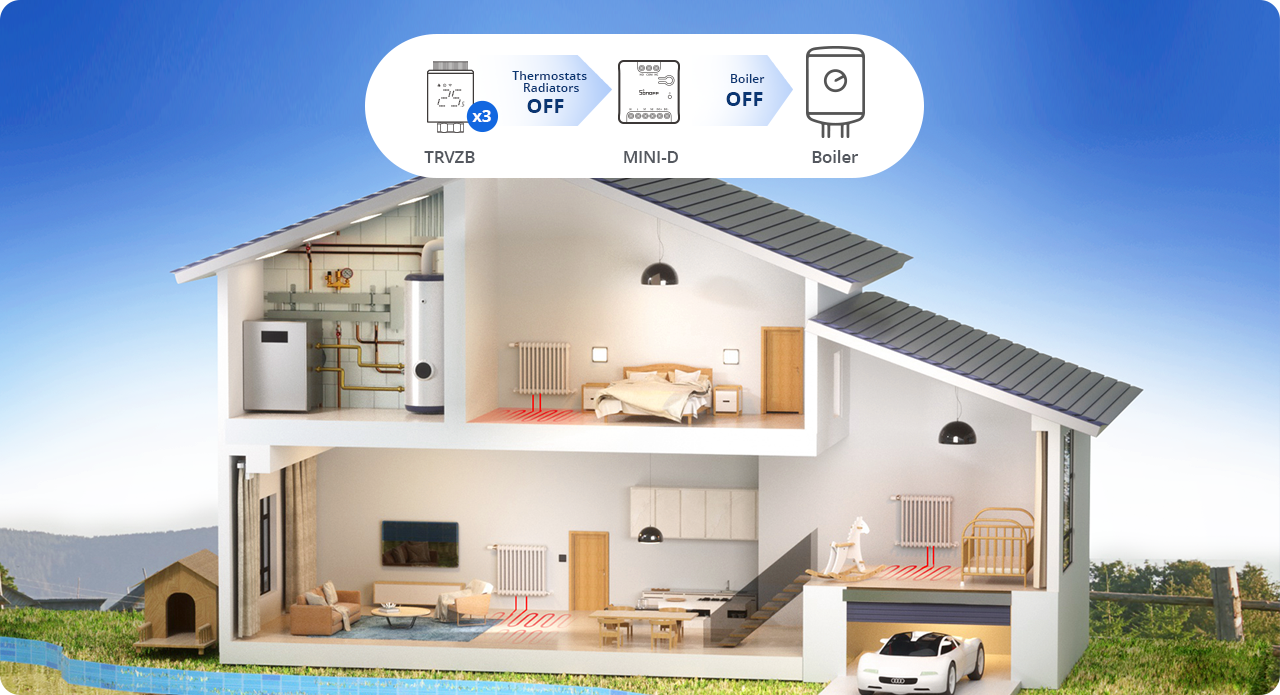

A Comfortable and Energy-saving
Living Environment
Applications

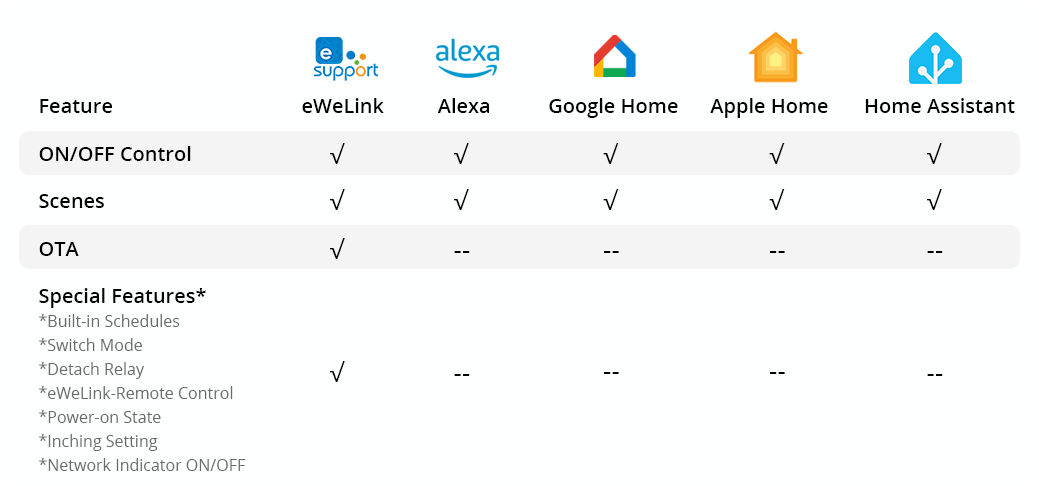

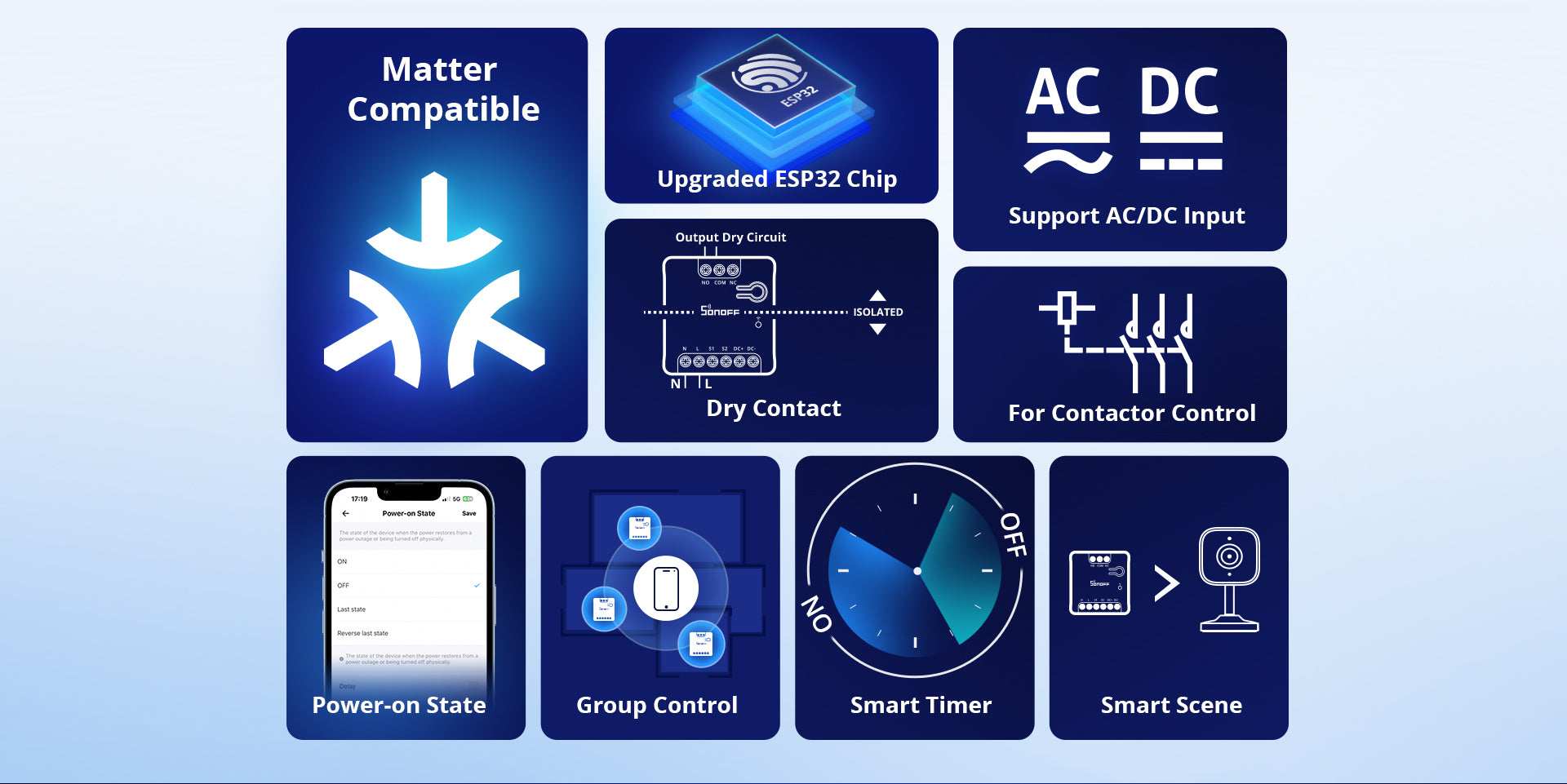

Feature Overview
Explore More Possibilities

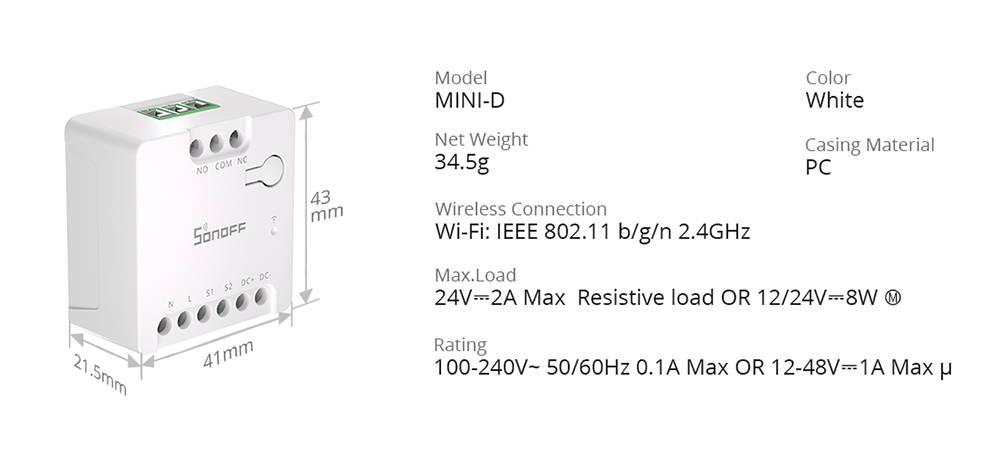

Specifications
Specs & User Manual
SONOFF MINI-D is a Matter-enabled smart switch with dry contact output, supporting both NO/NC configurations. Compatible with AC (100–240V) and DC (12–48V) power, it’s perfect for smart control of low-voltage devices like garage doors, boilers, and DC motors (≤8W). Seamlessly integrates with Apple Home, Alexa, Google Home, and Home Assistant—ideal for advanced home and industrial automation.
User Manual (PDF)MINI-D
IEEE 802.11 b/g/n 2.4GHz
24V⎓2A Max Resistive load OR 12/24V⎓8W Motor Load
100-240V~50/60Hz 0.1A Max OR 12-48V⎓1A Max μ
White
PC
34.5g
FAQ
1. What is MINI-D?
MINI-D is a Wi-Fi-enabled dry contact smart switch designed to control motors, garage doors, and other dry contact input devices. It supports remote control, voice control, and more via a mobile app.
2. What type of power supply does MINI-D support?

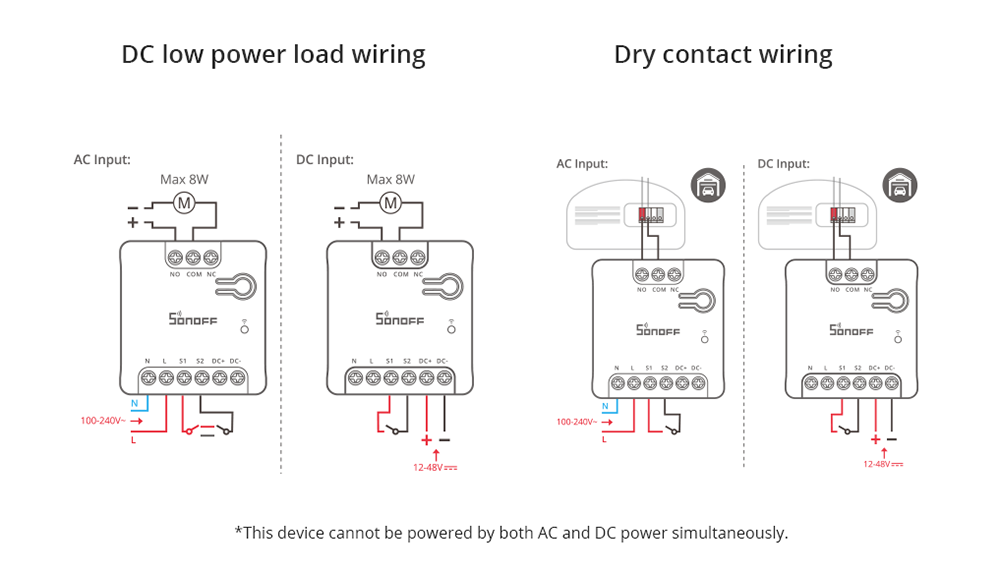

MINI-D supports both AC (alternating current) and DC (direct current) power inputs. Please refer to the product specifications for the exact voltage ranges. Note: Do not connect AC and DC power sources at the same time.
3. What types of loads are supported by the MINI-D output terminal?
Dry-contact input devices: Such as garage door motors and boilers in temperature control systems, which are triggered by a dry contact signal.
Low-power DC devices: Including small DC motors or solenoid valves, with a maximum load of 8W.
Note: The output terminal of the MINI-D supports only DC loads. AC loads are not supported and should not be connected under any circumstances.
4. Can I use MINI-D with other platforms like Apple HomeKit or SmartThings?
Yes, if those platforms support the Matter protocol. Please refer to the "Key Features >> Matter Platform" section for specific compatibility and feature limitations.
5. Does MINI-D require a separate hub?
No hub is required when using the eWeLink app. However, a Matter-compatible hub is needed to connect with Matter platforms.
