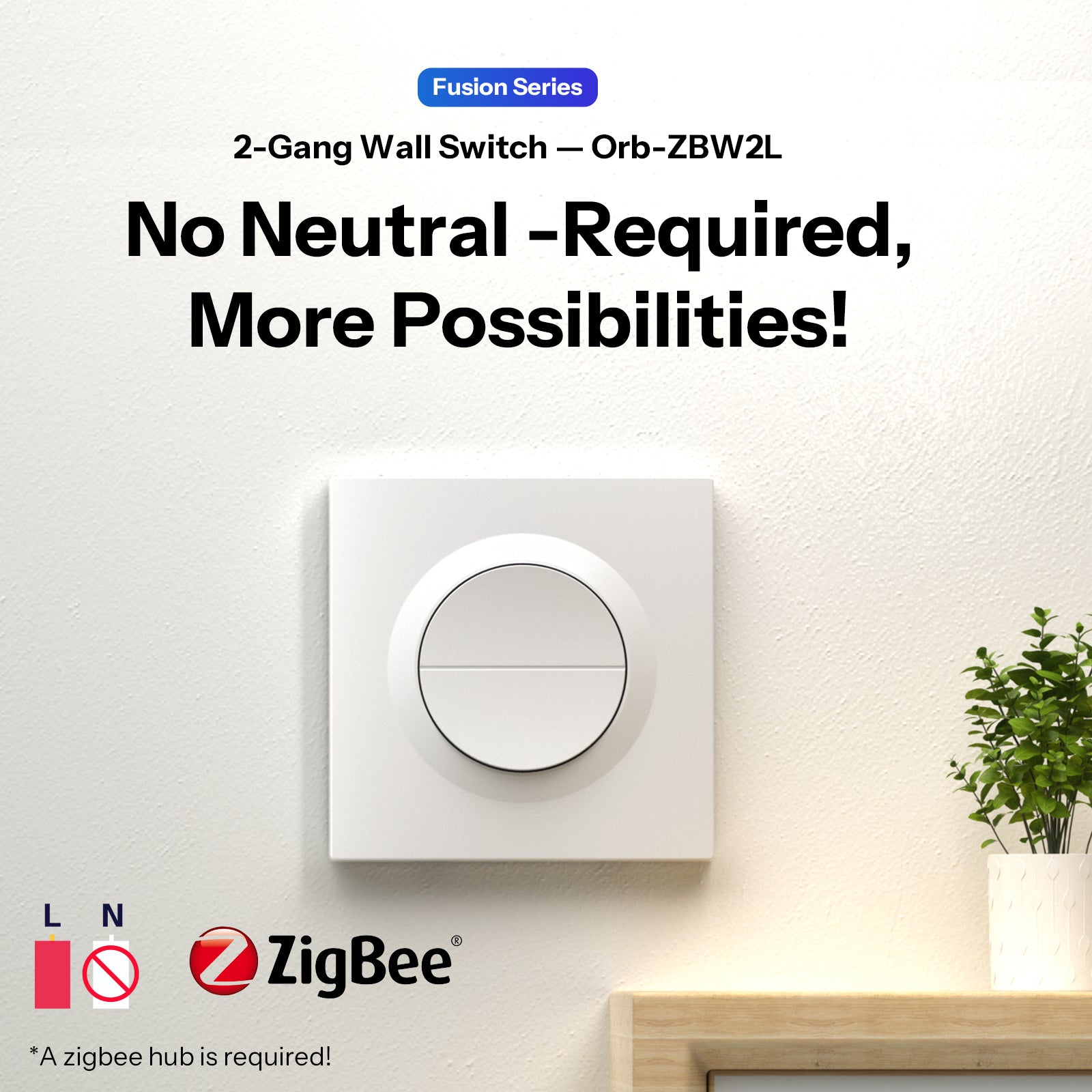

SONOFF Orb-ZBW2L Zigbee Double Smart Wall Switch | MINI-ZB2GS-L-E
Tax included. Shipping calculated at checkout
Buy 2, Get 10% OFF — Use Code: SOXMAS10
Buy 5, Get 15% OFF — Use Code: SOXMAS15
Technical details, troubleshooting or setup tips? Access the Orb-ZBW2L knowledge center for all the info you need.
SONOFF Orb-ZBW2L Zigbee Double Smart Wall Switch | MINI-ZB2GS-L-E
Sale price€24,58
2-Gang Wall Switch — Orb-ZBW2L
No Neutral Required,
More Possibilities!

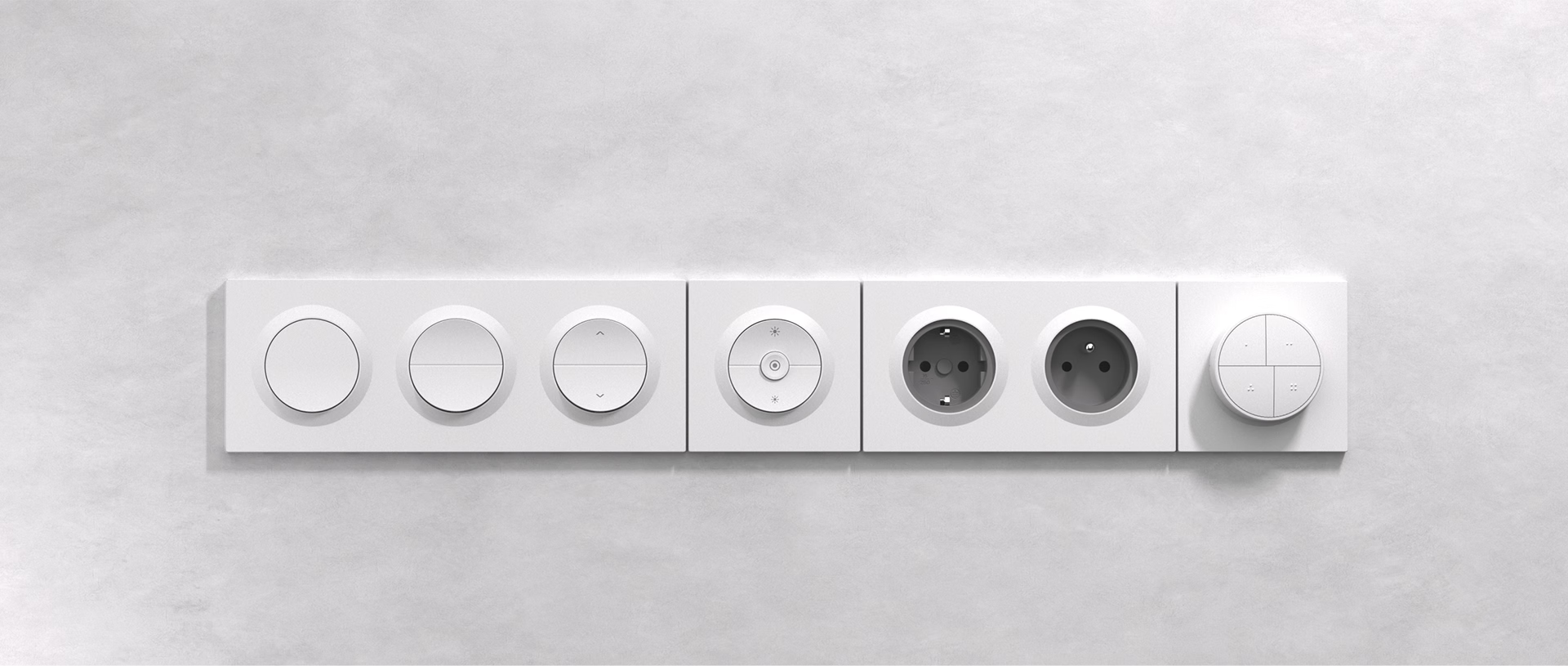

Fusion Series Overview
2-Gang Wall Switch — Orb-ZBW2L
*Use with SONOFF Fusion Series Switch Frame (sold separately).
*The dimmer switches and wall sockets of the Fusion Series will be released in the near future.
*The dimmer switches and wall sockets of the Fusion Series will be released in the near future.
Engineered for Safety and Reliability
Delivering unwavering safety and stability for your smart home, day in and day out.

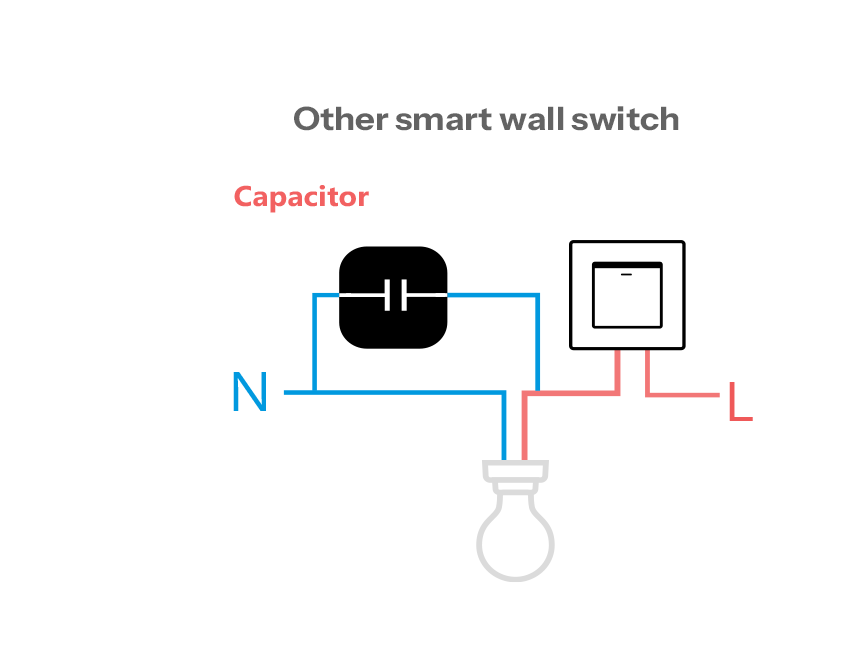

A Time-Saving and Labor-Saving Choice
3W load smart control, easy to nail – no extra anti-flicker module needed.
Multiple Possibilities

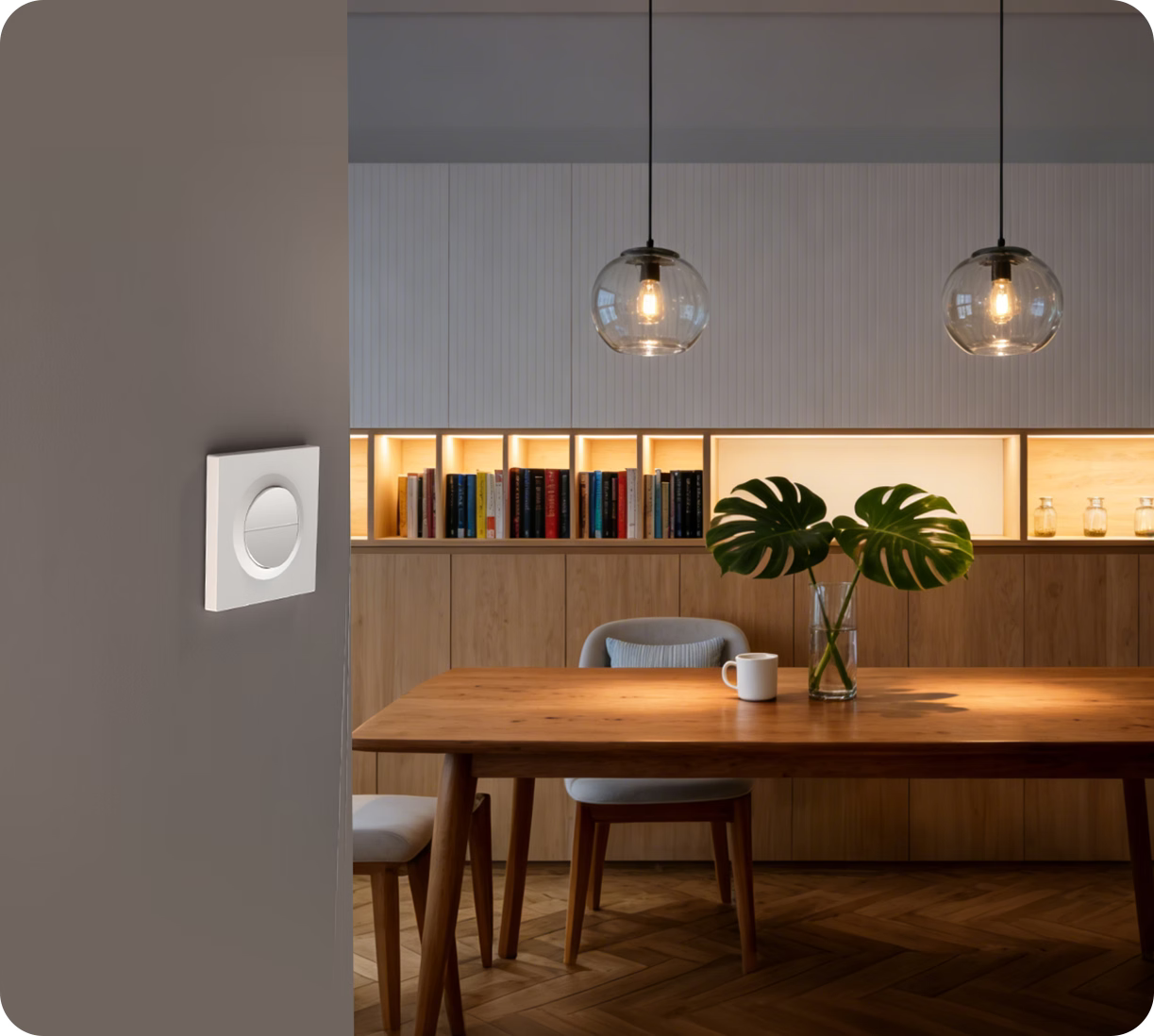

Dual Load Control
Control dual loads and simplify your space.
Set Timers
Turn on/off your appliances automatically.
Smart Scene
Make your life smarter and simpler
with smart scenes.
Voice Control
Free your hands and control devices with one command.
Dual Load Control
Control dual loads and simplify your space.
Set Timers
Turn on/off your appliances automatically.
Smart Scene
Make your life smarter and simpler
with smart scenes.
Voice Control
Free your hands and control devices with one command.
Never Worry About Smart Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times.

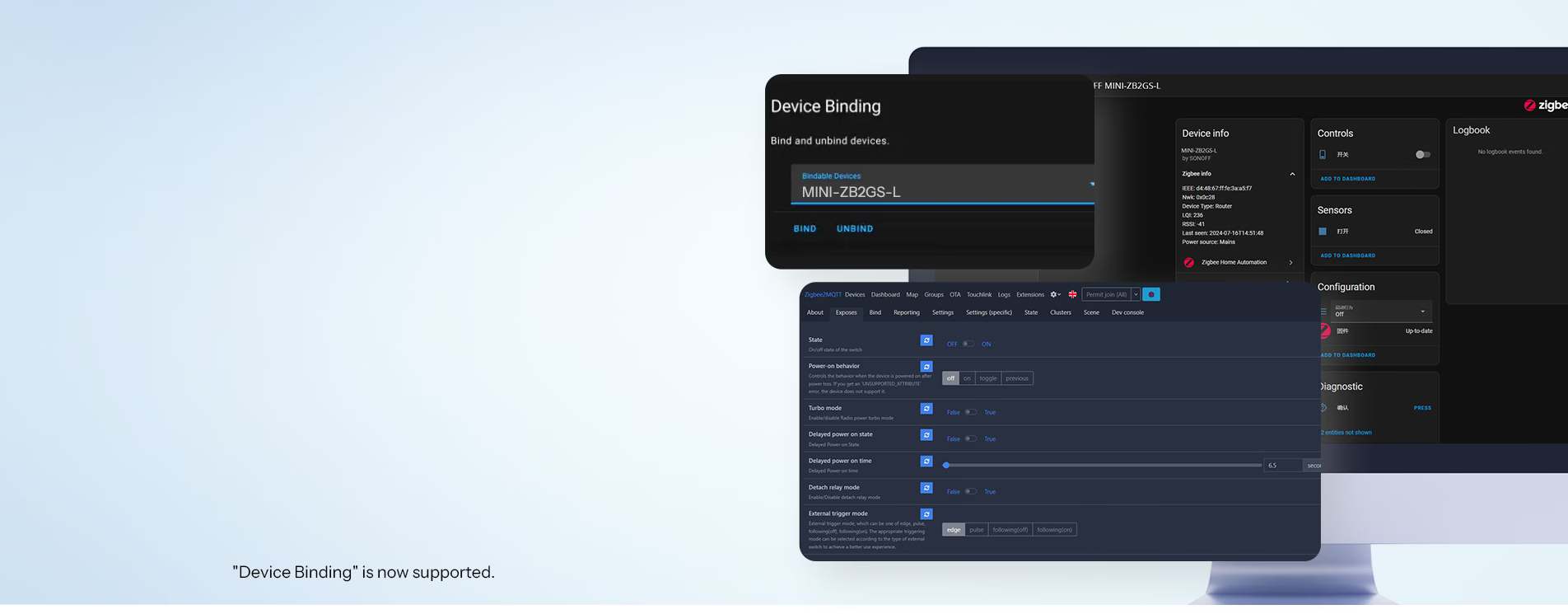

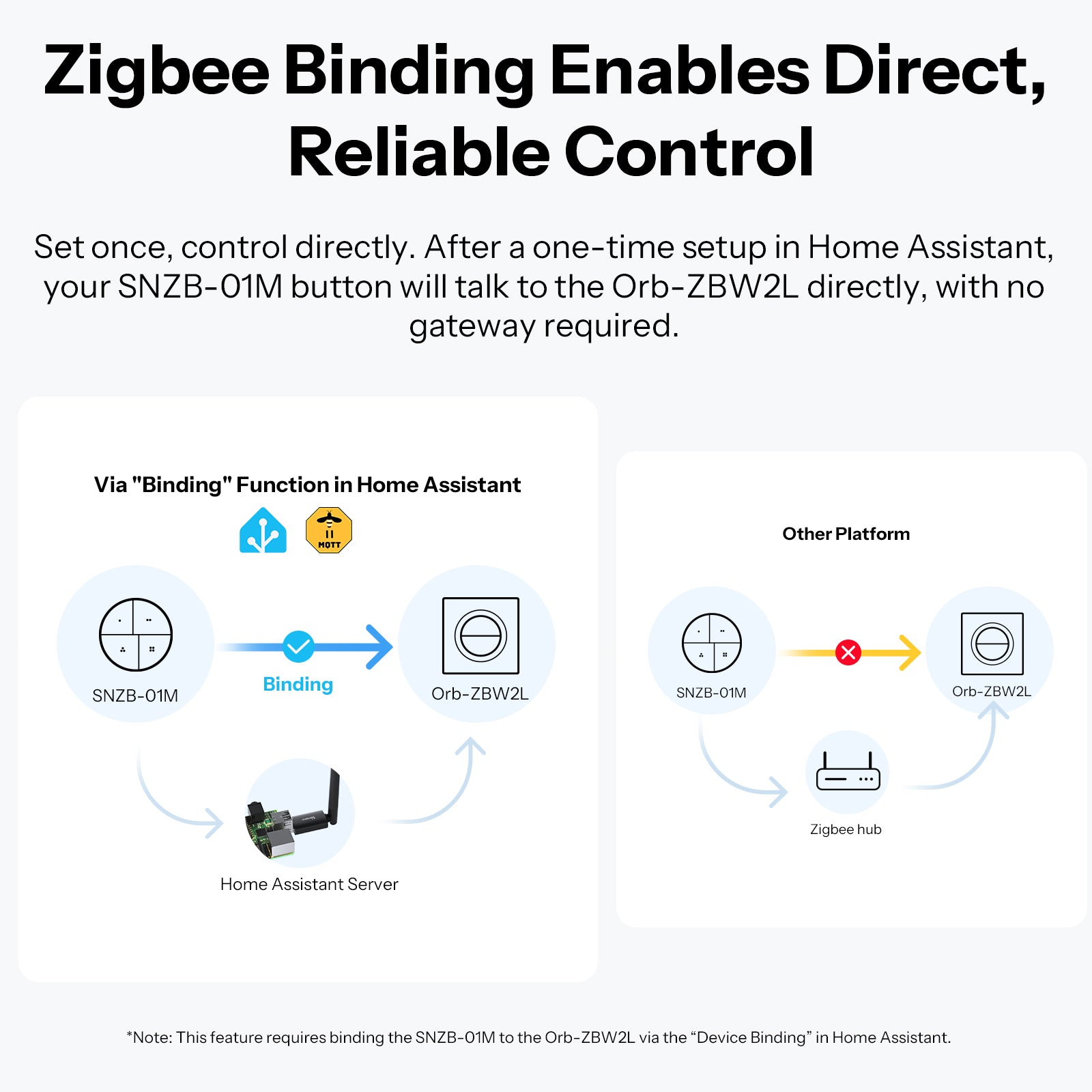

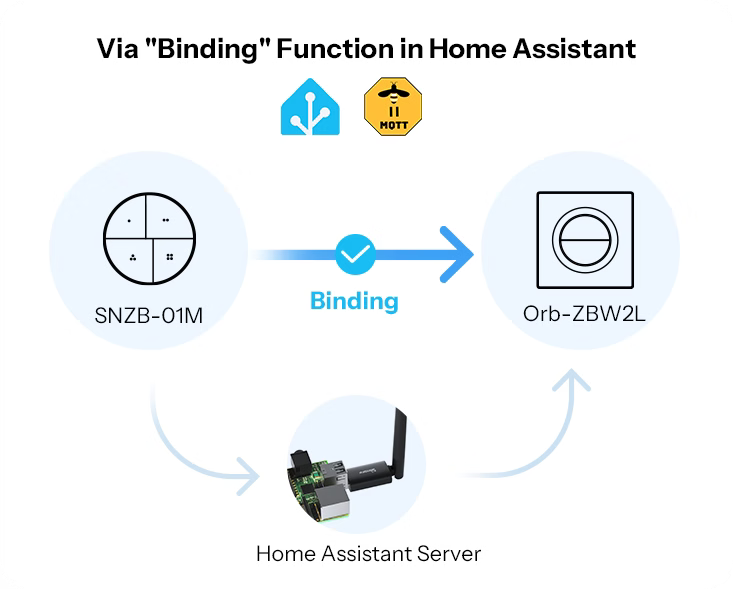

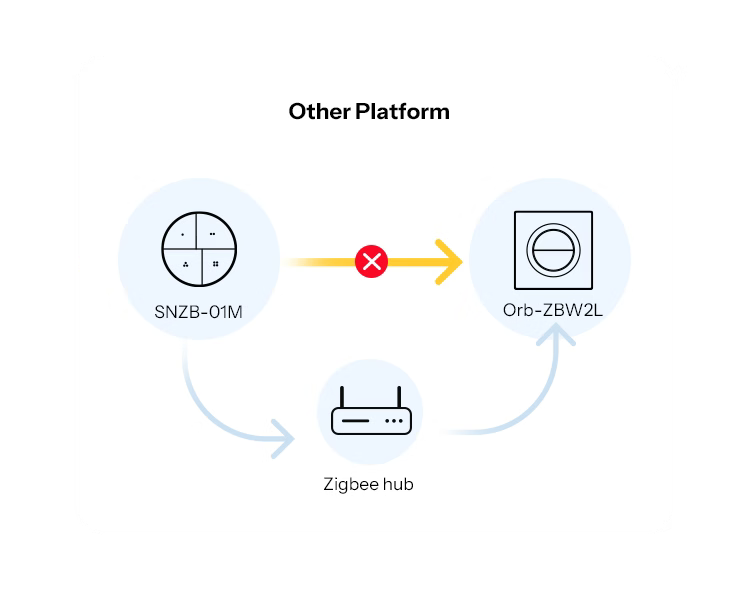

Zigbee Binding Enables Direct, Reliable Control
Set once, control directly. After a one-time setup in Home Assistant, your SNZB-01M button will talk to the Orb-ZBW2L directly, with no gateway required.

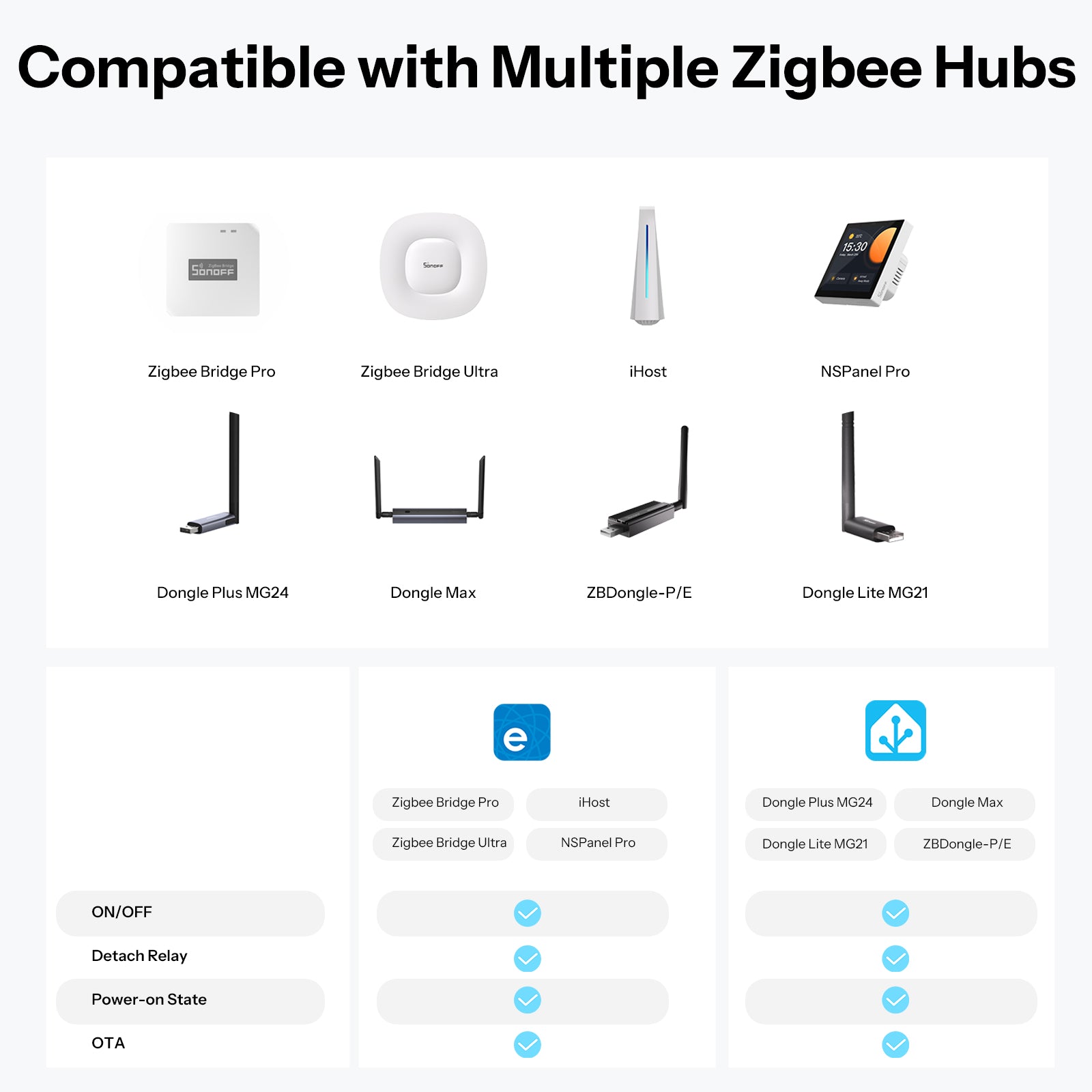

Compatible with Multiple Zigbee Hubs

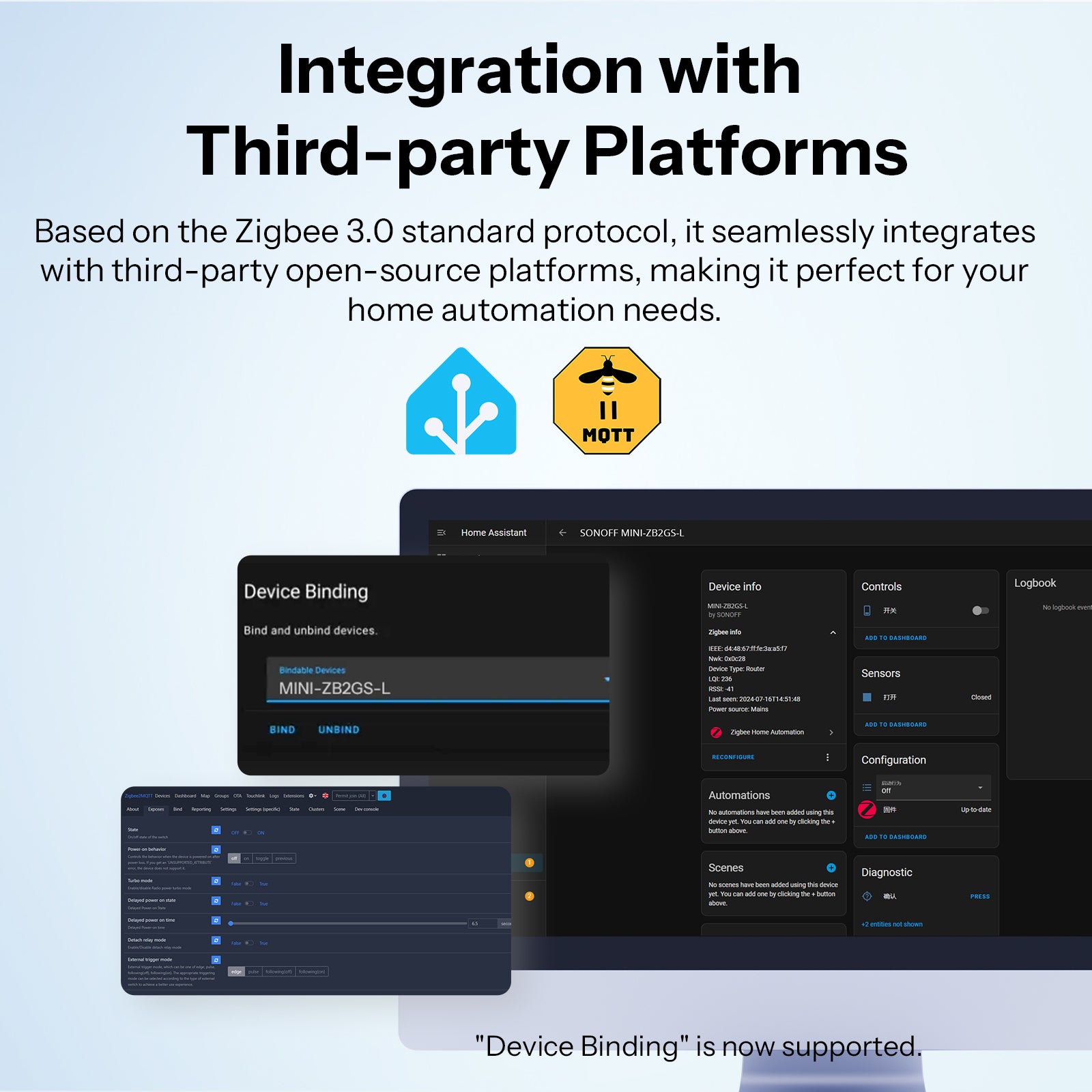

Integration with
Third-party Platforms
Based on the Zigbee 3.0 standard protocol, it seamlessly integrates with third-party open-source platforms, making it perfect for your home automation needs.

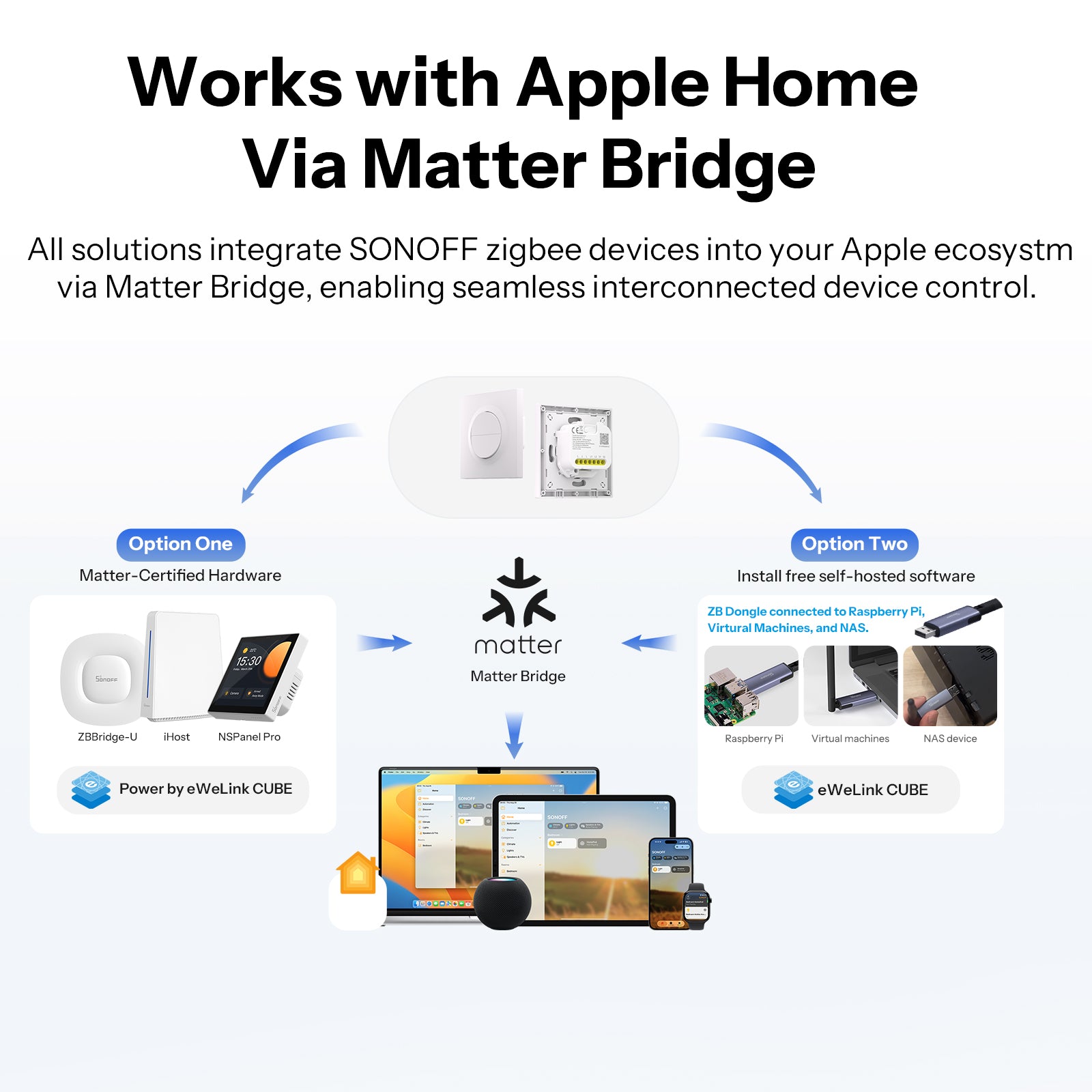

Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF zigbee devices into your Apple ecosystm via Matter Bridge, enabling seamless interconnected device control.
NOTE：Click ZBBridge-U Learn More | Click eWeLink CUBE Learn More

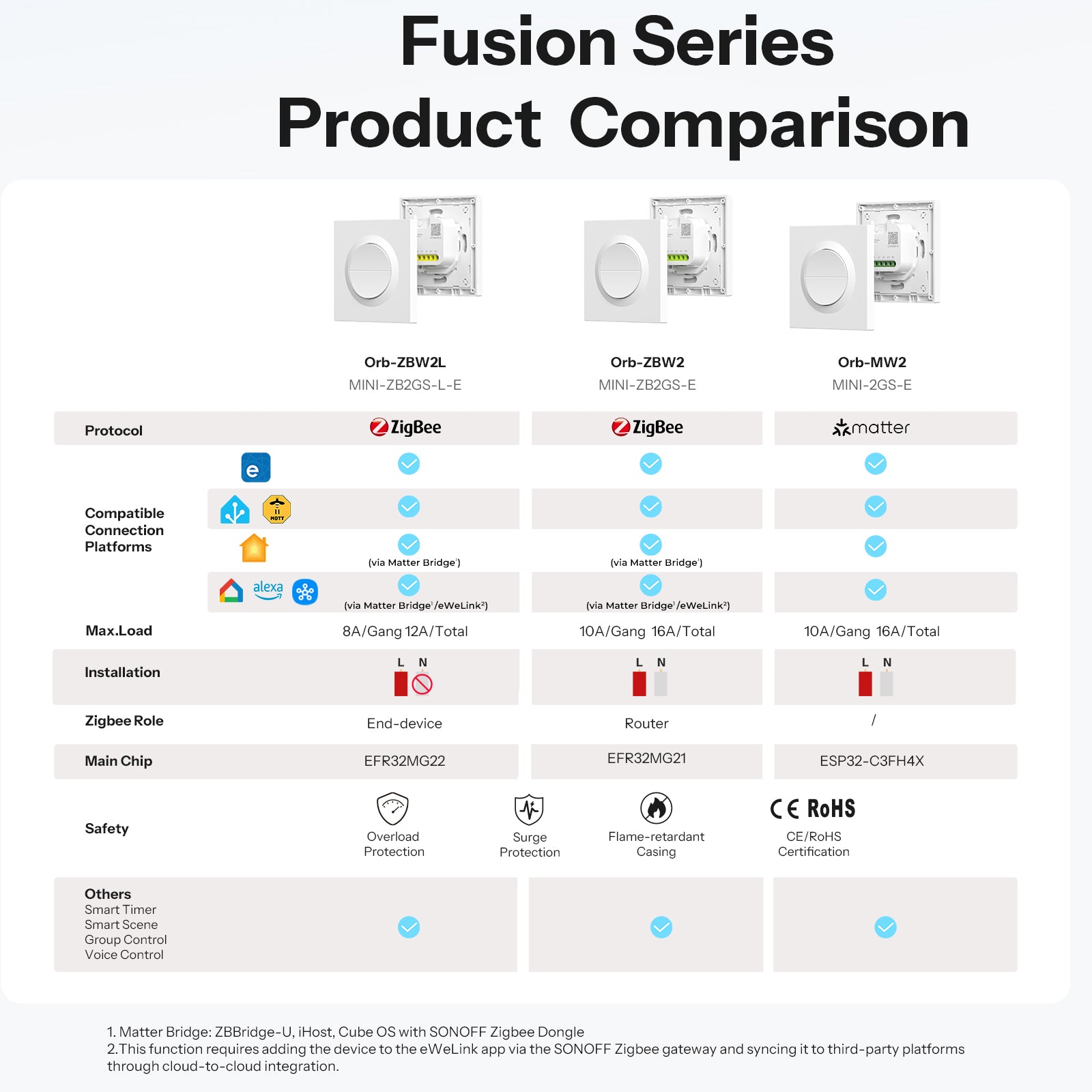

Fusion Series Product Comparison
Use Extension
Use 3D-printed SONOFF sensor accessories to upgrade your wall switch into a smart control center.
Tap to get the accessory's 3D models >
Pair With SONOFF SNZB-01P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02D
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02WD
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-03P
Use open-source 3D-printed accessories
to pair with sockets from other brands.
Pair With SONOFF SNZB-01P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02P
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02D
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-02WD
*The magnet is required when used with certain sensors.
Pair With SONOFF SNZB-03P
Use open-source 3D-printed accessories
to pair with sockets from other brands.
Applicable Mounting Box

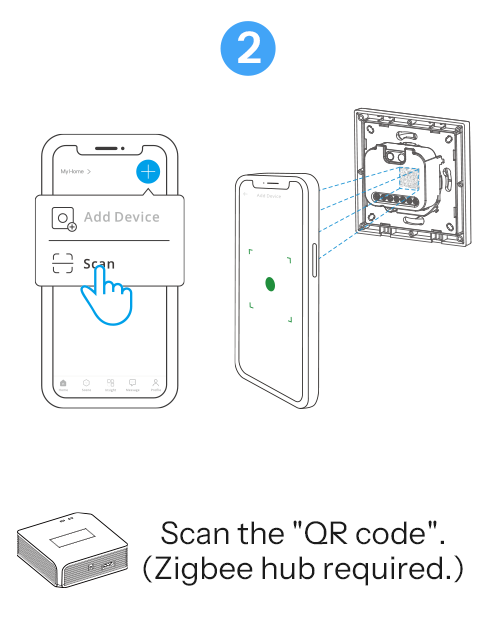

4 Steps to Use
Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!
*Requires the compatible SONOFF Zigbee hub.

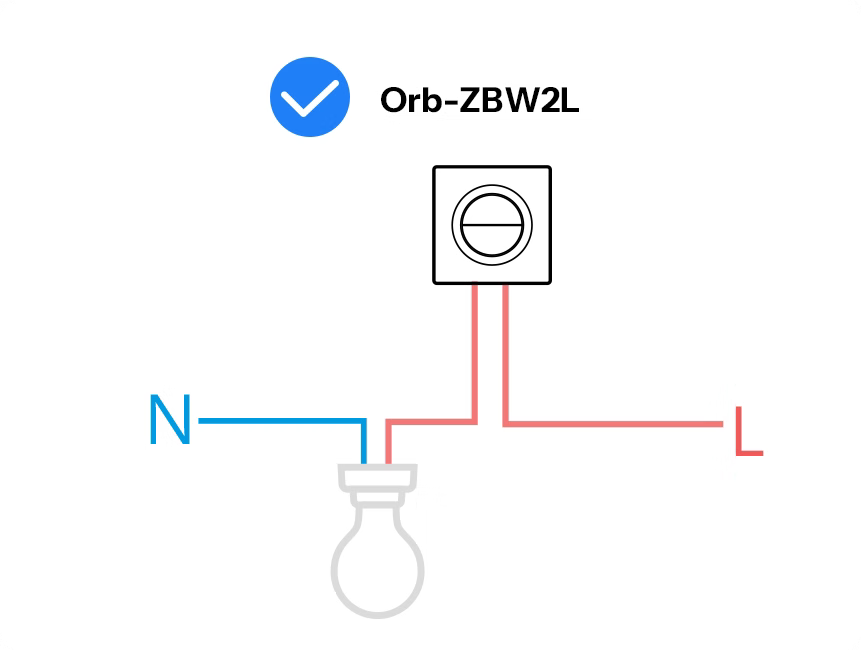

Wiring Instructions
Specification
Specs & User Manual
Orb-ZBW2L is a smart wall switch designed for easy installation in homes without a neutral wire, requiring no bypass on the load and minimizing retrofit complexity. Built on the Zigbee 3.0 protocol, it ensures stable, low-power connectivity and broad compatibility with mainstream Zigbee ecosystems. Its flexible dual-channel design supports up to 12A total load, with up to 8A per channel. With Zigbee Simple Setup and Zigbee Binding, Orb-ZBW2L enables fast pairing and reliable local control.
User Manual (PDF)Product name
Orb-ZBW2L
Product series
Fusion series
Model
MINI-ZB2GS-L-E
MCU
EFR32MG22
Rated specifications
110-240V~ 50/60Hz 8A/gang, Total 12A MAX Resistive load
LED
300W@240V/gang, 150W@100V/gang, total 600W@240V, 300W@100V
Product dimension
86*86*33.7mm
Working temperature
-10℃~40℃
Casing material
PC
Certification
CE/RoHS
FAQ
1. Does Orb-ZBW2L support installation without a neutral wire?
Yes. Orb-ZBW2L is designed to work without a neutral wire, making it ideal for retrofit installations in most standard wall mounting boxes.
2. What types of loads are supported?
Orb-ZBW2L is compatible with the following load types:
- Incandescent lamps
- LED lamps
- Halogen lamps (excluding MLV low-voltage halogen)
- Compact fluorescent lamps (CFL)
3. What is the maximum load capacity of Orb-ZBW2L?
It supports dual-channel control with a total maximum load of 12A (combined for two loads).
4. Do I need to connect a flash suppression module (anti-flicker device)?
No. Orb-ZBW2L does not support external flash suppression modules. Connecting one may damage the device.
5. What is Binding?
"Binding" is a technology that enables two or more Zigbee devices to establish direct communication, allowing interaction without requiring a gateway as an intermediary. The Binding feature must be configured within Home Assistant.
6. Can Orb-ZBW2L work as a Zigbee router/repeater (relay device)?
No. Orb-ZBW2L is designed as a Zigbee end device, not a router. To minimize power consumption and prevent light flickering, it uses a low-power design and does not relay Zigbee signals to other devices.
